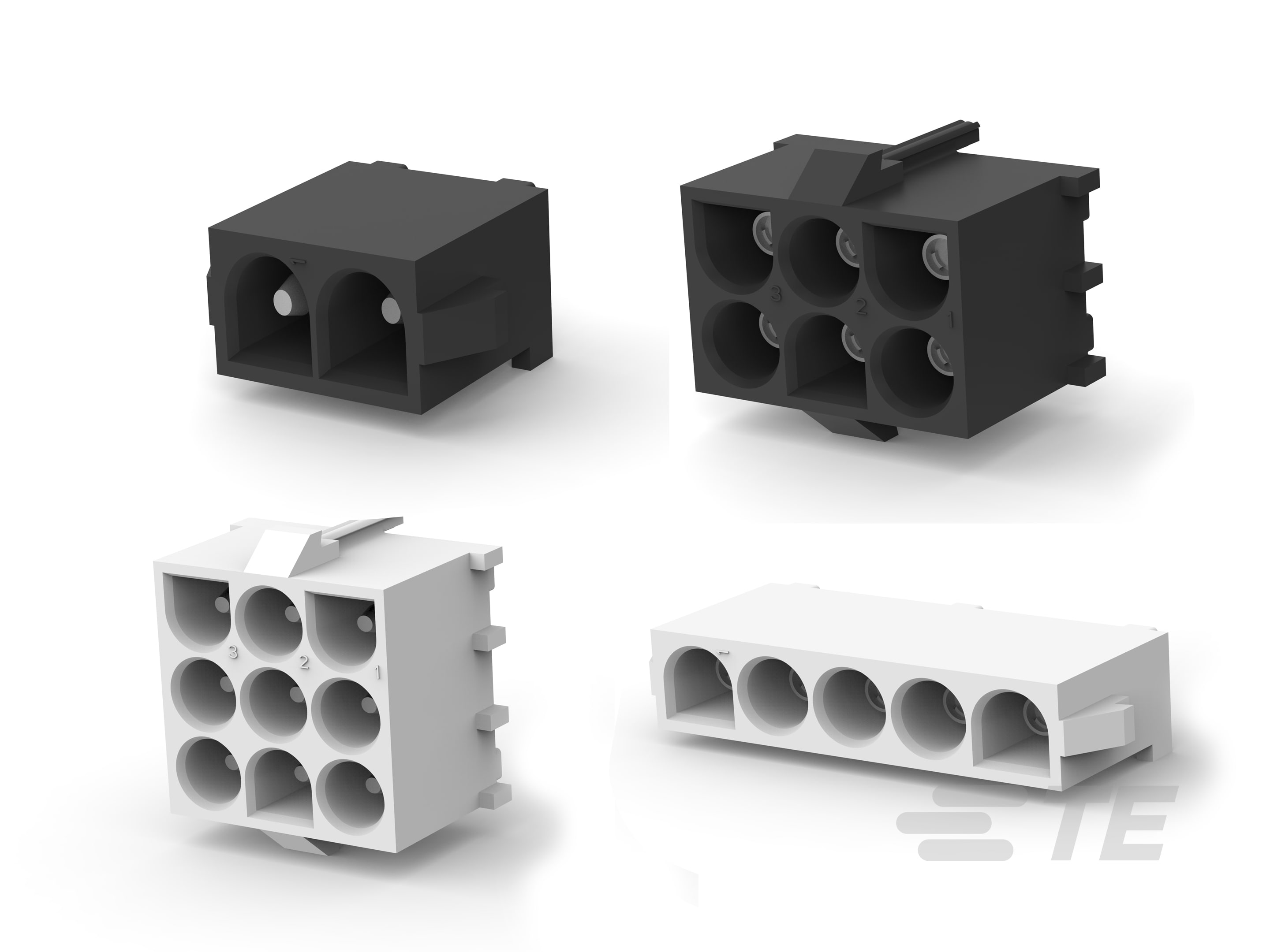

REFLOW UNIVERSAL MATE-N-LOK CONNECTORS

REFLOW UNIVERSAL MATE-N-LOK CONNECTORS-CAT-M414-UN385
  • MATE-N-LOK
|
  • Universal MATE-N-LOK
The reflow capable universal MATE-N-LOK product line has a thermoplastic housing designed to withstand high temperatures associated with reflow soldering. This allows for easy transition to a full reflow assembly process. Headers are designed with polarization features and a low contact mating force, allowing for easy mating. The standard .250” centerline allows for mating with TE’s existing universal MATE-N-LOK wire-to-board connectors.
More Less

Product Features

  • Rectangular Power Connector Type: Header

  • Connector System: Wire-to-Board

  • Centerline (Pitch)(mm): 6.35

  • Connector & Contact Terminates To: Printed Circuit Board

  • UL Flammability Rating: UL 94V-0

Available from

LADD Inc

Overview

Applications

  • Appliances
  • HVAC Equipment
  • Industrial Machinery
  • Power Supplies
  • Security Systems
  • Elevator/Escalator

Benefits

  • High temperature, reflow capable housing allows for transition to reflow PCB assembly
  • Polarization and positive locking for error resistant assembly
  • Pin and socket style contacts available
  • Low contact mating force
  • Four different colors are available for design flexibility

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Header Type  Fully Shrouded

  • Rectangular Power Connector Type  Header

  • Connector & Housing Type  Plug, Receptacle

  • Connector System  Wire-to-Board

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • Number of Positions  2, 3, 4, 5, 6, 9, 12, 15

  • PCB Mount Orientation  Vertical

  • Number of Power Positions  2, 3, 4, 5, 6, 9, 12, 15

  • Number of Rows  1, 2, 3, 4, 5

Electrical Characteristics

  • Operating Voltage (VAC) 600

Contact Features

  • Contact Mating Area Plating Material  Tin

  • Contact Current Rating (Max) (A) 12

  • Contact Type  Pin, Socket

  • PCB Contact Termination Area Plating Material  Pre-Tin

  • Contact Mating Area Plating Material Thickness (µm) 1.18

Termination Features

  • Termination Method to Printed Circuit Board  Through Hole - Solder

Housing Features

  • Centerline (Pitch)  6.35 mm [ .25 in ]

  • Housing Color  Black, White

  • Housing Material  LCP GF30 (Liquid Crystal Polymer)

Dimensions

  • Row-to-Row Spacing  6.35 mm [ .25 in ]

Usage Conditions

  • Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

Operation/Application

  • Circuit Application  Power

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Glow Wire Rating  GWT 750°C (Without Flame)

  • Glow Wire Material Rating  Material with GWFI 850°C

Packaging Features

  • Packaging Method  Tube

Reference Number

  • TE Internal Number CAT-M414-UN385
