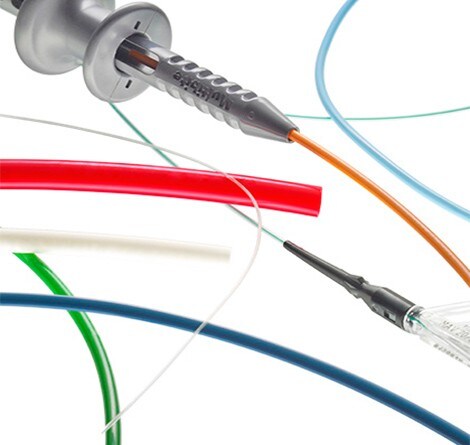

Heat Shrink Tubing

Protect from abrasion, corrosion, and noise

Our heat shrink tubing provides electrical insulation, mechanical protection, environmental sealing, and strain relief, for applications such as back-end connector sealing, breakouts, and connector-to-cable transitions. It is a solid alternative to taping, molding or potting. When heated, it conforms to the size and shape of the substrate beneath, enabling quick and easy installation. Its high expansion ratio makes it possible to repair most damaged cable jackets without removing connectors. Available in a wide range of materials, colors, and sizes, heat shrink tubing is delivered in forms such as spools, 1.2m lengths, and cut pieces. Clear types permit inspection of covered components and offer excellent transmittance of light.

Product Features

Specifications for Heat Shrink Tubing
  • Spool lengths, nonstandard cut lengths, expanded/recovered I.D's
  • Multiple products are offered in flame-retardant (FR) versions
  • Meet AS23053 and MIL-PRF-46846 standards - Single Wall
  • Comply with AS23053 standards - Dual Wall, Heavy Duty, Harnessing, Special Purpose
  • Most are UL recognized/CSA certified
  • SPC inspection/data on cut pieces
  • Custom specs and tolerances
  • Various materials meet specific requirements

8:1

Ultra-high shrink rate tubing offers heat shrink ratios up to 8:1.

RoHS

RoHS-compliant products for automotive applications and consumer goods.

260°C

Survives high-temperature excursion up to 260°C.

Frequently Asked Questions

Q: What is the maximum operating temperature of your application?

A: Our RW-200, RW-200-E, SRFR, and RT555 series tubing products have a rated operating temperature to 200°C.

Q: Do you need a flame retardant solution for your application?

A: Our Versafit, ES2000, ATUM and FL2500 series are excellent choices when looking for flame retardant properties.

READ MORE ABOUT HEAT SHRINK TUBING



Flexible, Rigid, Elastomers, and Fluoropolymers

 Category   Type   Product Names
Single Wall Very Flexible  LSTT, VERSAFIT (V2, 3X, V4)
Single Wall Flexible BRST, DCPT, RP-4800, CGPE-105, RNF-100, TUGA, CGPT, RNF-3000
Single Wall Semirigid  CRN, RT-3
Dual Wall Semi-Flexible  ATUM, DWP-125, HTAT
Dual Wall Flexible CGAT, PTCM, TAT-125, DWTC, RPPM
Dual Wall Semirigid  DSPL, ES2000, SCL, ES1000, FL2500, SCT, RBK, QSZH
Harnessing Elastomers DR-25, NTFR, RW-200, RW-200-E, SFR, SRFR, URHR
Harnessing Fluoropolymers RT555, RT-770, RT-780, RT-790



Tubing Comparison

Single Wall vs Dual Wall

TE's single wall tubing provides superior insulation, strain relief, and protection against mechanical damage and abrasion. Benefits include:

  • Reliably consistent dimensions and physical properties
  • Meets SAE-AMS-DTL-23053, MIL-PRF-46846, and VG95343 standards
  • Some products are UL recognized / CSA certified



TE's dual wall tubing seals and protects against the ingress of dust and fluids. TE's Raychem dual wall tubing uses an adhesive lining that melts and flows during installation, creating a moisture-resistant protective barrier. Benefits include:

  • Controlled amounts of adhesive and consistent results
  • Compliance with SAE-AMS-DTL-23053
  • Some products have UL recognition / CSA certification
  • Selected tubings are type-approved by the American Bureau of Shipping (ABS) and Lloyd’s Registry of Shipping


Uses:

Insulate, Protect, and Identify
  • Shielded splice protection
  • Battery terminal identification and sealing
  • Mechanical protection for hoses
  • Insulation and strain relief for fine gauge wire and fiber optic cables
  • Noise reduction for pipes
  • Moisture, fungus and weather resistant for outdoor applications
  • Thermal insulation of substrates, pipes, hoses and cables
  • Color code wiring and circuits
  • Insulate and protect components and wiring
  • Mechanical protection for lighting components
  • Bundle wires together for protection and ease of assembly
