High Performance Interconnects (HPI)

High Performance Interconnects (HPI)

The wire-to-board HPI connector system is available in 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 3.96mm centerline pitch.

High performance interconnects offer vertical and horizontal (right angle) connector mounting for versatility, and the square-peg technology enables this product to mate with many other like products in the industry. The single-row and dual-row post headers are available in various colors to allow the customer to color code their systems. The single-row connectors range from 2-16 positions, while the dual-row connectors are available in 10, 20, 30, and 40 positions.

2-16

Range of single row positions

10-40

Range of double row positions

Features

  • High performance and high reliability
  • Square-peg style enables interchangeability with competitors
  • Header + COSI (crimp on snap in) connectors
  • Cross-use test reports available

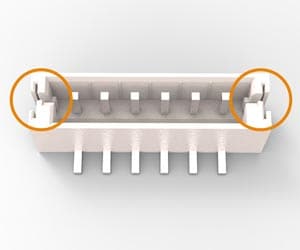

  • Polarized
  • Positive latching with audible click feedback when mating
  • Different colors availbe for system color coding
  • AWG 30-24
Desktop Monitors
LCD monitors
Portable Music Player
Small electronics equipment
Business Equipment
Business equipment

Applications

  • Business equipment
  • Industrial machines
  • Wire-to-board applications
  • Plasma display panels
  • LCD monitors
  • Small electronics equipment
  • Anywhere signals or power is routed

Frequently Asked Questions

High Performance Interconnect (HPI) Connectors

Question Answer
What gauge wire (AWG) will you be using? TE’s HPI product accepts 22-32 AWG discrete wire. Remember that the higher the AWG measurement number, the smaller the discrete wire. For example, 32 AWG is smaller than 22 AWG will likely have less current carrying capacity.
Are you transferring signal or lower power throughout your device?

HPI products are simple interconnect solutions that can be used to transfer signal or lower power in multiple applications across many industries.
Does your application have a fan, motor, switch, display, light or any other simple device?

HPI product may be a good solution to control these type of ancillary items.
Does your application require a locking feature to strengthen the mating connection between the plug assembly and receptacle?

If your application requires a secure mating retention feature, TE’s 2.0mm HPI product line offers an external locking feature to improve the reliability of the interconnect system.
What are the technical requirements of your application?

It is imperative that you ask your customer the current and voltage requirements of their application. Current, which is expressed in amps, is usually the driving factor when selecting a small pitch wire-to-board product. Other information that you should consider include operating temperature, PCB real estate, profile height limitations, material restrictions, etc.
What tooling is available to apply TE’s wire-to-board products?

TE’s tooling divisions offer a wide range of hand tools, semi-automatic, and automatic tools. Please visit Application Tooling to determine the application tooling that meets your needs.
  • Question
  • What gauge wire (AWG) will you be using?
  • Answer TE’s HPI product accepts 22-32 AWG discrete wire. Remember that the higher the AWG measurement number, the smaller the discrete wire. For example, 32 AWG is smaller than 22 AWG will likely have less current carrying capacity.
  • Are you transferring signal or lower power throughout your device?
  • Answer HPI products are simple interconnect solutions that can be used to transfer signal or lower power in multiple applications across many industries.
  • Does your application have a fan, motor, switch, display, light or any other simple device?
  • Answer HPI product may be a good solution to control these type of ancillary items.
  • Does your application require a locking feature to strengthen the mating connection between the plug assembly and receptacle?
  • Answer If your application requires a secure mating retention feature, TE’s 2.0mm HPI product line offers an external locking feature to improve the reliability of the interconnect system.
  • What are the technical requirements of your application?
  • Answer It is imperative that you ask your customer the current and voltage requirements of their application. Current, which is expressed in amps, is usually the driving factor when selecting a small pitch wire-to-board product. Other information that you should consider include operating temperature, PCB real estate, profile height limitations, material restrictions, etc.
  • What tooling is available to apply TE’s wire-to-board products?
  • Answer TE’s tooling divisions offer a wide range of hand tools, semi-automatic, and automatic tools. Please visit Application Tooling to determine the application tooling that meets your needs.
