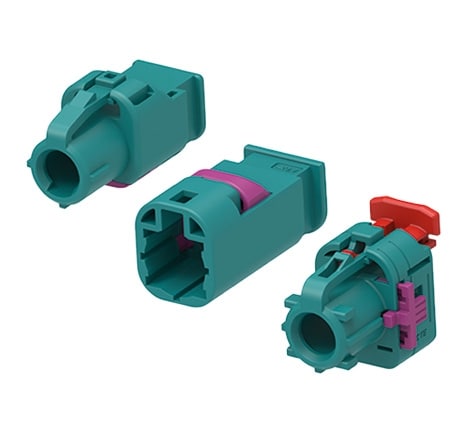

High Speed Data (HSD) Connections

High Speed Data (HSD) Connections

Information and entertainment at every turn. TE offers high-performance, high-speed connectors for vehicle infotainment modules, as well as other applications.

All the Road’s a Stage. TE's high-speed connectors provide high-speed connectivity solutions for vehicle infotainment modules, cameras, consumer ports and display units. The connector product portfolio can be used in combination with protocols 1 and 4 channel LVDS, IEEE 1394, GVIF, eMOST and USB 2.0. The high-speed connectors are compatible with the planned German AK HSD interface, USCAR 30 (Mini USB) and specified shielded connection systems. The connectors can be used with sealed applications.

Applications

  • Camera connection
  • Combi instrument connection
  • Digital tuner video/audio
  • Display connection
  • Rear seat entertainment
  • USB interface connection
  • Telematics connection

Features

  • Product portfolio compatible to the AK German interface and USCAR requirements
  • Suitable for sealed applications
  • HSD product portfolio can be used in combination with a variety of protocols
  • 1 and 4 Channel Low Voltage Differential Signaling (LVDS)
  • Gigabit Video Interface (GVIF)
  • USB
  • IEEE 1394
  • Ethernet protocols



USCAR is a trademark

Mechanical

  • Wire cross section: 0,14 – 0,22mm²
  • Mating cycles: min. 25
  • Coding efficiency: min. 80 N
  • Retention force connector lock: min. 110 N

Electrical

  • Return loss: ≤ -20 dB to 1 GHz ≤ -17 dB to 2 GHz
  • Insertion loss: ≤ 0,1 dB to 1 GHz
  • Contact current: ≤ 2,5 A DC
  • Differential shielding effectiveness (coupler): ≥ 75 dB up to 1 GHz, ≥ 65 dB up to 2 GHz
  • Skew (between signal contacts): 180° connectors: ≤ 5 ps/m, 90° connectors: ≤ 25 ps/m

Product Specifications

  • 108-94331 (HSD Headers)
  • 108-94333 (HSD 90° Connector)
  • 108-94334 (HSD180° Connector)
  • 108-94434 (HSD Hybrid Connector)
  • 108-94433 (HSD Dual Connector)
  • 108-94106 (HSD RF System)

Application Specifications

  • 114-94058 (HSD 180° Connector)
  • 114-94117 (HSD 90° Connector)
  • 114-18867 (HSD Header)

Standards

  • IDB 1394 automotive specification
  • USCAR 2, REV 5
  • LV214
  • RoHS compliant
Related Materials

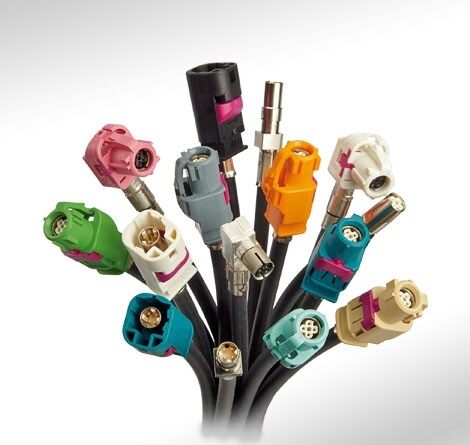

High Speed Data (HSD) Connections
