Free Height Stacking Connectors

Stacked application Design

These versatile connectors are useful for downsizing applications that require parallel stacked product circuit boards (PCBs). They provide a range of position sizes from 40 - 440 positions in contact pitches of .5, .6, .8, and 1.0mm, and by mating various combinations of vertical plug and receptacle housing heights, board-to-board stack heights from 4-20mm can be achieved in 1mm increments.

Product Features

Free Height Connectors
  • Stack heights from 4mm to 20mm
  • 40 - 440 positions
  • Polarized housings to prevent mis-mating
  • Locating posts for proper positioning
  • Tube, tray, or tape and reel packaging options
0.5mm Free Height Connectors

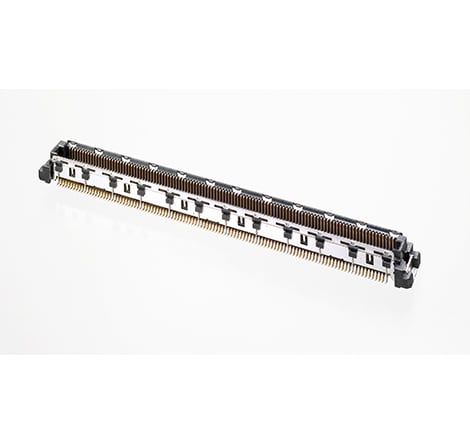

0.5mm free height connectors
0.6mm Free Height Connectors

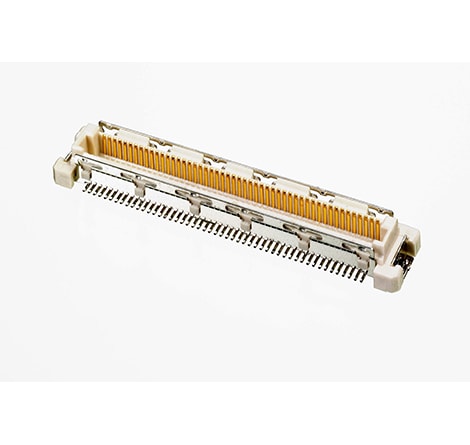

0.6mm free height connectors
0.8mm Free Height Connectors

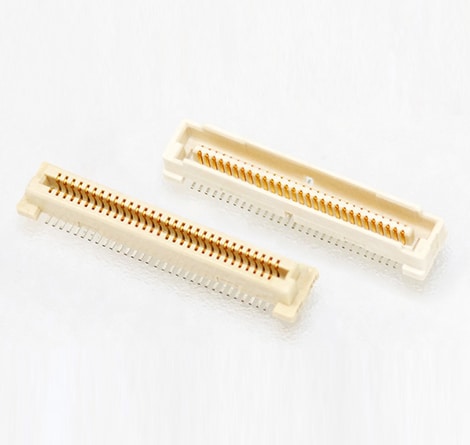

0.8mm free height connectors
1mm Free Height (IEEE 1386) Connectors

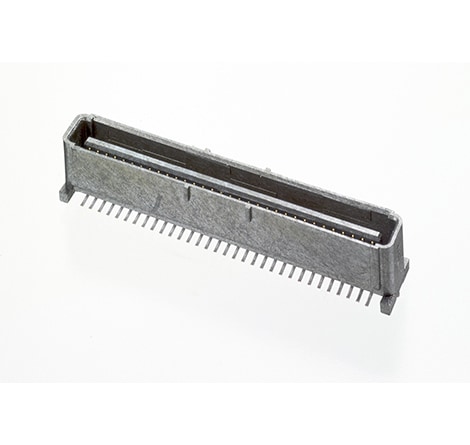

1mm free height (IEEE 1386) connectors


Thru-Hole Solder
Thru-hole solder
Surface Mount Lead
Surface mount lead
Surface Mount BGA
Surface mount BGA
Thru-Hole Press-Fit
Thru-hole press-fit

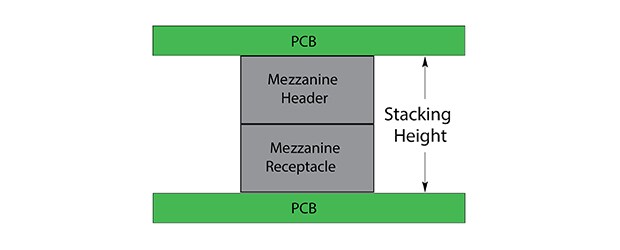

How to measure for a mezzanine connector.
How to measure for a mezzanine connector.
  1. Slim Solutions (English)

To meet the demand for slimmer consumer devices, we can custom design the connectors you need. We are ready to help you to reduce connector height up to 30 percent, enabling the super thin consumer devices of today and tomorrow.
