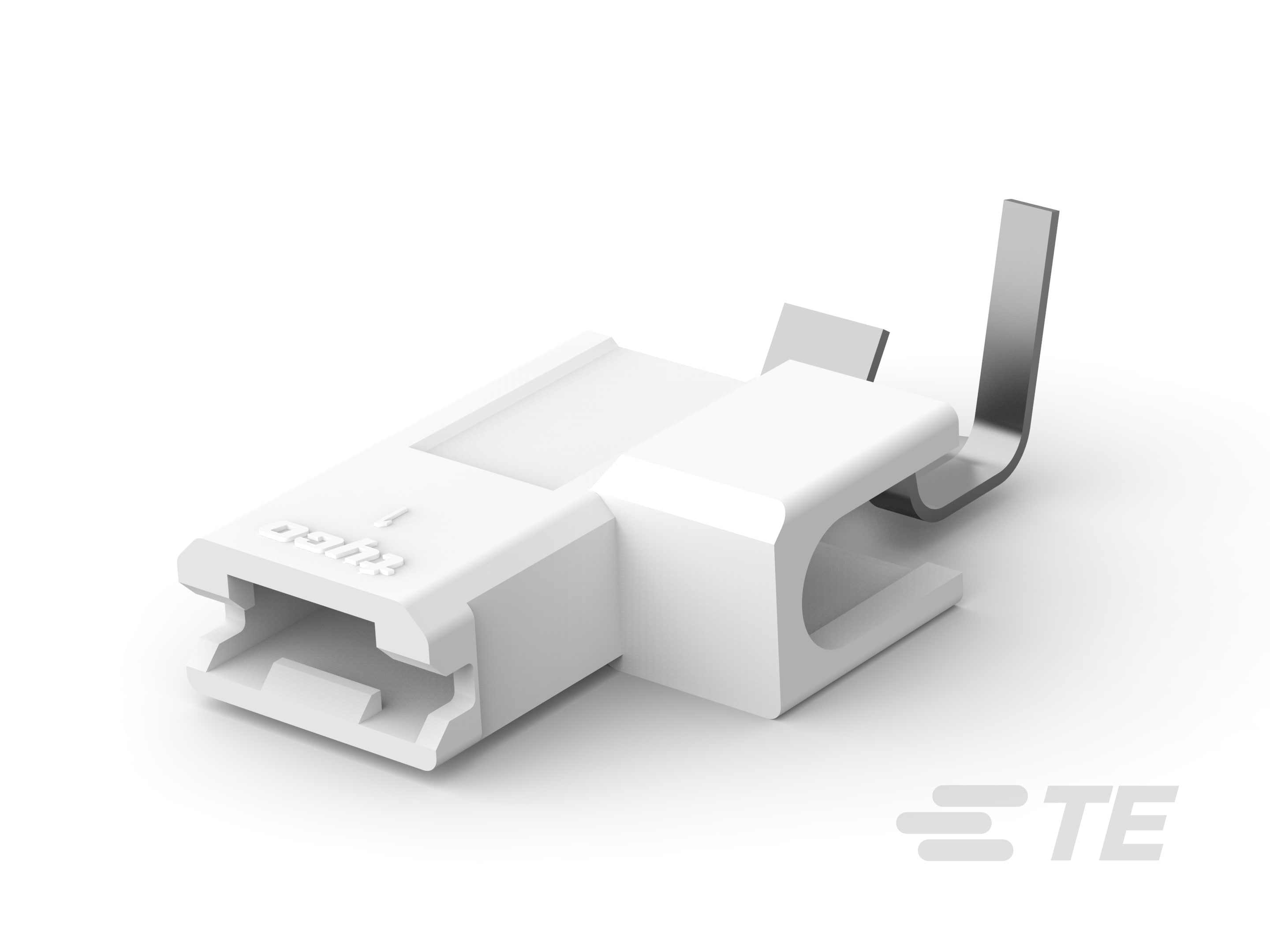

ULTRA POD: Flag, Receptacle Assembly, Tin Plated, .250 inch

ULTRA POD: Flag, Receptacle Assembly, Tin Plated, .250 inch-CAT-UL8-25021
Ultra pod quick disconnect receptacle assembly mates with a tab of .250 inch width and contacts are made of tin plated Brass. These parts have flag terminal orientation and available in wire size ranges of 22 – 14 AWG.
More Less

Product Features

  • Quick Disconnect Terminal Type: Receptacle

  • Mating Tab Width(mm): 6.35

  • Terminal Orientation: Flag

  • Contact Base Material: Brass

  • Terminal Plating Material: Tin

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Insertion Force  Low, Normal

Configuration Features

  • Compatible With Wire & Cable Type  Discrete Wire

  • Connection Capacity  Single

Electrical Characteristics

Body Features

  • Insulation Material  Nylon

Contact Features

  • Quick Disconnect Terminal Type  Receptacle

  • Mating Tab Width  6.35 mm [ .25 in ]

  • Mating Tab Thickness  .81 mm [ .032 in ]

  • Terminal Orientation  Flag

  • Contact Base Material  Brass

  • Terminal Plating Material  Tin

  • Crimp Type  F-Crimp, Tab-Lok

  • Barrel Type  Open

Termination Features

  • Product Terminates To  Wire & Cable

Mechanical Attachment

  • Mating Retention Type  Dimple

  • Wire Insulation Support  With

Dimensions

  • Compatible Insulation Diameter Range (mm) 1.27 – 2.54, 2.79 – 4.06

  • Compatible Insulation Diameter Range (in) .05 – .1, .11 – .16

  • Product Length (mm) 22.99, 23.03

  • Product Length (in) .905

  • Terminal Material Thickness  .41 mm [ .016 in ]

  • Wire Size (AWG) 18 – 14, 20, 22 – 18

  • Wire Size (mm²) .32 – .82, .51, .82 – 2.08

Usage Conditions

  • Insulation Option  Fully Insulated

  • Operating Temperature Range  -40 – 150 °C [ -40 – 302 °F ]

Industry Standards

  • UL Flammability Rating  UL 94V-0, UL 94V-2

  • Compatible With Approved Standards Products  UL E66717

  • Compatible With Agency/Standards Products  CSA, UL

Packaging Features

  • Packaging Quantity  1800, 7200

  • Packaging Method  Strip/Reel

Other

  • Barrel Color  Black, Natural

Reference Number

  • TE Internal Number CAT-UL8-25021
