UV Resistant Sleeves, UV-SCE

RAYCHEM UV-SCE

Ultra-violet, light resistant heat shrink marker sleeves designed for the identification of wires and cables where some exposure to UV light is possible.

More Less

Datasheet |
Digital Datasheet|

Product Features

Printable Tubing Type: Ladder
Printable Tubing Grade: UV Resistant
Markers per Sleeve: 1
Product Length(mm): 50
Operating Temperature Range(°C): -55 – 200

Available from

Product	TE Part #	Documents	Shrink Ratio	Primary Product Color	Expanded Inside Diameter (Min)	Recovered Inside Diameter (Max)	Compatible Cable Diameter Range
UV-SCE-1K-1/4-2.0-9 Buy on te.com	EC6673-000	Product Drawing	2:1	White	6.4 mm	3.1 mm	3.4 – 6. mm
UV-SCE-1K-3/32-2.0-4 Buy on te.com	EC6660-000	Product Drawing	2:1	Yellow	2.4 mm	.7 mm	.8 – 1.9 mm
UV-SCE-1K-3/8-2.0-4 Buy on te.com	EC6676-000	Product Drawing	2:1	Yellow	9.5 mm	4.7 mm	5.3 – 8.1 mm
UV-SCE-1K-3/8-2.0-9	EC6677-000	Product Drawing	2:1	White	9.5 mm	4.7 mm	5.3 – 8.1 mm
UV-SCE-1/8-2.0-9	EC6633-000	Product Drawing	2:1	White	3.2 mm	1.58 mm	1.75 – 2.66 mm
UV-SCE-1-1/2-2.0-4	EC6656-000	Product Drawing	2:1	Yellow	19 mm	19.1 mm	20.95 – 34 mm
UV-SCE-1-2.0-9	EC6653-000	Product Drawing	2:1	White	25.4 mm	12.8 mm	13.3 – 23 mm
UV-SCE-1/2-2.0-9	EC6645-000	Product Drawing	2:1	White	12.7 mm	6.35 mm	6.6 – 11.4 mm
UV-SCE-1/4-2.0-9	EC6637-000	Product Drawing	2:1	White	6.4 mm	3.18 mm	3.4 – 6 mm
UV-SCE-1K-1-1/2-2.0-4	EC6692-000	Product Drawing	2:1	Yellow	38.1 mm	19 mm	20.9 – 34. mm
UV-SCE-1K-1-1/2-2.0-9	EC6693-000	Product Drawing	2:1	White	38.1 mm	19 mm	20.9 – 34. mm
UV-SCE-1K-1-2.0-4	EC6688-000	Product Drawing	2:1	Yellow	25.4 mm	12.7 mm	13.3 – 23. mm
UV-SCE-1K-1-2.0-9	EC6689-000	Product Drawing	2:1	White	25.4 mm	12.7 mm	13.3 – 23. mm
UV-SCE-1K-1/2-2.0-4	EC6680-000	Product Drawing	2:1	Yellow	12.7 mm	6.3 mm	6.6 – 11.4 mm
UV-SCE-1K-1/2-2.0-9	EC6681-000	Product Drawing	2:1	White	12.7 mm	6.3 mm	6.6 – 11.4 mm
UV-SCE-1K-1/4-2.0-4	EC6672-000	Product Drawing	2:1	Yellow	6.4 mm	3.1 mm	3.4 – 6. mm
UV-SCE-1K-1/8-2.0-4	EC6664-000	Product Drawing	2:1	Yellow	3.2 mm	1.5 mm	1.7 – 2.6 mm
UV-SCE-1K-1/8-2.0-9	EC6665-000	Product Drawing	2:1	White	3.2 mm	1.5 mm	1.7 – 2.6 mm
UV-SCE-1K-3/16-2.0-4	EC6668-000	Product Drawing	2:1	Yellow	4.8 mm	2.3 mm	2.5 – 4. mm
UV-SCE-1K-3/16-2.0-9	EC6669-000	Product Drawing	2:1	White	4.8 mm	2.3 mm	2.5 – 4. mm
UV-SCE-1K-3/32-2.0-9	EC6661-000	Product Drawing	2:1	White	2.4 mm	.7 mm	.8 – 1.9 mm
UV-SCE-1K-3/4-2.0-4	EC6684-000	Product Drawing	2:1	Yellow	18 mm	9 mm	9.9 – 15.3 mm
UV-SCE-1K-3/4-2.0-9	EC6685-000	Product Drawing	2:1	White	18 mm	9 mm	9.9 – 15.3 mm
UV-SCE-3/32-2.0-4	EC6623-000	Product Drawing	3:1	Yellow	2.4 mm	.79 mm	.81 – 1.9 mm
UV-SCE-3/4-2.0-4	EC6648-000	Product Drawing	2:1	Yellow	19 mm	9.53 mm	9.9 – 15.3 mm
UV-SCE-3/8-2.0-4	EC6640-000	Product Drawing	2:1	Yellow	9.5 mm	4.75 mm	5.3 – 8.1 mm

Overview

UV-SCE ultra-violet light resistant heat shrink identification marker sleeves are designed for the identification of wires and cables where some exposure to UV light is possible. Manufactured using a specially developed radiation cross-linked, UV Resistant material, UV-SCE marker sleeves are designed specifically to allow customers identify wires and cable in outdoor

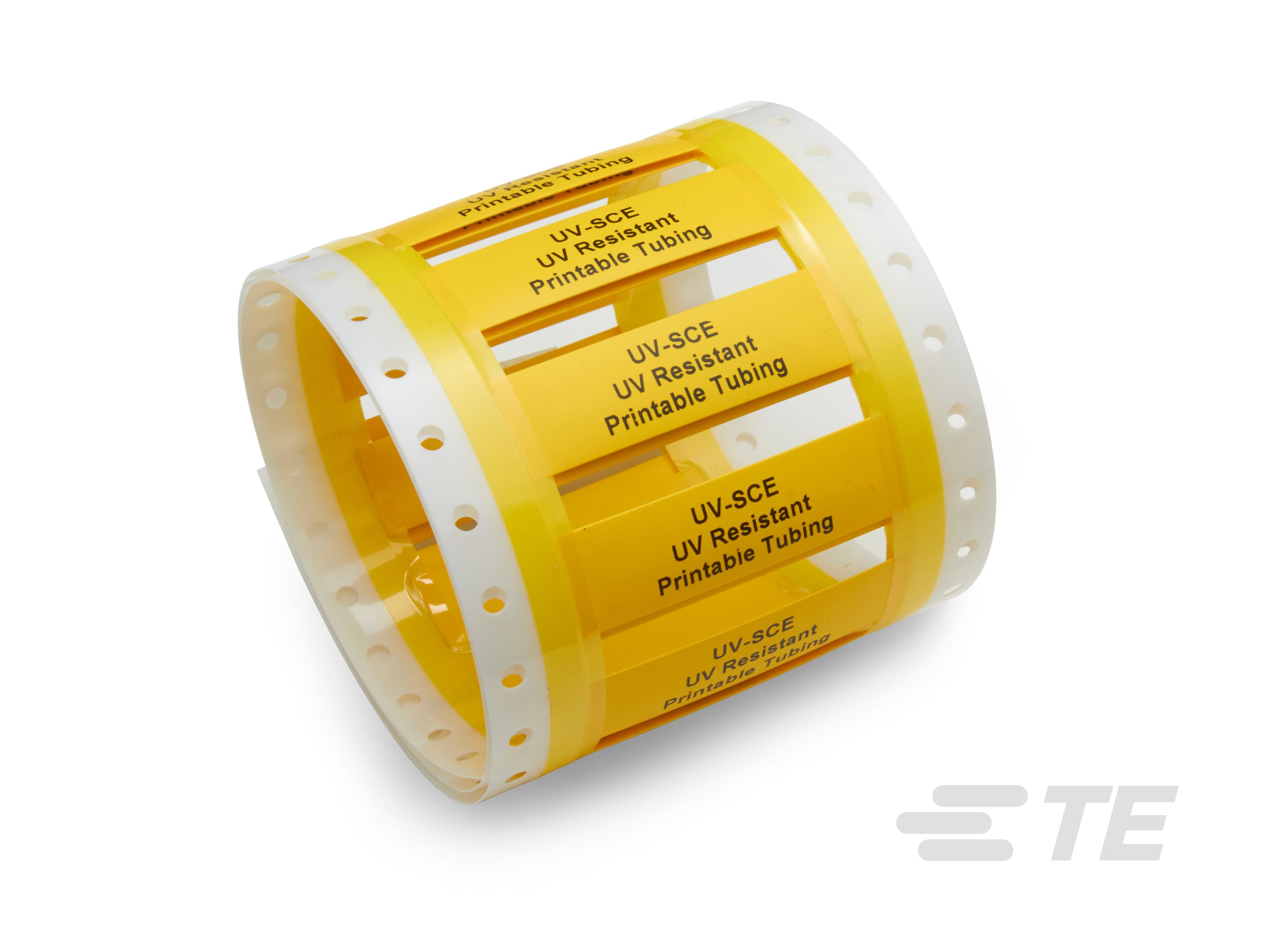

environments where some exposure to UV light is possible. Supplied in a “ladder format”, sleeves are held horizontally between two hole-punched polyester strips and offers ease of printing and kitting.

Features and benefits

UV Resistant
Good Temperature resistance
Non-flame propagating
Resistant to key industrial fluids
2:1 shrink ratio

Operating temperature range

-55^oC to 200^oC (-67^oF to 392^oF)

Specifications and approvals

BS EN 60068-2-11
EN45545-2 R23 HL1
EN45545-2 R24 HL3
NFPA130
NFT N46-019
IEC 60068-2-5

Recommended hardware and software

Printer: T200-IDENT / TE3112 / TE3124 / T6112DS
Ribbon: T300-UV-SCE-RIBBON
Software: WinTotal v6

For more information

Technical Datasheet: TTDS-255
Product Specification Sheet: RW-2534

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Printable Tubing Type Ladder
Printable Tubing Grade UV Resistant

Body Features

Shrink Ratio 2:1, 3:1
Primary Product Color White, Yellow
Markers per Sleeve 1

Dimensions

Product Length 50 mm [ 2 in ]
Expanded Inside Diameter (Min) (mm) 2.4, 3.2, 4.8, 6.4, 9.5, 12.7, 18, 19, 25.4, 38.1
Expanded Inside Diameter (Min) (in) .093, .094, .125, .187, .25, .375, .5, .709, .75, 1, 1.5
Recovered Inside Diameter (Max) (mm) .7, .79, 1.5, 1.58, 2.3, 3.1, 3.18, 4.7, 4.75, 6.3, 6.35, 9, 9.53, 12.7, 12.8, 19, 19.1
Recovered Inside Diameter (Max) (in) .031, .062, .063, .093, .125, .187, .25, .354, .375, .5, .75
Compatible Cable Diameter Range (mm) .8 – 1.9, .81 – 1.9, 1.7 – 2.6, 1.75 – 2.66, 2.5 – 4., 3.4 – 6, 3.4 – 6., 5.3 – 8.1, 6.6 – 11.4, 9.9 – 15.3, 13.3 – 23, 13.3 – 23., 20.9 – 34., 20.95 – 34
Compatible Cable Diameter Range (in) .032 – .075, .069 – .105, .1 – .16, .134 – .236, .209 – .319, .26 – .449, .39 – .602, .524 – .906, .825 – 1.339

Usage Conditions

Operating Temperature Range -55 – 200 °C [ -67 – 392 °F ]

Printer/Label Features

Printer Technology Thermal Transfer

Packaging Features

Packaging Quantity 250, 1000

Reference Number

TE Internal Number CAT-T3437-UV1
