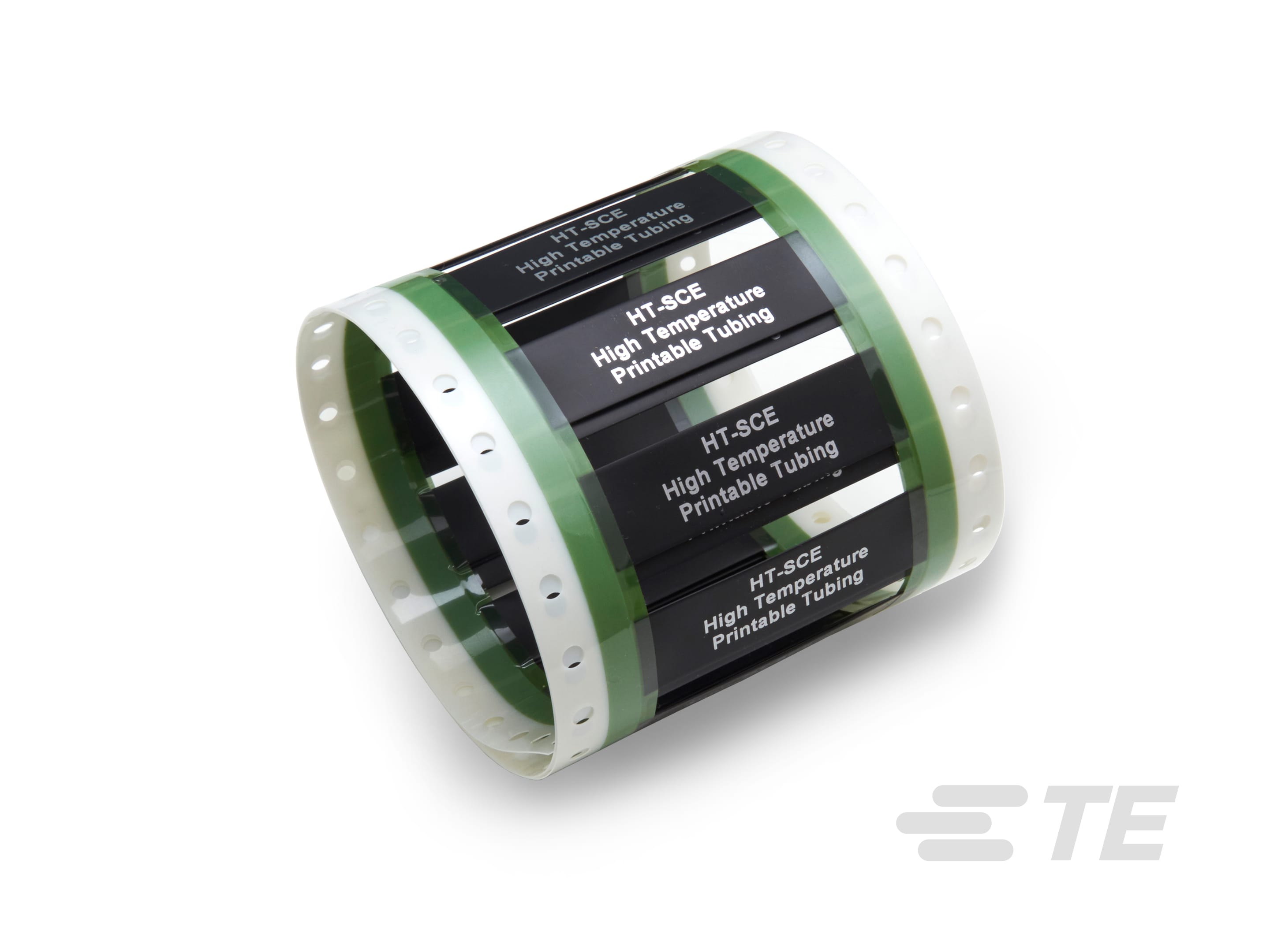

HT-SCE High Temperature Sleeves

Highly flame retardant, heat-shrinkable fluoropolymer tubing for high temperature applications or when extreme resistance to fuels/lubricants/cleaning solvents is required.

More Less

Digital Datasheet|

Product Features

Printable Tubing Type: Ladder
Shrink Ratio: 2:1
Operating Temperature Range(°C): -55 – 225

Available from

Product	TE Part #	Documents	Printable Tubing Grade	Primary Product Color	Number of Prescores	Markers per Sleeve	Product Length	Expanded Inside Diameter (Min)	Recovered Inside Diameter (Max)	Compatible Cable Diameter Range
HT-SCE-1/2-2.0-0 Buy on te.com	9337110001	Product Drawing	High Temperature	Black	-	1	50 mm	12.7 mm	6.35 mm	6.6 – 11.4 mm
HT-SCE-1-1/2-2.0-9 Buy on te.com	8420630001	Product Drawing	High Temperature	White	-	1	50.8 mm	38.1 mm	19.1 mm	19 – 30.48 mm
HT-SCE-1-2.0-9 Buy on te.com	8947570001	Product Drawing	High Temperature	White	-	1	50 mm	25.4 mm	12.7 mm	12.7 – 20.32 mm
HT-SCE-1/8-2.0-0 Buy on te.com	9352370001	Product Drawing	High Temperature	Black	-	1	50 mm	3.18 mm	1.58 mm	1.75 – 2.66 mm
HT-SCE-3/32-2.0-S1-9 Buy on te.com	2355930001	Product Drawing	High Temperature	White	1	2	25.4 mm	2.36 mm	.79 mm	.8 – 1.9 mm
HT-SCE-1/4-2.0-9 Buy on te.com	8306110001	Product Drawing	High Temperature	White	-	1	50 mm	6.35 mm	3.18 mm	3.4 – 6 mm
HT-SCE-3/16-2.0-9 Buy on te.com	3206430001	Product Drawing	High Temperature	White	-	1	50 mm	4.76 mm	2.38 mm	2.5 – 4 mm
HT-SCE-1/2-2.0-9 Buy on te.com	4117110001	Product Drawing	High Temperature	White	-	1	50 mm	12.7 mm	6.35 mm	6.6 – 11.4 mm
HT-SCE-1/4-2.0-0 Buy on te.com	6355850001	Product Drawing	High Temperature	Black	-	1	50 mm	6.35 mm	3.18 mm	3.4 – 6 mm
HT-SCE-3/32-2.0-9 Buy on te.com	5476270001	Product Drawing	High Temperature	White	-	1	50 mm	2.36 mm	.79 mm	.8 – 1.9 mm
HT-SCE-1/8-2.0-9 Buy on te.com	4108170001	Product Drawing	High Temperature	White	-	1	50 mm	3.18 mm	1.58 mm	1.75 – 2.66 mm
HT-SCE-1-2.0-0 Buy on te.com	2398990001	Product Drawing	High Temperature	Black	-	1	50 mm	25.4 mm	12.7 mm	12.7 – 20.32 mm
HT-SCE-3/8-2.0-0 Buy on te.com	4733050001	Product Drawing	High Temperature	Black	-	1	50 mm	9.53 mm	4.76 mm	5.3 – 8.1 mm
HT-SCE-1-1/2-2.0-0 Buy on te.com	5299850001	Product Drawing	High Temperature	Black	-	1	50.8 mm	38.1 mm	19.1 mm	19 – 30.48 mm
HT-SCE-1/4-2.0-S1-9 Buy on te.com	1400610001	Product Drawing	High Temperature	White	1	2	25.4 mm	6.35 mm	3.18 mm	3.4 – 6 mm
HT-SCE-3/8-2.0-S1-9 Buy on te.com	6195170001	Product Drawing	High Temperature	White	1	2	25.4 mm	9.53 mm	4.76 mm	5.3 – 8.1 mm
HT-SCE-1K-3/4-2.0-S1-9 Buy on te.com	D33688-000	Product Drawing	High Temperature	White	1	2	50.8 mm	19 mm	9.53 mm	9.9 – 15.3 mm
HT-SCE-3/16-2.0-S1-9 Buy on te.com	3554750001	Product Drawing	High Temperature	White	1	2	25.4 mm	4.76 mm	2.38 mm	2.5 – 4 mm
HT-SCE-3/4-2.0-0	1827990001	Product Drawing	High Temperature	Black	-	1	50 mm	19 mm	9.53 mm	9.9 – 15.3 mm
HT-SCE-3/4-2.0-9	9410990001	Product Drawing	High Temperature	White	-	1	50 mm	19 mm	9.53 mm	9.9 – 15.3 mm
HT-SCE-1K-3/8-2.0-9	121727-000	Product Drawing	Military	White	-	1	50.8 mm	9.53 mm	4.76 mm	4.75 – 7.6 mm
HT-SCE-3/8-2.0-9	8716810001	Product Drawing	High Temperature	White	-	1	50 mm	9.53 mm	4.76 mm	5.3 – 8.1 mm
HT-SCE-1K-3/4-2.0-9	2209350001	Product Drawing	High Temperature	White	-	1	50 mm	19 mm	9.53 mm	9.5 – 15.28 mm
HT-SCE-1K-1/4-2.0-9	5711630001	Product Drawing	High Temperature	White	-	1	50 mm	6.35 mm	3.18 mm	3.2 – 5.12 mm
HT-SCE-1K-3/32-2.0-9	2902090001	Product Drawing	High Temperature	White	-	1	50 mm	2.36 mm	.79 mm	.8 – 1.9 mm
HT-SCE-1K-1/2-2.0-9	6036230001	Product Drawing	High Temperature	White	-	1	50.8 mm	12.7 mm	6.35 mm	6.4 – 10.1 mm
HT-SCE-1K-1/8-2.0-0	A27893-000	Product Drawing	High Temperature	Black	-	1	50 mm	3.18 mm	1.58 mm	1.75 – 2.66 mm
HT-SCE-1K-1/8-2.0-9	9934510001	Product Drawing	High Temperature	White	-	1	50 mm	3.18 mm	1.58 mm	1.57 – 2.54 mm
HT-SCE-1K-1-2.0-9	550819-000	Product Drawing	High Temperature	White	-	1	50.8 mm	25.4 mm	12.7 mm	12.7 – 20.32 mm
HT-SCE-1K-3/16-2.0-9	397277-000	Product Drawing	High Temperature	White	-	1	50 mm	4.76 mm	2.38 mm	2.4 – 3.84 mm
HT-SCE-1K-1-1/2-2.0-9	531520-000	Product Drawing	High Temperature	White	-	-	50.8 mm	38.1 mm	19.1 mm	19 – 30.48 mm
HT-SCE-5K-1/8-2.0-9	991361-000	Product Drawing	High Temperature	White	-	1	50 mm	3.18 mm	1.58 mm	1.75 – 2.66 mm
HT-SCE-1K-1-2.0-0	544030-000	Product Drawing	High Temperature	Black	-	-	50.8 mm	25.4 mm	12.7 mm	12.7 – 20.32 mm
HT-SCE-1K-1/4-2.0-0	769356-000	Product Drawing	High Temperature	Black	-	1	50 mm	6.35 mm	3.18 mm	3.4 – 6 mm
HT-SCE-1K-1/4-2.0-S1-9	C91356-000	Product Drawing	High Temperature	White	1	2	50 mm	6.35 mm	3.18 mm	3.4 – 6 mm
HT-SCE-1K-3/4-2.0-0	131854-000	Product Drawing	High Temperature	Black	-	1	50.8 mm	19 mm	9.53 mm	9.9 – 15.3 mm
HT-SCE-3/16-2.0-0	0620070001	Product Drawing	High Temperature	Black	-	1	50 mm	4.76 mm	2.38 mm	2.5 – 4 mm
HT-SCE-1-2.0-S1-0	EJ2641-000	Product Drawing	High Temperature	Black	1	2	25 mm	25.4 mm	12.7 mm	13.3 – 23. mm
HT-SCE-1-1/2-2.0-S1-0	EJ2642-000	Product Drawing	High Temperature	Black	1	2	25 mm	38.1 mm	19 mm, 19.1 mm	19 – 30.48 mm
HT-SCE-1-1/2-2.0-S1-9	082955-000	Product Drawing	High Temperature	White	1	2	25.4 mm	38.1 mm	19.1 mm	19 – 30.48 mm
HT-SCE-1-2.0-S1-9	A41813-000	Product Drawing	High Temperature	White	1	2	25.4 mm	25.4 mm	12.7 mm	12.7 – 20.32 mm
HT-SCE-1/2-2.0-S1-0	0618750001	Product Drawing	High Temperature	Black	1	2	25.4 mm	12.7 mm	6.35 mm	6.6 – 11.4 mm
HT-SCE-1/2-2.0-S1-9	2773310001	Product Drawing	High Temperature	White	1	2	25.4 mm	12.7 mm	6.35 mm	6.6 – 11.4 mm
HT-SCE-1/4-2.0-S1-0	9166110001	Product Drawing	High Temperature	Black	1	2	25.4 mm	6.35 mm	3.18 mm	3.4 – 6 mm
HT-SCE-1/8-2.0-S1-0	4684370001	Product Drawing	High Temperature	Black	1	2	25.4 mm	3.18 mm	1.58 mm	1.75 – 2.66 mm
HT-SCE-1/8-2.0-S1-9	8880530001	Product Drawing	High Temperature	White	1	2	25.4 mm	3.18 mm	1.58 mm	1.75 – 2.66 mm
HT-SCE-1K-1-1/2-2.0-S1-9	C74367-000	Product Drawing	High Temperature	White	1	2	50.8 mm	38.1 mm	19.1 mm	19 – 30.48 mm
HT-SCE-1K-1-2.0-S1-9	C58463-000	Product Drawing	High Temperature	White	1	2	50.8 mm	25.4 mm	12.7 mm	12.7 – 20.32 mm
HT-SCE-1K-1/2-2.0-0	0497070001	Product Drawing	Military	Black	-	2	29.63 mm	12.7 mm	6.35 mm	6.6 – 11.4 mm
HT-SCE-1K-1/2-2.0-S1-0	167873-000	Product Drawing	High Temperature	Black	1	2	29.64 mm	12.7 mm	6.35 mm	6.6 – 11.4 mm
HT-SCE-1K-1/2-2.0-S1-9	C66242-000	Product Drawing	High Temperature	White	1	2	29.64 mm	12.7 mm	4.22 mm	6.6 – 11.4 mm
HT-SCE-1K-1/4-2.0-S1-0	219563-000	Product Drawing	High Temperature	Black	1	2	16.94 mm	6.35 mm	3.18 mm	3.4 – 6 mm
HT-SCE-1K-1/8-2.0-4	4147230001	Product Drawing	High Temperature	Yellow	-	1	12.7 mm	3.18 mm	1.58 mm	1.75 – 2.66 mm
HT-SCE-1K-1/8-2.0-S1-4	9016570001	Product Drawing	High Temperature	Yellow	1	2	12.7 mm	3.18 mm	1.58 mm	1.75 – 2.66 mm
HT-SCE-1K-1/8-2.0-S1-9	2012570001	Product Drawing	High Temperature	White	1	2	50 mm	3.18 mm	1.58 mm	1.75 – 2.66 mm
HT-SCE-1K-3/16-2.0-0	A13973-000	Product Drawing	High Temperature	Black	-	1	50 mm	4.76 mm	2.38 mm	2.5 – 4 mm
HT-SCE-1K-3/16-2.0-S1-9	D53079-000	Product Drawing	High Temperature	White	1	2	50.8 mm	4.76 mm	2.38 mm	2.5 – 4 mm
HT-SCE-1K-3/32-2.0-0	4431550001	Product Drawing	High Temperature	Black	-	1	50 mm	2.36 mm	.79 mm	.8 – 1.9 mm
HT-SCE-1K-3/32-2.0-S1-9	D47690-000	Product Drawing	High Temperature	White	1	2	12.7 mm	2.36 mm	.79 mm	.81 – 1.9 mm
HT-SCE-1K-3/32-2.0-S3-9	A72327-000	Product Drawing	High Temperature	White	3	4	12.7 mm	2.36 mm	.79 mm	.8 – 1.9 mm
HT-SCE-1K-3/8-2.0-S1-9	F23293-000	Product Drawing	High Temperature	White	1	2	50 mm	9.53 mm	4.76 mm	5.3 – 8.1 mm
HT-SCE-3/16-2.0-S1-0	4368030001	Product Drawing	High Temperature	Black	1	2	25.4 mm	4.76 mm	2.38 mm	2.5 – 4 mm
HT-SCE-3/32-2.0-0	0236090001	Product Drawing	High Temperature	Black	-	1	50 mm	2.36 mm	.79 mm	.8 – 1.9 mm
HT-SCE-3/32-2.0-S1-0	8846850001	Product Drawing	High Temperature	Black	1	2	25.4 mm	2.36 mm	.79 mm	.8 – 1.9 mm
HT-SCE-3/4-2.0-S1-0	C79011-000	Product Drawing	High Temperature	Black	1	2	25.4 mm	19 mm	9.53 mm	9.9 – 15.3 mm
HT-SCE-3/8-2.0-S1-0	2197750001	Product Drawing	High Temperature	Black	1	2	25.4 mm	9.53 mm	4.76 mm	5.3 – 8.1 mm

Overview

HT-SCE wire markers are designed for use in high temperature applications or where extreme resistance to fuels, lubricants and cleaning solvents is required such as Aerospace, Military, Industrial and Semi-conductor applications. Ideal for applications where low vacuum out-gassing is of high importance. HT-SCE markers are made of highly flame retardant, heat-shrinkable fluoropolymer tubing. After shrinking, HT-SCE markers meets the print performance requirements of SAE AS5942 and MIL-STD-202 Method 215. HT-SCE is supplied in boxes of 250 sleeves and are available in nine diameter sizes. Suitable to cover substrate diameters from 0.8mm to 34mm. Because of this versatility, inventory is minimized. Supplied in a “ladder format”, sleeves are held horizontally between two polyester strips and offers ease of printing and kitting.

Features and benefits

Thermal transfer printable
Permanent identification sleeves
High continuous operating temperature
Extreme fluid resistance
Low Vacuum Out-gassing
2:1 shrink ratio
Wide range of sleeve sizes for several wire and bundle diameters

Operating temperature range

-55^oC to 225^oC (-67^oF to 437^oF)

Specifications and approvals

SAE-AS4952
EN45545-2 R24 HL3
MIL-STD-202 Method 215

Recommended hardware and software

Printer: T200-IDENT / TE3112 / TE3124 / T6112DS
Ribbon: TMS-RJS-RIBBON-4HT If black tubing: T300-RIBBON-WH-4HT
Software: WinTotal v6

For more information

Technical Datasheet: TTDS-020
Product Specification Sheet: RW-2512

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Printable Tubing Type Ladder
Printable Tubing Grade High Temperature, Military

Body Features

Shrink Ratio 2:1
Primary Product Color Black, White, Yellow
Markers per Sleeve 1, 2, 4

Dimensions

Product Length (mm) 12.7, 16.94, 25, 25.4, 29.63, 29.64, 50, 50.8
Product Length (in) .5, .667, 1, 1.167, 2
Expanded Inside Diameter (Min) (mm) 2.36, 3.18, 4.76, 6.35, 9.53, 12.7, 18, 19, 25.4, 38.1
Expanded Inside Diameter (Min) (in) .093, .125, .187, .25, .375, .5, .709, .75, 1, 1.5
Recovered Inside Diameter (Max) (mm) .79, 1.58, 2.38, 3.18, 4.22, 4.76, 6.35, 9, 9.53, 12.7, 19, 19.1
Recovered Inside Diameter (Max) (in) .031, .062, .094, .125, .166, .188, .25, .354, .375, .5, .75, .752
Compatible Cable Diameter Range (mm) .8 – 1.9, .81 – 1.9, 1.57 – 2.54, 1.75 – 2.66, 2.4 – 3.84, 2.5 – 4, 3.2 – 5.12, 3.4 – 6, 4.75 – 7.6, 5.3 – 8.1, 6.4 – 10.1, 6.6 – 11.4, 9.5 – 15.28, 9.9 – 15.3, 12.7 – 20.32, 13.3 – 23., 19 – 30.48
Compatible Cable Diameter Range (in) .031 – .074, .032 – .075, .062 – .1, .068 – .104, .094 – .151, .1 – .16, .118 – .236, .133 – .236, .187 – .299, .209 – .319, .25 – .4, .26 – .449, .375 – .6, .39 – .602, .5 – .8, .524 – .906, .75 – 1.2

Usage Conditions

Operating Temperature Range -55 – 225 °C [ -67 – 437 °F ]

Printer/Label Features

Number of Prescores 1, 3
Printer Technology Thermal Transfer

Packaging Features

Packaging Quantity 250, 1000, 5000

Reference Number

TE Internal Number CAT-T3437-H85999A
