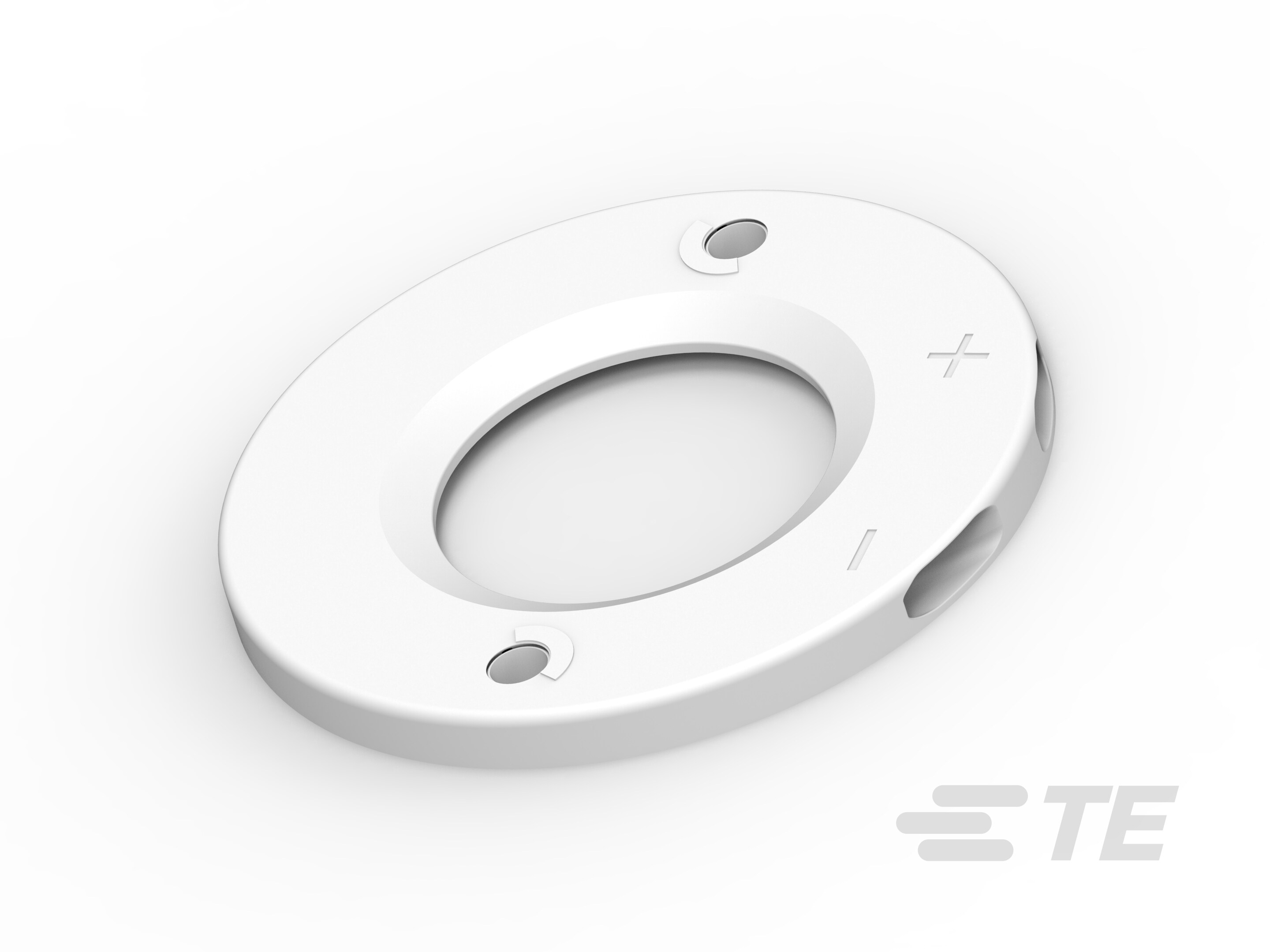

Z50 Low Profile LED Holders

Z50 Low Profile LED Holders-CAT-L97-L4981A
  • LUMAWISE
|
  • LUMAWISE LED Holders
LUMAWISE LED Holder low profile Type Z50 provides an easy solderless connection in a low profile form factor. Allows direct attachment of LEDs to a heat sink using standard screws enabling designs to be faster to market.
More Less

Product Features

  • Termination Method to Wire & Cable: Poke-In

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Wire-to-Board, Wire-to-Component

  • Connector & Contact Terminates To  Printed Circuit Board, Wire & Cable

  • COB Substrate Thickness (mm) 1

  • LED Holders Product Type  LED Holder

Configuration Features

  • Lighting Connector Features Included  Does Not Enable Zhaga Compatibility, No Driver on Board, No Thermal Protection, Not Dimmable, Not Optic Compatible, Not Programmable, Optic Compatible, Zhaga Inspired

  • Number of Positions  1, 2

Electrical Characteristics

  • Operating Voltage (VDC) 60, 277, 300

  • Current Rating (Max) (A) 5

Body Features

  • Compatible LED  Bridgelux V13D Gen 7, Bridgelux V22, Citizen CLL030, Citizen CLL032, Citizen CLL036- 1208C1, Citizen CLL036-1205C1, Citizen CLL036-1206C1, Citizen CLL040, Citizen CLL042, Citizen CLU 044, Citizen CLU 046, Citizen CLU034, Citizen CLU036, Citizen CLU038-1206C4, Citizen CLU048-1212C4, Citizen CLU720, Citizen CLU730, Citizen CLU731, Cree CMT 1922, Cree CMT 1925, Cree CMT 1930, Cree CMT 2890, Cree CXA 1812, Cree CXA 1820, Cree CXA 25XX/CXB 25XX, Cree CXB 1820, Cree CXB 2540, Edison Opto 2PHM30XWXXP13001, Edison Opto 2PHM40X, Everlight EAHP1919, Everlight XUAN1919, Lextar Nimbus 1500, LG Innotek LEMWM28C80HZxxxx, LG Innotek LEMWM28C80LZxxxx, Lumileds 1202, Lumileds 1202CRSP, Lumileds 1203, Lumileds 1203CRSP, Lumileds 1204, Lumileds 1204 GEN 3, Lumileds 1204CRSP, Lumileds 1205, Lumileds 1205 GEN 3, Lumileds 1205CRSP, Lumileds 1208, Lumileds 1208 CRSP, Lumileds 1208 GEN 3, Lumileds 1216, Lumileds LUXEON CoB 1211, Luminus CGM-14 GEN4, Luminus CGM-22 GEN 4, Luminus CHM 22, Luminus CHM-11-XH20, Luminus CHM-14-XH20, Luminus CHM-9-AC00, Luminus CHM-9-XH20/XH30, Luminus CLM-14 GEN 3, Luminus CLM-14 GEN4, Luminus CLM-22 GEN 4, Luminus CXM-14 Gen 3, Luminus CXM-14 GEN4, Luminus CXM-22 GEN 3/GEN 4, Nichia L036A, Nichia L066, Nichia L121A, Nichia NFCLJ108B, Nichia NFCWJ108B, Nichia NFDLJ130B, Nichia NFDWJ130B, Nichia NFDWJ130B-V2, Osram S19 GW KAHLB2.PM, Osram SOLERIQ S13 GEN II, Panasonic DMC 12CC, Panasonic DMC 17CC, Panasonic DMS 120, Panasonic DMS 150, Panasonic DSM12CC40G, Panasonic  C14 (19x19), Samsung LC016D, Samsung LC019D, Samsung LC020C, Samsung LC026B, Samsung LC026D, Samsung LC030C, Samsung LC033B, Samsung LC033D, Samsung LC040B, Samsung LC040C, Samsung LC040D, Samsung LC060D, Samsung LC080D, Seoul SAWx22AAA, Seoul SBW2FIB, Seoul SBW3FIA, Seoul SDW05FIC, Seoul SDW85FIC, Seoul SDWx3F1C, Seoul ZC40, Seoul SDW02F1C (ZC12), Tridonic SLE-G5-LES15, Tridonic SLE-G6-LES 15, Tridonic SLE-G6-LES 15 SNC/ADV, Tridonic SLE-G6-LES 17, Tridonic SLE-G6-LES 17 SNC/ADV/EXC, Tridonic SLE-G7-LES13, Tridonic SLE-G7-LES15, VOSSLOH-SCHWABE VAS-125, VOSSLOH-SCHWABE VAS-127

Contact Features

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material  Gold, Silver

  • Contact Current Rating (Max) (A) 3, 5

Termination Features

  • Termination Method to Wire & Cable  Poke-In

Mechanical Attachment

  • Connector Mounting Type  Board Mount

Housing Features

  • Housing Material  PBT GF

Usage Conditions

  • Operating Temperature Range (°C) -40 – 105

  • Operating Temperature Range (°F) -40 – 105, -40 – 221

Operation/Application

  • Circuit Application  Power

Reference Number

  • TE Internal Number CAT-L97-L4981A
