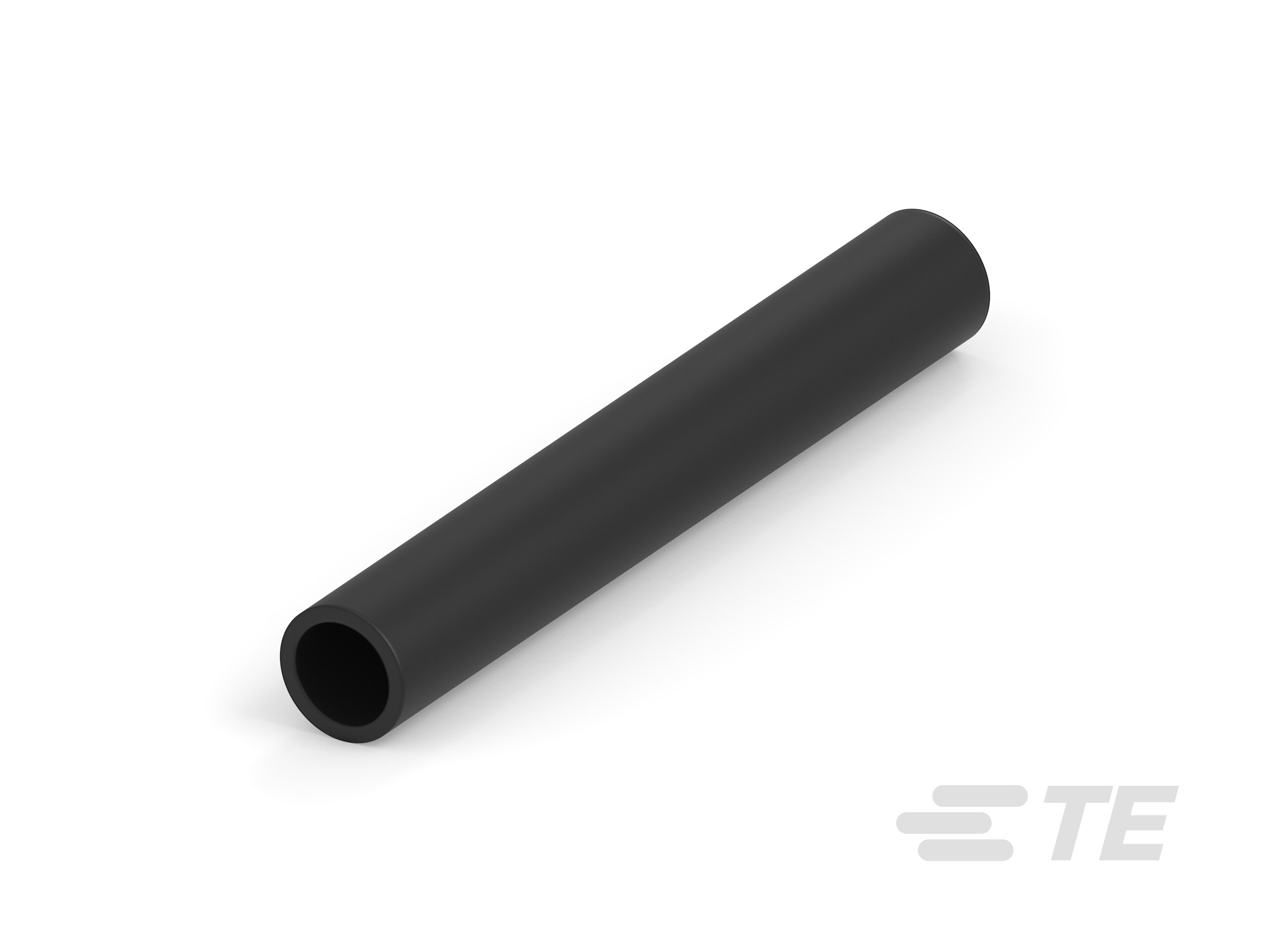

CRN Heat Shrink Tubing

Please review product documents or contact us for the latest agency approval information.

• Wall Type  Single Wall

• Operating Voltage (Max) (kV) .6

• Fluid Type  Aviation Fuel, Brake Fluid, Chemicals/Solvents, Hydraulic Fluid, Water

• Primary Product Color  Black, Clear

• Shrink Ratio  2:1

• Primary Product Material  Irradiated Modified Polyolefin

• Flexibility  Flex-Rigid, Semi-Rigid

• Product Length (mm) 20, 28, 30, 60, 115, 200, 1220

• Product Length (in) .787, 1.102, 1.181, 2.362, 4.528, 7.87, 48.031

• Expanded Inside Diameter (Min) (mm) 1.17, 1.6, 2.36, 2.4, 3.17, 4.74, 6.35, 9.5, 12.7, 19.05

• Expanded Inside Diameter (Min) (in) .046, .063, .093, .094, .125, .187, .25, .375, .5, .75

• Recovered Inside Diameter (Max) (mm) .58, .79, .8, 1.17, 1.2, 1.57, 2.36, 3.17, 4.74, 6.35, 9.53

• Recovered Inside Diameter (Max) (in) .023, .031, .046, .047, .062, .093, .125, .187, .25, .375

• Tubing Size Range (mm) .58 – 1.17, .79 – 1.6, .8 – 1.6, 1.17 – 2.36, 1.2 – 2.4, 1.57 – 3.17, 2.36 – 4.74, 3.17 – 6.35, 4.74 – 9.5, 6.35 – 12.7, 9.53 – 19.05

• Tubing Size Range (in) .023 – .046, .031 – .063, .046 – .093, .047 – .094, .062 – .125, .093 – .187, .125 – .25, .187 – .375, .25 – .5, .375 – .75

• Recovered Wall Thickness (Nominal) (mm) .5, .63, .64, .76, .89

• Recovered Wall Thickness (Nominal) (in) .02, .025, .03, .035

• Recovered Wall Thickness (Tolerance) (mm) .1, .15, .25, .3

• Recovered Wall Thickness (Tolerance) (in) .004, .006, .01

• Tubing Flammability Type  Flame-Retardant, Non-Flame-Retardant

• Operating Temperature Range (°C) -55 – 135

• Recovery Temperature (°C) 135

• Shrink Temperature (Min) (°C) 110

• Mechanical Resistance  Abrasion, Fluids, Mechanical Damage, Strain Relief

• Applicable Region  Global

• Packaging Method  Bag, Bag & Box, Piece, Reel, Spool, Stick

• Meets Low Outgassing Requirements  No

• Product Source  Czech Republic
