Overview

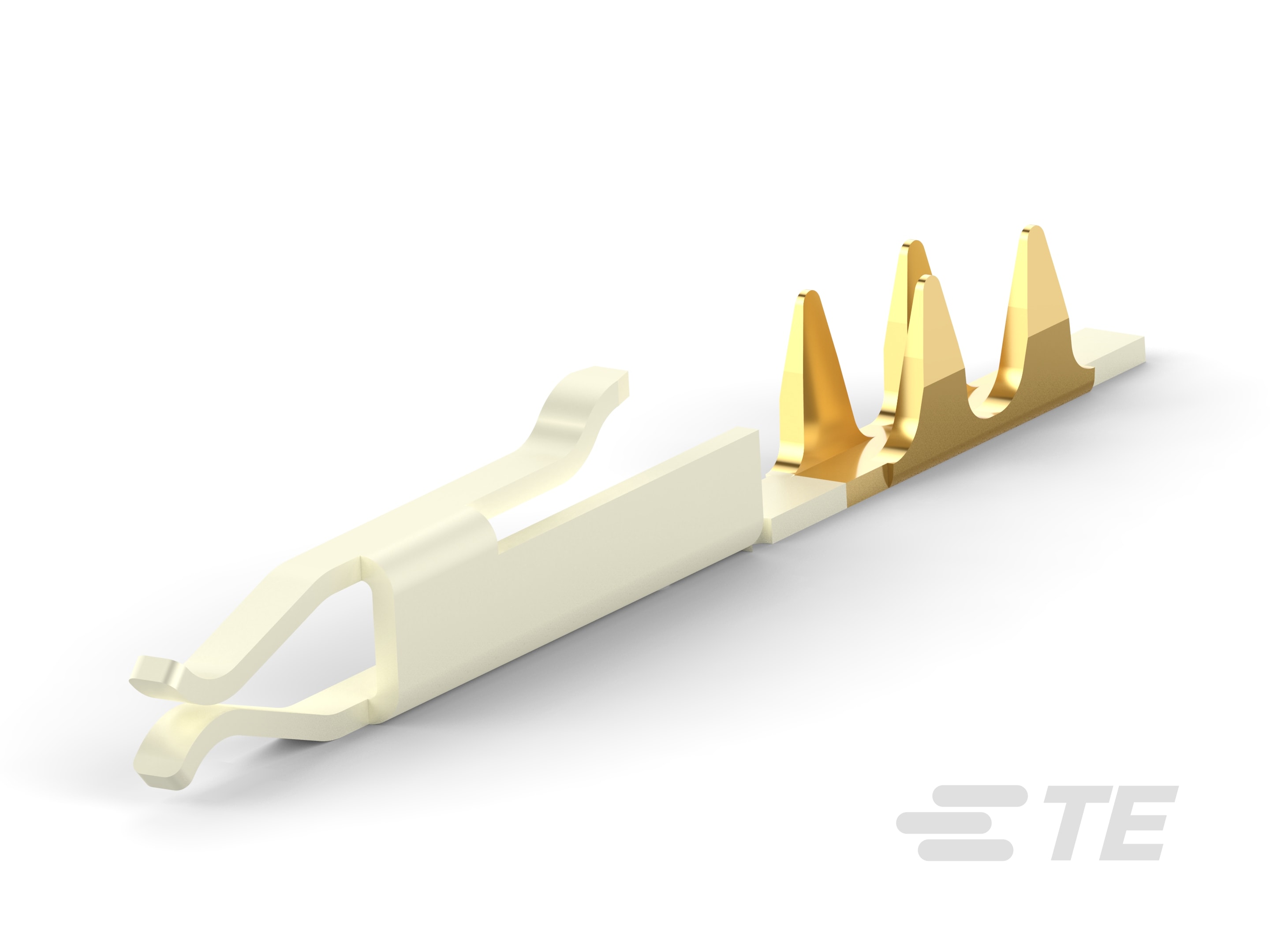

1.27mm FFC Connectors Socket Contacts
Product Features
-
Contact Type: Socket
-
Contact Mating Area Plating Material: Gold, Gold Flash over Palladium Nickel
-
Compatible With Wire & Cable Type: FFC
-
Termination Method to Wire & Cable: Insulation Displacement (IDC)
-
Contact Base Material: Phosphor Bronze
Overview
Product Features
FFC Connectors
- Cable stripping and plating eliminated
- High speed sequential application of multiple-crimp contacts
- Underwriters Laboratories Inc., File No. E28476
- CSA Report No. LR 7189A-91
- Single and double row housings: plain and latch
- Pin, receptacle, card edge, and solder tab contact options
- Capability of intermixing FFC cable and round wire contacts
↑
High density packaging
↓
Low profile design
↔
Wide variety of housing options
The TE family of flat flexible cable connectors includes a wide variety of high density cable-to-board and cable-to-cable connectors designed for automated assembly. The family is composed of pin and receptacle housings on .100 [2.54] centerline contact spacing and receptacle housings on .050 [1.27] centerline contact spacing. Receptacle housings not only mate with the pin housings, but also mate with an array of printed circuit board headers from other TE connector lines, including AMPMODU connectors.
Product Line Options
FFC Connectors
-
FFC Contacts
Multiple-crimp design is featured on all .050 [1.27] and .100 [2.54] centerline FFC contacts. Four crimping tines are used on the cable insulation and conductor, for optimum electrical and mechanical reliability. Supplied in strip form on reels for sequential termination.
-
FFC Housings
FFC housings are loaded with the prepared FFC cable assembly before the assembly is mated with a board side header (in wire-to-board solutions), or another FFC cable assembly (in wire-to-wire solutions). Housings are available in standard or slimline, single or dual row style, with or without latching, and with or without mounting ears.
-
FFC FLEXPAC Connectors
A versatile interconnection solution for high performance applications. Combines flat conductor cable technology with a variety of contact and connector termination styles. Coupled with polarized locking headers, these enable the specification of custom designed assemblies tailored to the specific board-to-board application.
-
ZIF Connectors
Zero insertion force (ZIF) connectors allow for easy cable insertion and a reliable connection.
-
Trio-Mate Connectors
Accepts FFC cable, flexible etched circuitry, or membrane switch circuitry. Contact area .005 to .015 [0.13 to 0.38] thick. High extraction force.
Select Applications
FFC Connectors
- PCs
- PDA
- Camera
- Membrane switches
- Inkjet, laser, and 3D printers
- Disk drives
- Data systems
- Appliances
- Industrial controls
- Medical devices
Features
Please review product documents or contact us for the latest agency approval information.
Configuration Features
-
Compatible With Wire & Cable Type FFC
Contact Features
-
PCB Contact Termination Area Plating Material Gold Flash, Tin-Lead
-
Contact Underplating Material Nickel
-
Contact Mating Area Plating Material Thickness (µin) 15, 30
-
Contact Type Socket
-
Contact Mating Area Plating Material Gold, Gold Flash over Palladium Nickel
-
Contact Base Material Phosphor Bronze
-
Contact Current Rating (Max) (A) 1.5
Termination Features
-
Termination Method to Wire & Cable Insulation Displacement (IDC)
-
Product Terminates To Wire & Cable
Dimensions
-
Accepts Conductor Width (mm) .66, 2.33
Usage Conditions
-
Operating Temperature Range -55 – 105 °C [ -67 – 221 °F ]
Operation/Application
-
Circuit Application Signal
Packaging Features
-
Packaging Method Reel
Reference Number
-
TE Internal Number CAT-F439-S01339127
Related Materials
AMPMODU MTE, AMPMODU, AMP-LATCH, FLEXPAC, and TRIO-MATE are trademarks.
Underwriters Laboratories Inc., UL, and CSA are trademarks of their respective owners.
