Wraparound Sleeve for Cable Repair

RAYCHEM

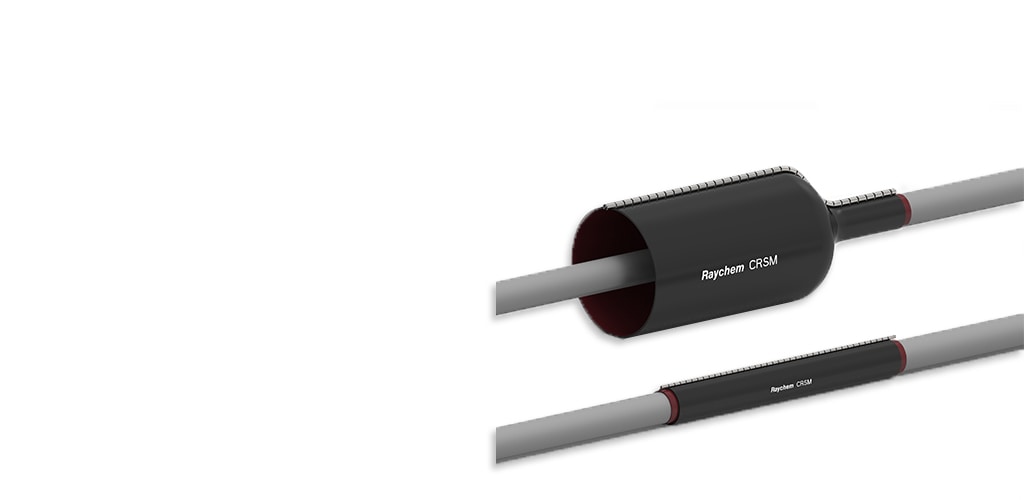

RAYCHEM CRSM

Our Raychem CRSM Wraparound Sleeve for Cable Repair is ideal for insulation, sealing or as rejacketing material for 1000V power cables.

More Less

Datasheet |
Digital Datasheet|

Product Features

Power Cable Wrap Technology: Heat Shrink
Power Cable Wrap Voltage Rating(kV): ≤ 1
Power Cable Wrap Product Type: Heat Shrink Wraparound
Adhesive Coating: Yes
Flexibility: Semi-Rigid

Available from

Product	TE Part #	Documents	Power Cable Wrap Product Availability	Application Diameter (Max)	Application Diameter (Min)	Power Cable Wrap Flammability	Recovered Wall Thickness (Max)	Power Cable Wrap Size Code	Power Cable Wrap Expanded Inside Diameter (Min)	Power Cable Wrap Recovered Inside Diameter (Max)	Sleeve Length
CRSM-143/36-1200	962244-000	Product Drawing	Worldwide	115 mm	39 mm	Non-Flame-Retardant	2.4 mm	CRSM-143/36	144 mm	36 mm	1200 mm
CRSM-107/29-1200	337100-000	Product Drawing	Worldwide	86 mm	32 mm	Non-Flame-Retardant	2.4 mm	CRSM-107/29	108 mm	29 mm	1200 mm
CRSM-198/55-1200	011551-000	Product Drawing	Worldwide	160 mm	60 mm	Non-Flame-Retardant	2.4 mm	CRSM-198/55	203 mm	55 mm	1200 mm
CRSM-84/20-1200	721359-000	Product Drawing	Worldwide	68 mm	24 mm	Non-Flame-Retardant	2.4 mm	CRSM-84/20	85 mm	20 mm	1200 mm
CRSM-143/36-750/239(S5)	289379-000	Product Drawing	Worldwide	86 mm	33 mm	Non-Flame-Retardant	1.8 mm	CRSM-143/36	144 mm	28 mm	750 mm
CRSM-107/29-750/239(S6)	651087-000	Product Drawing	Worldwide	65 mm	31 mm	Non-Flame-Retardant	2 mm	CRSM-107/29	108 mm	27 mm	750 mm
CRSM-107/29-500/239(S5)	450813-000	Product Drawing	Worldwide	65 mm	31 mm	Non-Flame-Retardant	2 mm	CRSM-107/29	108 mm	27 mm	500 mm
CRSM-53/13-750/239(S5)	060935-000	Product Drawing	Worldwide	32 mm	17 mm	Non-Flame-Retardant	2 mm	CRSM-53/13	54 mm	15 mm	750 mm
CRSM-34/10-1200	542765-000	Product Drawing	Worldwide	27 mm	11 mm	Non-Flame-Retardant	2.4 mm	CRSM-34/10	35 mm	10 mm	1200 mm
CRSM-34/10-500/239(S10)	832439-000	Product Drawing	Worldwide	21 mm	11 mm	Non-Flame-Retardant	2.4 mm	CRSM-34/10	35 mm	9 mm	500 mm
CRSM-143/36-1000/239(S1)	002611-000	Product Drawing	Worldwide	86 mm	33 mm	Non-Flame-Retardant	1.8 mm	CRSM-143/36	144 mm	28 mm	1000 mm
CRSM-84/20-500/239(S5)	161251-000	Product Drawing	Worldwide	50 mm	24 mm	Non-Flame-Retardant	2 mm	CRSM-84/20	86 mm	21 mm	500 mm
CRSM-53/13-1200	237497-000	Product Drawing	Worldwide	43 mm	17 mm	Non-Flame-Retardant	2.4 mm	CRSM-53/13	54 mm	13 mm	1200 mm
CRSM-53/13-500/239(S10)	359475-000	Product Drawing	Worldwide	32 mm	17 mm	Non-Flame-Retardant	2 mm	CRSM-53/13	54 mm	15 mm	500 mm
CRSM-53/13-250/239(S10)	401457-000	Product Drawing	Worldwide	32 mm	17 mm	Non-Flame-Retardant	2 mm	CRSM-53/13	54 mm	15 mm	250 mm
CRSM-53/13-1200/239(S5)	204633-000	Product Drawing	Worldwide	32 mm	17 mm	Non-Flame-Retardant	2 mm	CRSM-53/13	54 mm	15 mm	1200 mm
CRSM-34/10-750/239(S10)	822895-000	Product Drawing	Worldwide	21 mm	11 mm	Non-Flame-Retardant	2.4 mm	CRSM-34/10	35 mm	9 mm	750 mm
CRSM-84/20-750/239(S8)	985043-000	Product Drawing	Worldwide	50 mm	24 mm	Non-Flame-Retardant	2 mm	CRSM-84/20	86 mm	21 mm	750 mm
CRSM-107/29-250/239(S10)	113107-000	Product Drawing	Worldwide	65 mm	31 mm	Non-Flame-Retardant	2 mm	CRSM-107/29	108 mm	27 mm	250 mm
CRSM-34/10-250/239(S10)	316675-000	Product Drawing	Worldwide	21 mm	11 mm	Non-Flame-Retardant	2.4 mm	CRSM-34/10	35 mm	9 mm	250 mm
CRSM-107/29-1200/239(S5)	058479-000	Product Drawing	Worldwide	65 mm	31 mm	Non-Flame-Retardant	2 mm	CRSM-107/29	108 mm	27 mm	1200 mm
CRSM-34/10-1000/239(S5)	406345-000	Product Drawing	Worldwide	21 mm	11 mm	Non-Flame-Retardant	2.4 mm	CRSM-34/10	35 mm	9 mm	1000 mm
CRSM-84/20-1000/239(S5)	953639-000	Product Drawing	Worldwide	50 mm	24 mm	Non-Flame-Retardant	2 mm	CRSM-84/20	86 mm	21 mm	1000 mm
CRSM-107/29-1500/239(S1)	546145-000	Product Drawing	Worldwide	65 mm	31 mm	Non-Flame-Retardant	2 mm	CRSM-107/29	108 mm	27 mm	1500 mm
CRSM-53/13-1500/239(S1)	505955-000	Product Drawing	Worldwide	32 mm	17 mm	Non-Flame-Retardant	2 mm	CRSM-53/13	54 mm	15 mm	1500 mm
CRSM-107/29-1000/239(S5)	395359-000	Product Drawing	Worldwide	65 mm	31 mm	Non-Flame-Retardant	2 mm	CRSM-107/29	108 mm	27 mm	1000 mm
CRSM-53/13-1000/239(S5)	279727-000	Product Drawing	Worldwide	32 mm	17 mm	Non-Flame-Retardant	2 mm	CRSM-53/13	54 mm	15 mm	1000 mm
CRSM-84/20-250/239(S10)	996715-000	Product Drawing	Worldwide	50 mm	24 mm	Non-Flame-Retardant	2 mm	CRSM-84/20	86 mm	21 mm	250 mm
CRSM-84/20-1500/239(S5)	219483-000	Product Drawing	Worldwide	50 mm	24 mm	Non-Flame-Retardant	2 mm	CRSM-84/20	86 mm	21 mm	1500 mm
CRSM-107/29-1000	922288-000	Product Drawing	Worldwide	86 mm	32 mm	Non-Flame-Retardant	2.4 mm	CRSM-107/29	108 mm	29 mm	1000 mm
CRSM-84/20-1000(B10)	842515-000	Product Drawing	Worldwide	68 mm	24 mm	Non-Flame-Retardant	2.4 mm	CRSM-84/20	85 mm	20 mm	1000 mm
CRSM-84/20-750	298891-000	Product Drawing	Worldwide	68 mm	24 mm	Non-Flame-Retardant	2.4 mm	CRSM-84/20	85 mm	20 mm	750 mm
CRSM-107/29-1000(B5)	D02250-000	Product Drawing	Worldwide	86 mm	32 mm	Non-Flame-Retardant	2.4 mm	CRSM-107/29	108 mm	29 mm	1000 mm
CRSM-3-870-COMMON(B6)	718465-000	Product Drawing	Worldwide	50 mm	24 mm	Non-Flame-Retardant	2 mm	CRSM-3-870	86 mm	21 mm	870 mm
CRSM-34/10-150	196146-000	Product Drawing	Worldwide	27 mm	11 mm	Non-Flame-Retardant	2.4 mm	CRSM-34/10	35 mm	10 mm	150 mm
CRSM-34/10-200	657871-000	Product Drawing	Worldwide	27 mm	11 mm	Non-Flame-Retardant	2.4 mm	CRSM-34/10	35 mm	10 mm	200 mm
CRSM-5-1200-COMMON-(B6)	232367-000	Product Drawing	Worldwide	86 mm	33 mm	Non-Flame-Retardant	1.8 mm	CRSM-5-1200	144 mm	28 mm	1200 mm
CRSM-53/13-200	633602-000	Product Drawing	Worldwide	43 mm	17 mm	Non-Flame-Retardant	2.4 mm	CRSM-53/13	54 mm	13 mm	200 mm
CRSM-84/20-600	F26433-000	Product Drawing	Worldwide	68 mm	24 mm	Non-Flame-Retardant	2.4 mm	CRSM-84/20	85 mm	20 mm	600 mm
CRSM-84/20-870	818545-000	Product Drawing	Worldwide	68 mm	24 mm	Non-Flame-Retardant	2.4 mm	CRSM-84/20	85 mm	20 mm	870 mm
CRSM-84/20-870(B25)	F20283-000	Product Drawing	Worldwide	68 mm	24 mm	Non-Flame-Retardant	2.4 mm	CRSM-84/20	85 mm	20 mm	870 mm
CRSM-250/98-1200/239(B5)	D24985-000	Product Drawing	Worldwide	200 mm	105 mm	Non-Flame-Retardant	1.7 mm	CRSM-250/98	257 mm	91 mm	1200 mm
CRSM-143/36-1000/S(S1)	002611-001	Product Drawing	-	115 mm	39 mm	-	1.8 mm	CRSM-143/36	143 mm	-	1000 mm
CRSM-34/10-1200/239(S5)	006009-000	Product Drawing	Worldwide	21 mm	11 mm	Non-Flame-Retardant	2.4 mm	CRSM-34/10	35 mm	9 mm	1200 mm
CRSM-34/10-1200/S(S5)	006009-001	Product Drawing	-	27 mm	11 mm	-	2 mm	CRSM-34/10	34 mm	-	1200 mm
CRSM-107/29-1200/S(S5)	058479-001	Product Drawing	-	86 mm	32 mm	-	2 mm	CRSM-107/29	107 mm	-	1200 mm
CRSM-143/36-2000/239(S20)	059945-000	Product Drawing	Worldwide	86 mm	33 mm	Non-Flame-Retardant	1.8 mm	CRSM-143/36	144 mm	28 mm	2000 mm
CRSM-143/36-2000/S(S20)	059945-001	Product Drawing	-	115 mm	39 mm	-	1.8 mm	CRSM-143/36	143 mm	-	2000 mm
CRSM-53/13-750/S(S5)	060935-001	Product Drawing	-	43 mm	17 mm	-	2 mm	CRSM-53/13	53 mm	-	750 mm
CRSM-198/55-250/S(S5)	067269-001	Product Drawing	-	160 mm	60 mm	-	1.8 mm	CRSM-198/55	198 mm	-	250 mm
CRSM-143/36-1500/S(S1)	091525-001	Product Drawing	-	115 mm	39 mm	-	1.8 mm	CRSM-143/36	143 mm	-	1500 mm
CRSM-107/29-250/S(S10)	113107-001	Product Drawing	-	86 mm	32 mm	-	2 mm	CRSM-107/29	107 mm	-	250 mm
CRSM-107/29-1500/S(B5)	142631-001	Product Drawing	-	86 mm	32 mm	-	2 mm	CRSM-107/29	107 mm	-	1500 mm
CRSM-84/20-500/S(S5)	161251-001	Product Drawing	-	68 mm	24 mm	-	2 mm	CRSM-84/20	84 mm	-	500 mm
CRSM-250/98-250/239(S5)	193119-000	Product Drawing	Worldwide	150 mm	103 mm	Non-Flame-Retardant	1.7 mm	CRSM-250/98	257 mm	91 mm	250 mm
CRSM-250/98-250/S(S5)	193119-001	Product Drawing	-	200 mm	105 mm	-	1.8 mm	CRSM-250/98	250 mm	-	250 mm
CRSM-53/13-600/S(S10)	197929-001	Product Drawing	-	43 mm	17 mm	-	2 mm	CRSM-53/13	53 mm	-	600 mm
CRSM-53/13-1200/S(S5)	204633-001	Product Drawing	-	43 mm	17 mm	-	2 mm	CRSM-53/13	53 mm	-	1200 mm
CRSM-84/20-1500/S(S5)	219483-001	Product Drawing	-	68 mm	24 mm	-	2 mm	CRSM-84/20	84 mm	-	1500 mm
CRSM-198/55-500/S(S5)	225261-001	Product Drawing	-	160 mm	60 mm	-	1.8 mm	CRSM-198/55	198 mm	-	500 mm
CRSM-198/55-1500/S(S1)	247537-001	Product Drawing	-	160 mm	60 mm	-	1.8 mm	CRSM-198/55	198 mm	-	1500 mm
CRSM-53/13-1000/S(S5)	279727-001	Product Drawing	-	43 mm	17 mm	-	2 mm	CRSM-53/13	53 mm	-	1000 mm
CRSM-143/36-750/S(S5)	289379-001	Product Drawing	-	115 mm	39 mm	-	1.8 mm	CRSM-143/36	143 mm	-	750 mm
CRSM-143/36-1000/S(B5)	297113-001	Product Drawing	-	115 mm	39 mm	-	1.8 mm	CRSM-143/36	143 mm	-	1000 mm
CRSM-34/10-250/S(S10)	316675-001	Product Drawing	-	27 mm	11 mm	-	2 mm	CRSM-34/10	34 mm	-	250 mm
CRSM-198/55-1000/S(S5)	318575-001	Product Drawing	-	160 mm	60 mm	-	1.8 mm	CRSM-198/55	198 mm	-	1000 mm
CRSM-53/13-500/S(S10)	359475-001	Product Drawing	-	43 mm	17 mm	-	2 mm	CRSM-53/13	53 mm	-	500 mm
CRSM-107/29-1000/S(S5)	395359-001	Product Drawing 3D PDF	-	86 mm	32 mm	-	2 mm	CRSM-107/29	107 mm	-	1000 mm
CRSM-53/13-250/S(S10)	401457-001	Product Drawing	-	43 mm	17 mm	-	2 mm	CRSM-53/13	53 mm	-	250 mm
CRSM-34/10-1000/S(S5)	406345-001	Product Drawing	-	27 mm	11 mm	-	2 mm	CRSM-34/10	34 mm	-	1000 mm
CRSM-34/10-1500/239(S1)	445185-000	Product Drawing	Worldwide	21 mm	11 mm	Non-Flame-Retardant	2.4 mm	CRSM-34/10	35 mm	9 mm	1500 mm
CRSM-34/10-1500/S(S1)	445185-001	Product Drawing	-	27 mm	11 mm	-	2 mm	CRSM-34/10	34 mm	-	1500 mm
CRSM-107/29-500/S(S5)	450813-001	Product Drawing	-	86 mm	32 mm	-	2 mm	CRSM-107/29	107 mm	-	500 mm
CRSM-198/55-2000/239(S10)	464073-000	Product Drawing	Worldwide	120 mm	56 mm	Non-Flame-Retardant	2.1 mm	CRSM-198/55	203 mm	50 mm	2000 mm
CRSM-198/55-2000/S(S10)	464073-001	Product Drawing	-	160 mm	60 mm	-	1.8 mm	CRSM-198/55	198 mm	-	2000 mm
CRSM-53/13-1500/S(S1)	505955-001	Product Drawing	-	43 mm	17 mm	-	2 mm	CRSM-53/13	53 mm	-	1500 mm
CRSM-198/55-1200/S(S1)	534999-001	Product Drawing	-	160 mm	60 mm	-	1.8 mm	CRSM-198/55	198 mm	-	1200 mm
CRSM-107/29-1500/S(S1)	546145-001	Product Drawing	-	86 mm	32 mm	-	2 mm	CRSM-107/29	107 mm	-	1500 mm
CRSM-250/98-500/239(S1)	575247-000	Product Drawing	Worldwide	150 mm	103 mm	Non-Flame-Retardant	1.7 mm	CRSM-250/98	257 mm	91 mm	500 mm
CRSM-250/98-500/S(S1)	575247-001	Product Drawing	-	200 mm	105 mm	-	1.8 mm	CRSM-250/98	250 mm	-	500 mm
CRSM-53/13-380/S(S10)	577922-001	Product Drawing	-	43 mm	17 mm	-	2 mm	CRSM-53/13	53 mm	-	375 mm
CRSM-250/98-1000/S(S1)	595947-001	Product Drawing	-	200 mm	105 mm	-	1.8 mm	CRSM-250/98	250 mm	-	1000 mm
CRSM-84/20-1200/239(S5)	639063-000	Product Drawing	Worldwide	50 mm	24 mm	Non-Flame-Retardant	2 mm	CRSM-84/20	86 mm	21 mm	1200 mm
CRSM-84/20-1200/S(S5)	639063-001	Product Drawing	-	68 mm	24 mm	-	2 mm	CRSM-84/20	84 mm	-	1200 mm
CRSM-107/29-750/S(S6)	651087-001	Product Drawing	-	86 mm	32 mm	-	2 mm	CRSM-107/29	107 mm	-	750 mm
CRSM-198/55-750/S(S1)	690469-001	Product Drawing	-	160 mm	60 mm	-	1.8 mm	CRSM-198/55	198 mm	-	750 mm
CRSM-250/98-1500/S(S1)	790949-001	Product Drawing	-	200 mm	105 mm	-	1.8 mm	CRSM-250/98	250 mm	-	1500 mm
CRSM-34/10-750/S(S10)	822895-001	Product Drawing	-	27 mm	11 mm	-	2 mm	CRSM-34/10	34 mm	-	750 mm
CRSM-34/10-500/S(S10)	832439-001	Product Drawing	-	27 mm	11 mm	-	2 mm	CRSM-34/10	34 mm	-	500 mm
CRSM-198/55-1500/S(B5)	892261-001	Product Drawing	-	160 mm	60 mm	-	1.8 mm	CRSM-198/55	198 mm	-	1500 mm
CRSM-84/20-1000/S(S5)	953639-001	Product Drawing	-	68 mm	24 mm	-	2 mm	CRSM-84/20	84 mm	-	1000 mm
CRSM-143/36-500/239(S5)	974023-000	Product Drawing	Worldwide	86 mm	33 mm	Non-Flame-Retardant	1.8 mm	CRSM-143/36	144 mm	28 mm	500 mm
CRSM-143/36-500/S(S5)	974023-001	Product Drawing	-	115 mm	39 mm	-	1.8 mm	CRSM-143/36	143 mm	-	500 mm
CRSM-84/20-750/S(S8)	985043-001	Product Drawing	-	68 mm	24 mm	-	2 mm	CRSM-84/20	84 mm	-	750 mm
CRSM-84/20-250/S(S10)	996715-001	Product Drawing	-	68 mm	24 mm	-	2 mm	CRSM-84/20	84 mm	-	250 mm
CRSM-84/20-350/S-CS288	CN2266-001	Product Drawing	-	68 mm	24 mm	-	2 mm	CRSM-84/20	84 mm	-	350 mm
CRSM-143/36-1200/239(B10)	CR9808-000	Product Drawing	Worldwide	86 mm	33 mm	Non-Flame-Retardant	1.8 mm	CRSM-143/36	144 mm	28 mm	1200 mm
CRSM-143/36-1200/S(B10)	CR9808-001	Product Drawing	-	115 mm	39 mm	-	1.8 mm	CRSM-143/36	143 mm	-	1200 mm
CRSM-107/29-1500/239(B5)	142631-000	Product Drawing	Worldwide	65 mm	31 mm	Non-Flame-Retardant	2 mm	CRSM-107/29	108 mm	27 mm	1500 mm
CRSM-143/36-1000/239(B5)	297113-000	Product Drawing	Worldwide	86 mm	33 mm	Non-Flame-Retardant	1.8 mm	CRSM-143/36	144 mm	28 mm	1000 mm

Overview

Our Raychem CRSM Wraparound Sleeve fit easily onto the cable to repair the outer jacket and seal against moisture.

Our Raychem CRSM Wraparound Sleeve for Cable Repair are designed using heat shrink technology. The closure system consists of a raised rail profile and a stainless steel channel that can be installed without any special tools. When heat is applied to the wraparound heat shrink cable jacket repair sleeves, they shrink tightly to the original smaller extruded diameter and to the cable shape. Their hot-melt sealant provides a reliable environmental seal. The Wraparound Sleeve for Cable Repair are halogen-free and stabilized against UV radiation, which ensures long-term reliability in harsh environments.

The Wraparound Sleeves are mainly used as insulation, sealing, or as rejacketing material for 1000V power cables, as well as cable jacket repair for medium voltage power cables and may also be used as protection on various substrates.

Our wraparound system is very easy to install and is particularly suitable when installation space is tight or difficult to reach.

Key Features

Fast and easy fitting thanks to the channel which can be installed without any special tools
Reliable closure system and environmental seal with excellent bonding

Cross-linked polyolefin material, halogen-free and non-corrosive
RoHS and REACH compliant
Unlimited shelf-life when stored under normal conditions
Qualified to ANSI C119.1 and EN 50393:2015

Wraparound Sleeve for Cable Repair

Improving Grid Reliability

Our Raychem Insulation and Protection Solutions

Discover our Range of Power Cable Wraps

FAQ

Frequently Asked Questions

Question: For which application can TE’s Raychem CRSM Wraparound Sleeve be used?

Answer: Our Raychem Wraparound Sleeves can be used to repair the outer jacket of the cable and seal against moisture. The closure system consists of a raised rail profile and a stainless-steel channel.

Question: With what type of cable can I use the Wraparound Sleeve?

Answer: Our Wraparound Sleeves are for insulating, sealing or as rejacketing material for 1000V power cables, as well as cable jacket repair for medium voltage power cables. They may also be used as protection on various substrates, where installation space is tight or difficult to reach.

Question: What are the heat shrink Wraparound Sleeves made of?

Answer: The Wraparound Sleeves are made of our Raychem heat shrink material. This specially-formulated medium-wall, cross-linked polyolefin shrinks to its original smaller extruded diameter when heat is applied. The heat shrink material is comprised of polymeric materials exposed to a high-energy electron beam that causes permanent cross-linking, or intermolecular joining, of adjacent molecules. Due to cross-linking, the heat shrink material loses its melting properties allowing it to be heated to temperatures beyond the crystalline melting point without melting. Above this temperature, heat shrink can be expanded and formed in shapes that will remain in position while the temperature decreases below the crystalline melting point again.

When properly installed our Raychem heat-shrinkable repair sleeves are long-lasting products that will help you improve your grid connectivity and reliability for decades.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Material System Crosslinked Polyolefin
Power Cable Wrap Technology Heat Shrink
Power Cable Wrap Product Type Heat Shrink Wraparound
Adhesive Coating Yes
Wall Style (Excluding Adhesive) Single
Power Cable Wrap Shrink Ratio >3:1
Power Cable Wrap Size Code CRSM-107/29, CRSM-143/36, CRSM-198/55, CRSM-250/98, CRSM-3-870, CRSM-34/10, CRSM-5-1200, CRSM-53/13, CRSM-84/20
Product Family CRSM
Component Design Heat Shrink
Coating Style Inline

Electrical Characteristics

Power Cable Wrap Voltage Rating (kV) ≤ 1

Body Features

Flexibility Semi-Rigid
Color Black

Mechanical Attachment

Mechanical Reinforcement No

Dimensions

Application Diameter (Max) (mm) 21, 27, 32, 43, 50, 65, 68, 86, 115, 120, 150, 160, 200
Application Diameter (Max) (in) .826, 1.062, 1.259, 1.692, 1.968, 2.559, 2.677, 3.385, 4.527, 4.724, 5.905, 6.299, 7.874
Application Diameter (Min) (mm) 11, 17, 24, 31, 32, 33, 39, 56, 60, 103, 105
Application Diameter (Min) (in) .433, .669, .944, 1.22, 1.259, 1.299, 1.535, 2.204, 2.362, 4.055, 4.133
Wall Thickness Medium
Recovered Wall Thickness (Max) (mm) 1.7, 1.8, 2, 2.1, 2.4
Power Cable Wrap Expanded Inside Diameter (Min) (mm) 34, 35, 53, 54, 84, 85, 86, 107, 108, 143, 144, 198, 203, 250, 257
Power Cable Wrap Expanded Inside Diameter (Min) (in) 1.338, 1.377, 2.086, 2.125, 3.307, 3.346, 3.385, 4.212, 4.251, 5.629, 5.669, 7.795, 7.992, 9.842, 10.11, 10.118
Power Cable Wrap Recovered Inside Diameter (Max) (mm) 9, 10, 13, 15, 20, 21, 27, 28, 29, 36, 50, 55, 91
Sleeve Length (mm) 150, 200, 250, 350, 375, 400, 500, 600, 650, 750, 870, 1000, 1200, 1500, 2000
Sleeve Length (in) 5.905, 7.874, 9.842, 9.846, 13.779, 14.763, 15.748, 19.685, 23.622, 29.527, 29.59, 34.251, 39.37, 47.244, 59.055, 78.74
Cut Length (mm) 1000, 1200, 150, 1500, 200, 2000, 250, 350, 375, 400, 500, 600, 650, 750, 870

Usage Conditions

Power Cable Wrap Flammability Non-Flame-Retardant
Environmental Resistance Moisture, Weathering, Rain, Salt Water, Contaminated Water …, Water-Blocking
Chemical Resistance Transformer Oil & Hydrocarbons (Both, Depending on Type, Conditions & Exposure Time), Transformer Oil (VDE0370)

Operation/Application

UV-Stabilized Yes
Mechanical Resistance Against Mechanical Impact, Against Mechanical Impact or Damage
Free of Lead, Cadmium, Heavy Metals Yes
Low Smoke Emission No, Yes
Non-Toxic & Non-Corrosive Emission Yes
Application Cable Jacketing, Cable Repair, Rejacketing/Outer Protection on Joints/Splices, Insulation & Protection, Rail Application, Marine Application, Industrial Application, Underground Application, Multi-Purpose Application, Cable Rejacketing
Marine-Offshore-Shipbuilding Certified No, Yes
Thermal Resistance Applicable for Low Temperatures, Applicable for Low Temperatures, Applicable for High Temperatures, Flame-Retardant

Industry Standards

UL Rating No
Standards ANSI C119.1, EN 50393, IEC 60684-2, IEC 60684-3-214, IEC 60684-3-246 IEC 60684-3-247, HD631.2
CSA Certified No

Product Availability

Power Cable Wrap Product Availability Worldwide

Packaging Features

Packaging Method Pieces, Wrap-Around with Channels & Clips in Polybag, Wraparound Sleeve with Channels Included

Other

Product Use Cable Jacket Repair, Wrap-Around, Sealed Cable Tap Splice
Other Colors Available No
Emission-Free No

Reference Number

TE Internal Number CAT-CRSM

Related Materials

Datasheets & Catalog Pages

CRSM WRAPAROUND SLEEVES IEC pdf German
CRSM WRAPAROUND SLEEVES IEC pdf English
CRSM WRAPAROUND SLEEVES IEEE pdf English

Wraparound Sleeve for Cable Repair

Product Features

Power Cable Wrap Technology: Heat Shrink

Power Cable Wrap Voltage Rating(kV): ≤ 1

Power Cable Wrap Product Type: Heat Shrink Wraparound

Adhesive Coating: Yes

Flexibility: Semi-Rigid

Overview

Key Features

Wraparound Sleeve for Cable Repair

Improving Grid Reliability

Our Raychem Insulation and Protection Solutions

FAQ

Frequently Asked Questions

Features

Product Type Features

Material System Crosslinked Polyolefin

Power Cable Wrap Technology Heat Shrink

Power Cable Wrap Product Type Heat Shrink Wraparound

Adhesive Coating Yes

Wall Style (Excluding Adhesive) Single

Power Cable Wrap Shrink Ratio >3:1

Power Cable Wrap Size Code CRSM-107/29, CRSM-143/36, CRSM-198/55, CRSM-250/98, CRSM-3-870, CRSM-34/10, CRSM-5-1200, CRSM-53/13, CRSM-84/20

Product Family CRSM

Component Design Heat Shrink

Coating Style Inline

Electrical Characteristics

Power Cable Wrap Voltage Rating (kV) ≤ 1

Body Features

Flexibility Semi-Rigid

Color Black

Mechanical Attachment

Mechanical Reinforcement No

Dimensions

Application Diameter (Max) (mm) 21, 27, 32, 43, 50, 65, 68, 86, 115, 120, 150, 160, 200

Application Diameter (Max) (in) .826, 1.062, 1.259, 1.692, 1.968, 2.559, 2.677, 3.385, 4.527, 4.724, 5.905, 6.299, 7.874

Application Diameter (Min) (mm) 11, 17, 24, 31, 32, 33, 39, 56, 60, 103, 105

Application Diameter (Min) (in) .433, .669, .944, 1.22, 1.259, 1.299, 1.535, 2.204, 2.362, 4.055, 4.133

Wall Thickness Medium

Recovered Wall Thickness (Max) (mm) 1.7, 1.8, 2, 2.1, 2.4

Power Cable Wrap Expanded Inside Diameter (Min) (mm) 34, 35, 53, 54, 84, 85, 86, 107, 108, 143, 144, 198, 203, 250, 257

Power Cable Wrap Expanded Inside Diameter (Min) (in) 1.338, 1.377, 2.086, 2.125, 3.307, 3.346, 3.385, 4.212, 4.251, 5.629, 5.669, 7.795, 7.992, 9.842, 10.11, 10.118

Power Cable Wrap Recovered Inside Diameter (Max) (mm) 9, 10, 13, 15, 20, 21, 27, 28, 29, 36, 50, 55, 91

Sleeve Length (mm) 150, 200, 250, 350, 375, 400, 500, 600, 650, 750, 870, 1000, 1200, 1500, 2000

Sleeve Length (in) 5.905, 7.874, 9.842, 9.846, 13.779, 14.763, 15.748, 19.685, 23.622, 29.527, 29.59, 34.251, 39.37, 47.244, 59.055, 78.74

Cut Length (mm) 1000, 1200, 150, 1500, 200, 2000, 250, 350, 375, 400, 500, 600, 650, 750, 870

Usage Conditions

Power Cable Wrap Flammability Non-Flame-Retardant

Environmental Resistance Moisture, Weathering, Rain, Salt Water, Contaminated Water …, Water-Blocking

Chemical Resistance Transformer Oil & Hydrocarbons (Both, Depending on Type, Conditions & Exposure Time), Transformer Oil (VDE0370)

Operation/Application

UV-Stabilized Yes

Mechanical Resistance Against Mechanical Impact, Against Mechanical Impact or Damage

Free of Lead, Cadmium, Heavy Metals Yes

Low Smoke Emission No, Yes

Non-Toxic & Non-Corrosive Emission Yes

Application Cable Jacketing, Cable Repair, Rejacketing/Outer Protection on Joints/Splices, Insulation & Protection, Rail Application, Marine Application, Industrial Application, Underground Application, Multi-Purpose Application, Cable Rejacketing

Marine-Offshore-Shipbuilding Certified No, Yes

Thermal Resistance Applicable for Low Temperatures, Applicable for Low Temperatures, Applicable for High Temperatures, Flame-Retardant

Industry Standards

UL Rating No

Standards ANSI C119.1, EN 50393, IEC 60684-2, IEC 60684-3-214, IEC 60684-3-246 IEC 60684-3-247, HD631.2

CSA Certified No

Product Availability

Power Cable Wrap Product Availability Worldwide

Packaging Features

Packaging Method Pieces, Wrap-Around with Channels & Clips in Polybag, Wraparound Sleeve with Channels Included

Other

Product Use Cable Jacket Repair, Wrap-Around, Sealed Cable Tap Splice

Other Colors Available No

Emission-Free No

Reference Number

TE Internal Number CAT-CRSM

Related Materials

Datasheets & Catalog Pages

Chat
