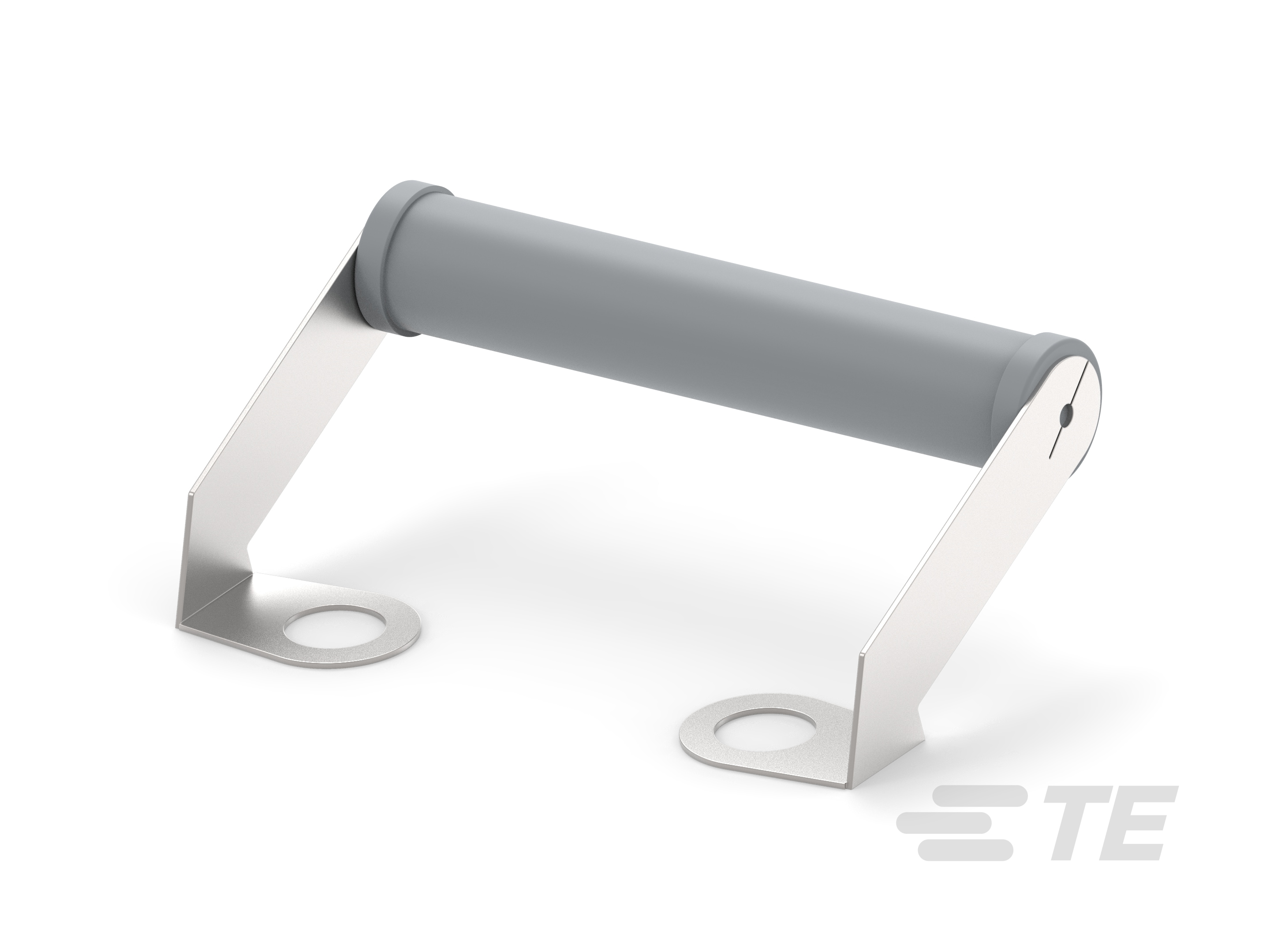

Resistor Cap Discharge YP10

Resistor Cap Discharge YP10-CAT-C339-Y89
  • CGS
|
  • CGS YP
Resistor High Power Capacitor Discharge 10W
More Less

Product Features

  • Resistor Type: Power Resistor

  • Number of Terminations: 2

  • Packaging Method: Loose Piece - Box

  • Passive Component Tolerance(%): 5

  • Element Type: Wire Wound

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Resistor Type  Power Resistor

  • Element Type  Wire Wound

Configuration Features

  • Number of Resistors  1

Electrical Characteristics

  • Operating Voltage (VAC) 570

  • Passive Component Tolerance (%) 5

  • Resistance Class  1kΩ – 1MΩ

  • Resistance Value (Ω) 2K, 10K, 18K, 27K, 47K

  • Power Rating (W) 10

Termination Features

  • Number of Terminations  2

  • Chassis Mount Resistor Termination Type  Mounting Terminals

Mechanical Attachment

  • Panel Mount Feature Type  Mounting Brackets

Dimensions

  • Product Diameter  9.5 mm [ .374 in ]

  • Product Length  50 mm [ 1.969 in ]

Usage Conditions

  • Operating Temperature Range (°C) -55 – 350

  • Temperature Coefficient (ppm/°C) ±30

Packaging Features

  • Packaging Method  Loose Piece - Box

Reference Number

  • TE Internal Number CAT-C339-Y89
