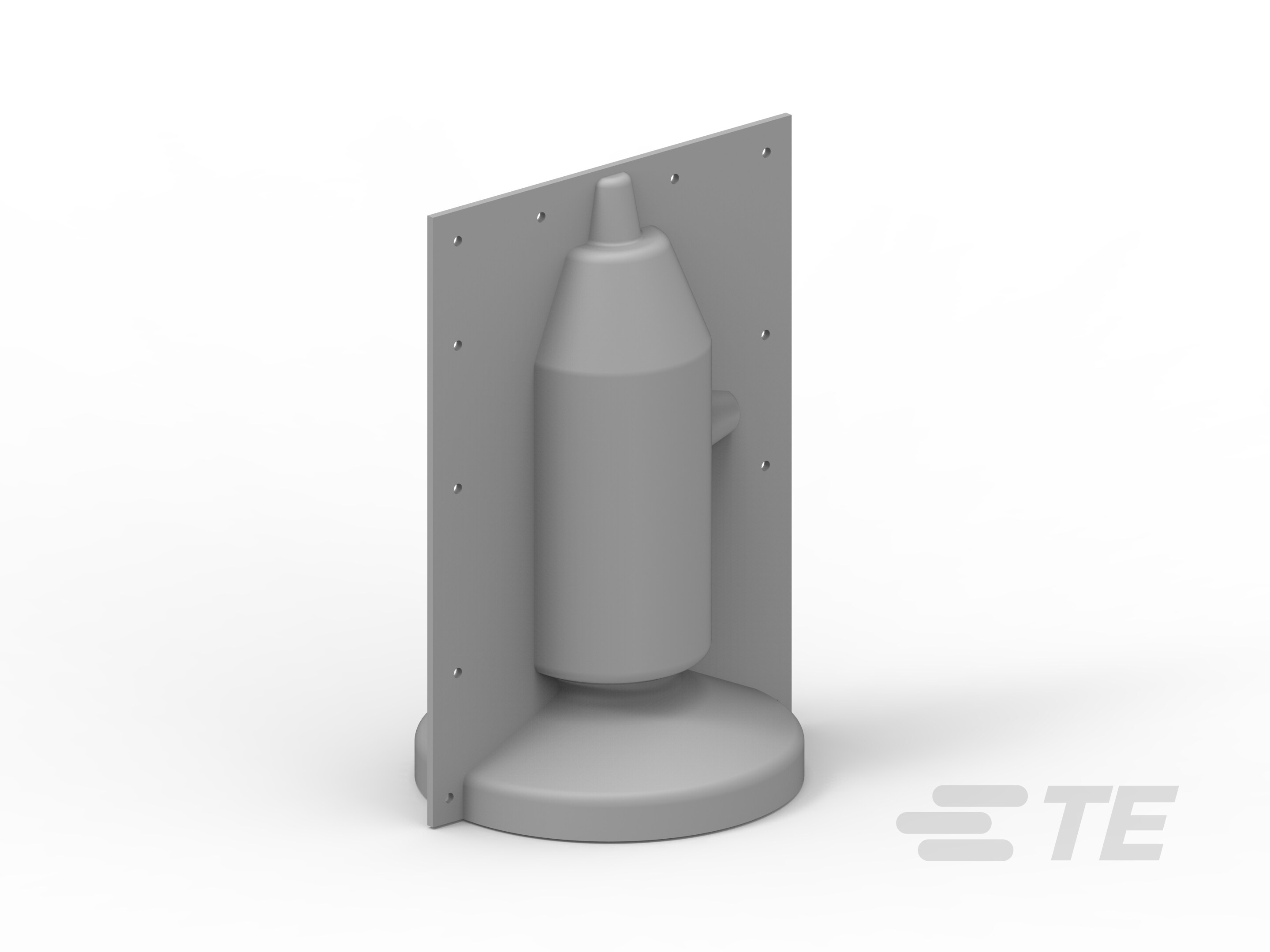

Insulating Recloser Covers

Insulating Recloser Covers-CAT-BCIC-RECC
TE Connectivity’s (TE) Raychem insulating covers are designed to prevent animal electrocution and related outages on reclosers operating from 15kV to 35 kV.
More Less

Product Features

  • LV/MV Insulating Cover Product Availability: Americas

  • LV/MV Insulating Cover Technology: Cold Applied

  • LV/MV Insulating Cover Voltage Class(kV): ≤ 35

  • LV/MV Insulating Cover Product Type: Cover

  • Equipment: Bushings/Insulators

Available from

LADD Inc

Overview

There are numerous cover designs available to fit a wide variety of reclosers. TE also offers tubing and line hose to insulate leads as well as BCAC covers to protect lightning arresters on recloser units.

The one piece hinged design is easily and quickly installed around the top skirts and secured using the supplied push pins to ensure years of reliable service. The cover can be re-entered for maintenance needs and then reused, thus lowering overall lifetime costs.

KEY FEATURES

  • Reliable outage protection
  • Rugged, non-tracking crosslinked polymer
  • Rated for 35 kV reclosures

Know More

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Material System  Polyolefin

  • LV/MV Insulating Cover Technology  Cold Applied

  • LV/MV Insulating Cover Product Type  Cover

  • Insulator Type  Bushing

  • Insulator Type/ANSI  Polymer or Porcelain

Electrical Characteristics

  • LV/MV Insulating Cover Voltage Class (kV) ≤ 35

Body Features

  • Insulator Material  Porcelain

  • Color  Gray

Dimensions

  • Insulator Outside Skirt Diameter Range (mm) 198.12, 215.9

  • Insulator Outside Skirt Diameter Range (in) 7.8, 8.5

  • Insulator Core Diameter Range (mm) 44.45 – 95.25, 50.8 – 114.3

  • Insulator Core Diameter Range (in) 1.75 – 3.75, 2 – 4.5

Operation/Application

  • Equipment  Bushings/Insulators

  • Application Type  Overhead, Substation

  • Energized Installation  No

  • Low Halogen  Yes

Product Availability

  • LV/MV Insulating Cover Product Availability  Americas

Reference Number

  • TE Internal Number CAT-BCIC-RECC
