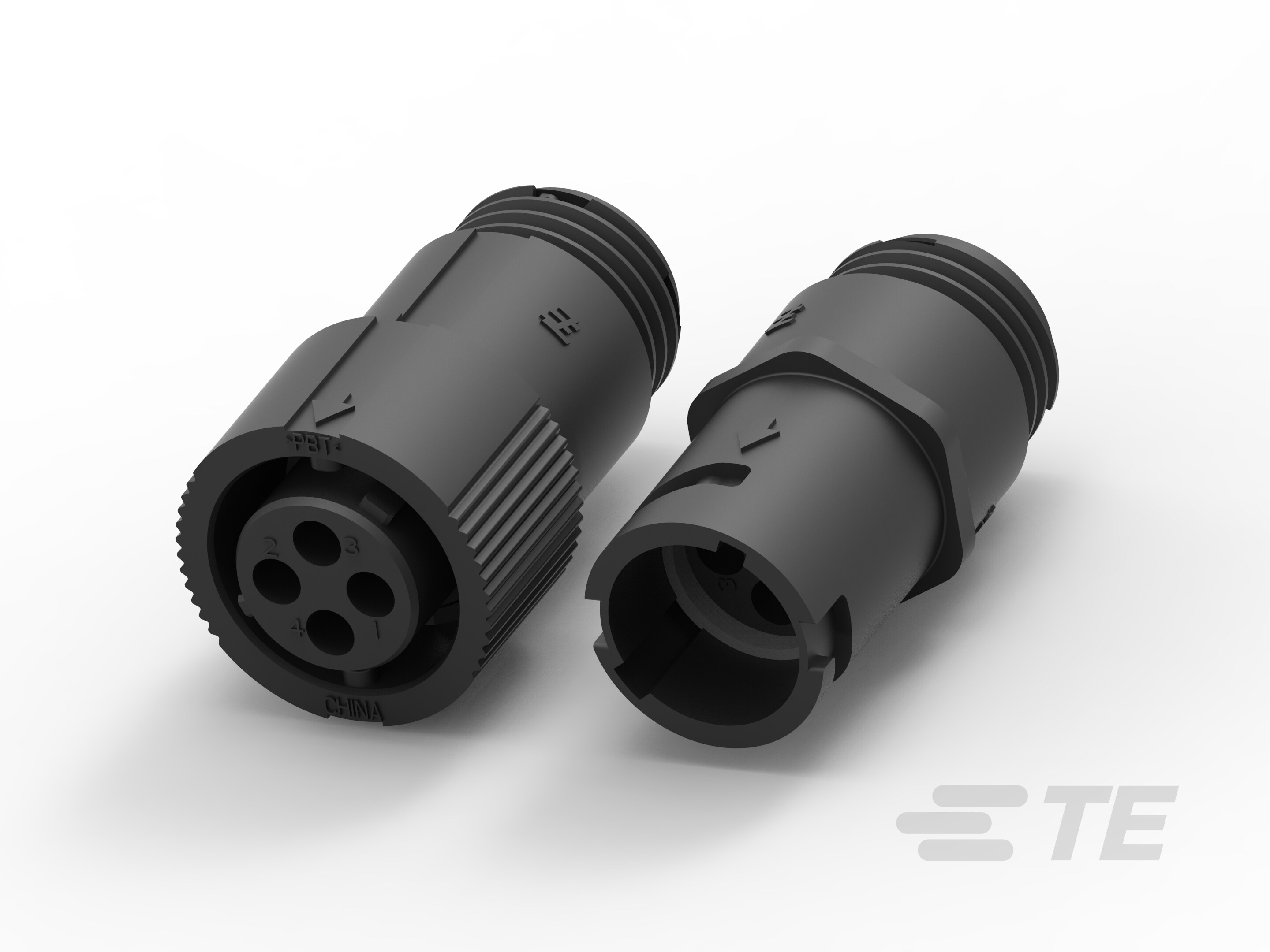

Mini Circular Plastic Connectors (CPC)

Please review product documents or contact us for the latest agency approval information.

• Connector Seal & Plug Type  Peripheral, Wire Entry Seal

• Connector Product Type  Housing

• Connector System  Wire-to-Wire

• Sealable  Yes

• Connector & Contact Terminates To  Wire & Cable

• Connector & Housing Type  Plug, Receptacle

• Circular Connector Shell Type  All Plastic

• Number of Positions  1, 2, 3, 4, 5, 6, 7, 8, 9

• Number of Power Positions  0

• Number of Signal Positions  1, 2, 3, 4, 5, 6, 7, 8, 9

• Reverse Numbering  Without

• Operating Voltage (VDC) 250

• Operating Voltage (VAC) 250

• Reverse Gender  No

• Contact Type  Pin, Socket

• Contact Current Rating (Max) (A) 5.9, 7.5

• Termination Method to Wire & Cable  Crimp

• Thread Size  1/2-20 UNF-2A, 3/4-20 INEF-2A, 3/4-20 UNEF 2A, 3/4-20 UNEF-2A, 5/8-24 UNEF-2A and 1/2-20 UNF-2A

• Mating Retention Type  Threaded Coupling

• Mating Alignment  With

• Connector Mounting Type  Panel Mount

• Mating Retention  With

• Panel Mount Feature  With, Without

• Housing Color  Black

• Housing Material  Thermoplastic

• Circular Connector Shell Size  11, 8

• Compatible Insulation Diameter Range (mm) .89 – 1.5, 1.5, 1.5 – 2.39

• Compatible Insulation Diameter Range (in) .035 – .059, .059 – .094, .059 – .11

• Wire Size (AWG) 30 – 18

• Wire Size (mm²) .0509 – .823

• Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

• Fluid Resistance  Immersion

• Circuit Application  Power & Signal

• Shielded  No

• UL Flammability Rating  UL 94V-0

• Packaging Quantity  100, 800

• Packaging Method  Bag, Carton, Package
