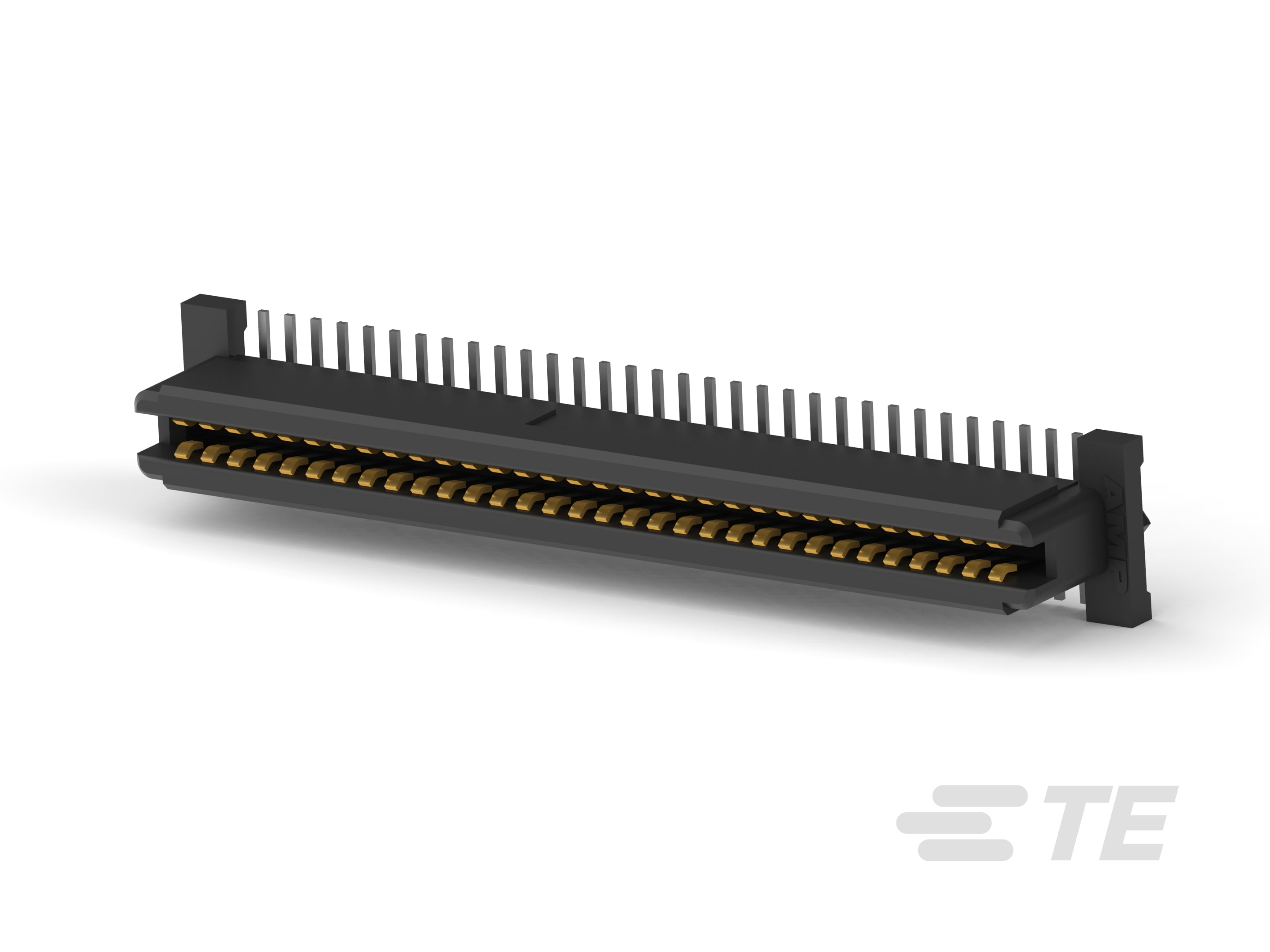

Free Height Receptacle Conn: Board-Board, Vertical, 84, 1mm

Free Height Receptacle Conn: Board-Board, Vertical, 84, 1mm-CAT-314-RCB84
Free Height PCB mount receptacle assembly with 84 positions, intended for board to board parallel stacking and having a centerline pitch of 1mm with vertical PCB mount orientation. These are surface mounted and used for signal circuit application.
More Less

Product Features

  • PCB Connector Assembly Type: PCB Mount Receptacle

  • PCB Mount Orientation: Vertical

  • Connector System: Board-to-Board

  • Number of Positions: 84

  • Centerline (Pitch)(mm): 1

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Assembly Type  PCB Mount Receptacle

  • Connector System  Board-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • Stackable  Yes

  • Number of Columns  42

  • PCB Mount Orientation  Vertical

  • Number of Positions  84

  • Board-to-Board Configuration  Parallel

Electrical Characteristics

Signal Characteristics

Body Features

  • Primary Product Color  Black

Contact Features

  • Contact Base Material  Phosphor Bronze

  • PCB Contact Termination Area Plating Material  Tin, Tin-Lead

  • Contact Shape & Form  Single Beam, Square

  • PCB Contact Termination Area Plating Material Finish  Matte

  • Contact Underplating Material Thickness  1.27 µm [ 50 µin ]

  • Mating Tab Thickness  .2 mm [ .008 in ]

  • Mating Tab Width  .63 mm [ .024 in ]

  • Contact Layout  Inline

  • PCB Contact Termination Area Plating Material Thickness (µm) 3.81, 3.81 – 6.35

  • PCB Contact Termination Area Plating Material Thickness (µin) 150, 150 – 250

  • Contact Mating Area Plating Material  Gold

  • Contact Mating Area Plating Material Thickness (µm) .00076, .76, 1.27

  • Contact Mating Area Plating Material Thickness (µin) 29.92, 29.9212, 30, 50

  • Contact Type  Receptacle, Socket

  • Contact Current Rating (Max) (A) .8, 1

  • Contact Mating Area Length (mm) 2

Termination Features

  • Termination Method to Printed Circuit Board  Surface Mount

  • Rectangular Termination Post & Tail Width (mm) .3

  • Rectangular Termination Post & Tail Width (in) .011, .012

  • Rectangular Termination Post & Tail Thickness  .2 mm [ .008 in ]

Mechanical Attachment

  • PCB Mount Retention Type  None

  • Mating Retention  Without

  • Mating Alignment  Without

  • Mating Alignment Type  None

  • PCB Mount Retention  Without

  • PCB Mount Alignment  With, Without

  • PCB Mount Alignment Type  Locating Posts

Housing Features

  • Mating Entry Location  Top

  • Centerline (Pitch)  1 mm [ .039 in ]

  • Housing Material  High Temperature Thermoplastic, Matte, Thermoplastic

Dimensions

  • Connector Width  3.81 mm [ 150 in ]

  • Connector Height (mm) 5.37, 7.37, 8.4, 10.37

  • Connector Height (in) .211, .29, .33, .408

  • Stack Height (mm) 8, 9, 10, 11, 12, 13, 14, 15

  • Stack Height (in) .394, .472, .512, .591

  • Connector Length  44.22 mm [ 1.74 in ]

Usage Conditions

  • Operating Temperature Range  -55 – 110 °C [ -67 – 230 °F ]

Operation/Application

  • Assembly Process Feature  Pick and Place Cover

  • Circuit Application  Signal

Industry Standards

  • Industry Standard  IEEE 1386

  • Compatible With Approved Standards Products  CSA LR7189, UL E28476

  • Compatible With Agency/Standards Products  CSA, UL

  • UL Flammability Rating  UL 94V-0

  • UL Rating  Listed

Packaging Features

  • Packaging Quantity  300, 400, 450, 650

  • Packaging Method  Tape & Reel

Reference Number

  • TE Internal Number CAT-314-RCB84
