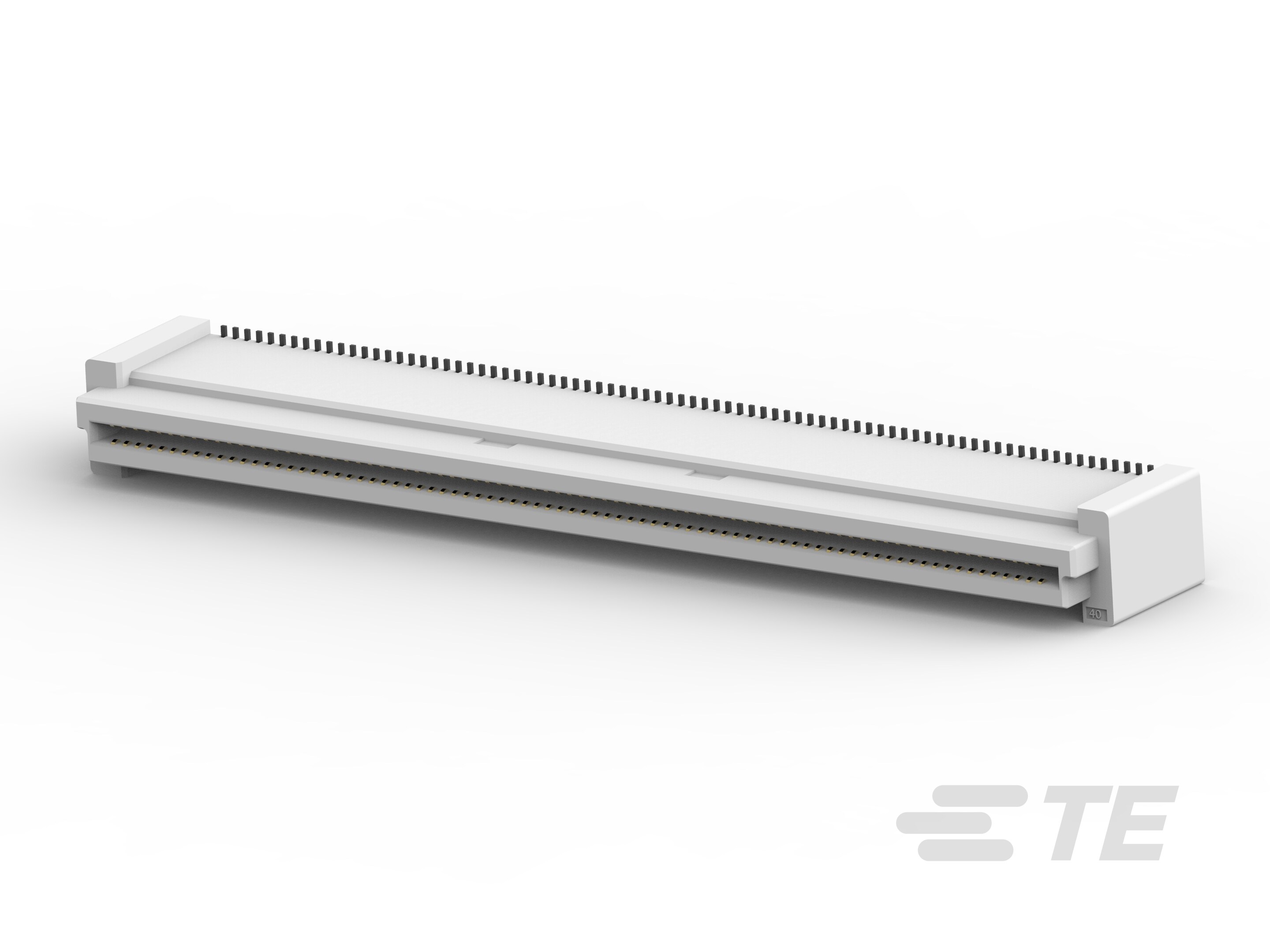

Free Height Receptacle Conn: Board-Board, Vertical, 180, 0.8mm

Free Height Receptacle Conn: Board-Board, Vertical, 180, 0.8mm-CAT-313-RCB180
Free Height PCB mount receptacle assembly with 180 positions, intended for board to board parallel stacking application and having a centerline pitch of 0.8mm with vertical PCB mount orientation. These are surface mounted and used for signal circuit application.
More Less

Product Features

  • PCB Connector Assembly Type: PCB Mount Receptacle

  • PCB Mount Orientation: Vertical

  • Connector System: Board-to-Board

  • Number of Positions: 180

  • Centerline (Pitch)(mm): .8

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Assembly Type  PCB Mount Receptacle

  • Connector System  Board-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • Stackable  Yes

  • PCB Mount Orientation  Vertical

  • Number of Positions  180

  • Board-to-Board Configuration  Parallel

Electrical Characteristics

Body Features

  • Primary Product Color  Natural

  • Assembly Process Feature Material  Steel

Contact Features

  • Contact Base Material  Copper Alloy

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Mating Area Plating Material Finish  Matte

  • Contact Shape & Form  Square

  • PCB Contact Termination Area Plating Material Finish  Matte

  • Mating Tab Thickness (mm) .2, .25

  • Mating Tab Thickness (in) .008, .01

  • Mating Tab Width (mm) .4, .5, .8

  • Mating Tab Width (in) .016, .02, .031

  • Contact Layout  Inline

  • PCB Contact Termination Area Plating Material Thickness  2 µm [ 78.74 µin ]

  • Contact Mating Area Plating Material  Gold

  • Contact Mating Area Plating Material Thickness (µm) .2, .76

  • Contact Mating Area Plating Material Thickness (µin) 8, 30

  • Contact Type  Socket

  • Contact Current Rating (Max) (A) .5

Termination Features

  • Termination Method to Printed Circuit Board  Surface Mount

  • Rectangular Termination Post & Tail Width  .3 mm [ .012 in ]

  • Rectangular Termination Post & Tail Thickness  .2 mm [ .008 in ]

Mechanical Attachment

  • Mating Alignment  With

  • Mating Alignment Type  Polarization

  • PCB Mount Retention  Without

  • PCB Mount Alignment  With

  • Connector Mounting Type  Board Mount

  • PCB Mount Alignment Type  Positioning Bosses

  • Mounting Alignment Feature Length  .5 mm [ .02 in ]

Housing Features

  • Mating Entry Location  Top

  • Centerline (Pitch)  .8 mm [ .031 in ]

  • Housing Material  Matte

Dimensions

  • Connector Height (mm) 5, 9, 13, 17

  • Connector Height (in) .197, .354, .512, .669

  • Stack Height (mm) 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

  • Stack Height (in) .197, .236, .276, .315, .354, .394, .433, .472, .512, .551, .591, .63, .669, .709, .748, .787

Usage Conditions

Operation/Application

  • Assembly Process Feature  None, Pick and Place Cover

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  6, 100, 200, 450, 700

  • Packaging Method  Box, Tape & Reel, Tube

  • Packaging Reel Diameter (in) .5

Reference Number

  • TE Internal Number CAT-313-RCB180
