1-794612-0

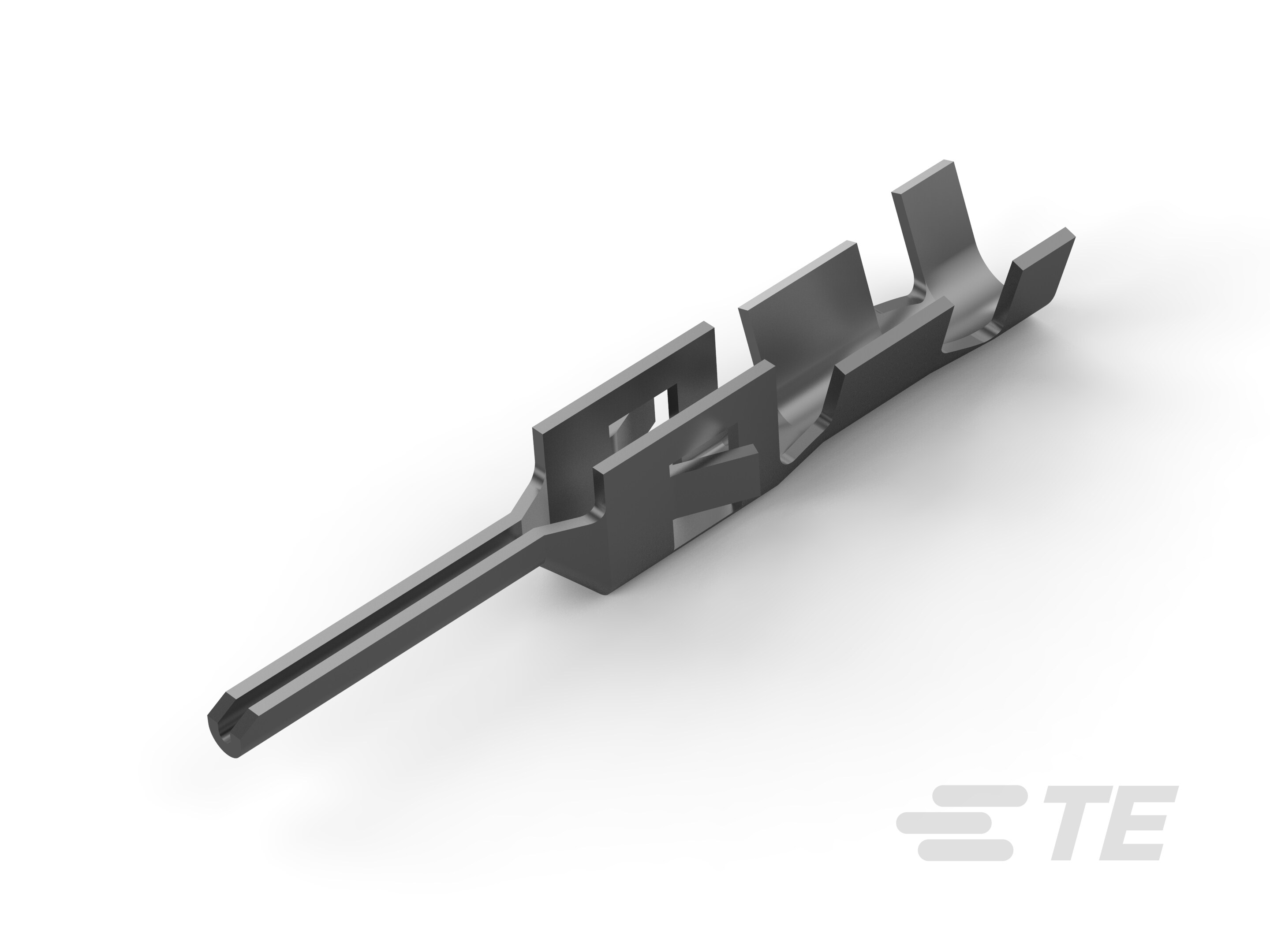

Pin Contact, Tin, 250 VAC, 250 VDC, Locking Lance Contact Retention, 24 – 20 AWG Wire Size, .2 – .5 mm² Wire Size, Crimp, Brass, Micro MATE-N-LOK
1-794612-0
Pin Contact, Tin, 250 VAC, 250 VDC, Locking Lance Contact Retention, 24 – 20 AWG Wire Size, .2 – .5 mm² Wire Size, Crimp, Brass, Micro MATE-N-LOK
-
- MATE-N-LOK
- Micro MATE-N-LOK
- TE Internal #: 1-794612-0
- TE Internal Description: PIN CONT 20-24 TIN PLATE L/P
-
Packaging Method : Bag
-
Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]
-
Wire Size (AWG): 24 – 20
-
Contact Orientation : Straight
-
Wire Insulation Support : Without
Documents
Product Drawings
- PLUG CONTACT, CRIMP SNAP, 20-24 AWG LOOSE PIECE, MICRO MATE-N-LOK(TM) ENG_CD_794612_D.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_1-794612-0_C1.pdf English
- 3D_CVM_CVM_1-794612-0_C.pdf 3D
- Customer View Model ENG_CVM_1-794612-0_C1.3d_igs.zip English
- ENG_CVM_1-794612-0_C1.3d_stp.zip English
- ENG_CVM_1-794612-0_C1.2d_dxf.zip English
- ENG_CVM_CVM_1-794612-0_C.2d_dxf.zip English
- ENG_CVM_CVM_1-794612-0_C.3d_igs.zip English
- ENG_CVM_CVM_1-794612-0_C.3d_stp.zip English
Datasheets & Catalog Pages
- SOFT_SHELL_PIN_AND_SOCKET_CONNECTORS_CATALOG ENG_CS_82181_SOFTSHELL_HIGH_DENSITY_0508.pdf English
- MICRO MATE-N-LOK CONNECTOR SYSTEM ENG_DS_micro-mate-n-lok-connector-qrg_0721.pdf English
Product Specifications
- Application Specification ENG_SS_114-13000_H.pdf English
- Product Specification ENG_SS_108-1836_E.pdf English
