media isolated pressure sensors

MEDIA ISOLATED PRESSURE SENSORS

TE media isolated pressure sensors are suitable for use in harsh environments of liquids or gases.

A media isolated pressure sensor measures gauge, differential or absolute pressure by isolating a silicon strain gage chip in air-evacuated oil with a stainless steel, titanium, or nickel alloy diaphragm. TE Connectivity (TE) manufactures media isolated pressure sensors for a variety of applications. Mechanically, these sensors are available with various process connections, diameters, and materials. Sensors can be configured in various pressure ranges as well as gage, vacuum gage, absolute, and differential pressure. With millivolt, analog, and digital output signals, combined pressure and temperature signals, the TE portfolio of sensors further enhances the ability to select the best option for the application.

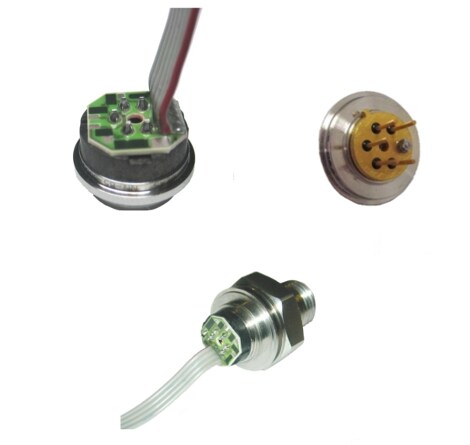

85 Series mV Output Pressure Sensors

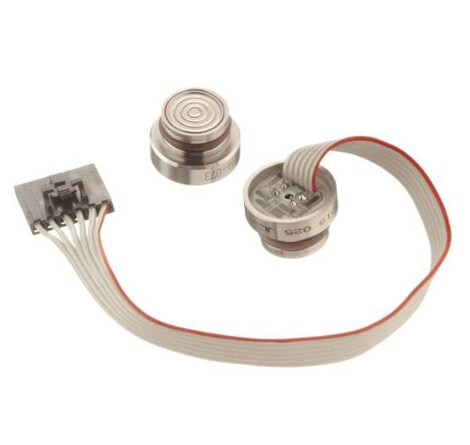

85FM mV Output Pressure Sensor

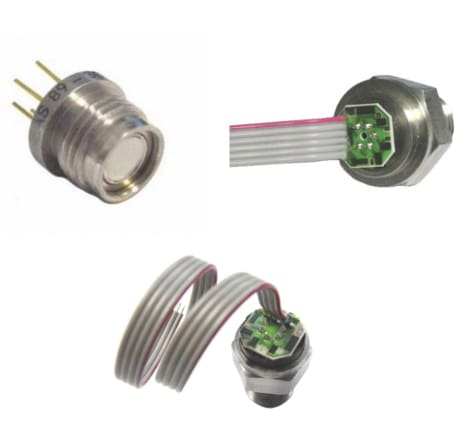

89 Series mV Output Pressure Sensors

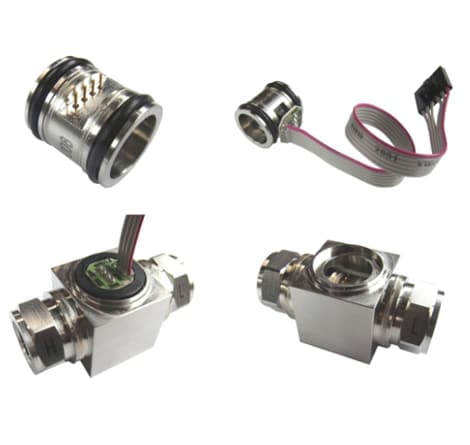

DP86 Series mV Output Pressure Sensors
blank

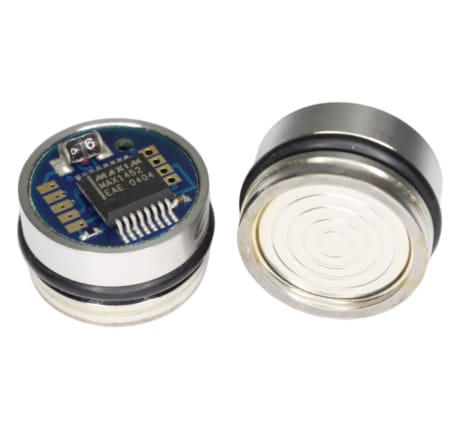

86A Analog Pressure Sensor Module

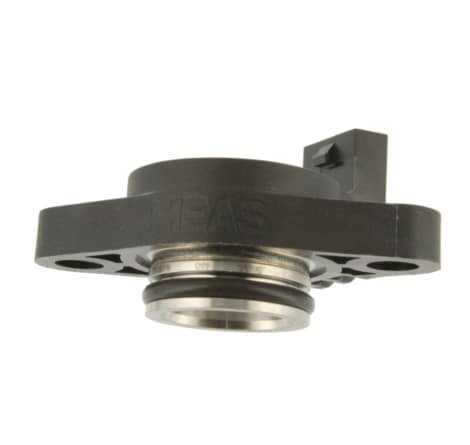

U86B Analog Pressure Sensor Module
blank

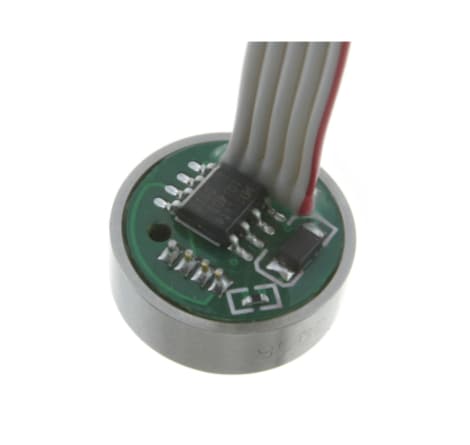

85BSD Digital Output Pressure Sensor

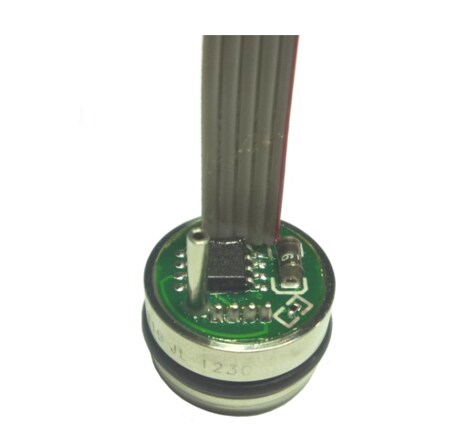

86BSD Digital Output Pressure Sensor

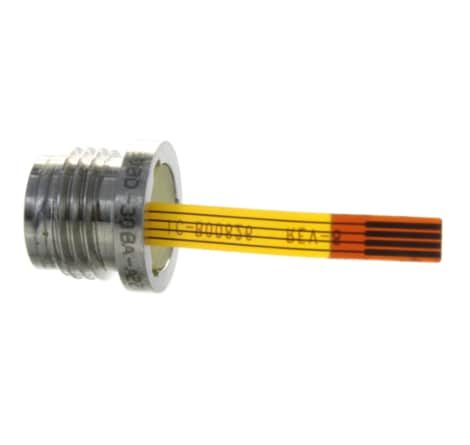

89BSD Digital Output Pressure Sensor

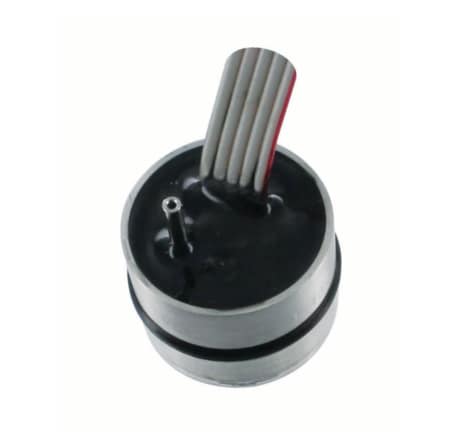

154BSD Digital Output Pressure Sensor
