435704-9 Product Details

435704-9

TE Internal Number: 435704-9

Superseded
Contact Product Information Center

DIP & SIP Switches - Standard

Always ELV Compliant (Statement of Compliance)

Product Highlights:

Shunt
Shunt Type = DIP
9 Positions
PCB Mount Style = Through Hole
2.54 mm Centerline

View all Features

Quick Links

Add to My Part List

Request Sample

Find Similar Products

Buy Product

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

Programmable DIP Shunts (PDF, English)

Instruction Sheets:

Programmable Shunts for Dual In-Line Packages (DIP) (PDF, English)

CAD Files:

Please carefully read the disclaimer before using any of this data. Your use of this data constitutes your acceptance of the terms and conditions set forth below. If you do not agree to those terms and conditions, please click on the I Disagree link.

This information has been provided to you free of charge for your use but remains the sole property of Tyco Electronics Corporation. While Tyco Electronics has used reasonable efforts to ensure its accuracy, Tyco Electronics does not guarantee that it is error-free, nor makes any other representation, warranty or guarantee that the information is completely accurate or up-to-date. In many cases, the CAD data has been simplified to remove proprietary detail while maintaining critical interface geometric detail for use by customers. Tyco Electronics expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.

Tyco Electronics will in no case be liable for your use, or the results of your use, of the CAD models or any accompanying written materials. IT IS YOUR RESPONSIBILITY TO VERIFY THE RESULTS OF YOUR USE OF THIS INFORMATION IN YOUR OWN PARTICULAR ENGINEERING AND PRODUCT ENVIRONMENT AND YOU ASSUME THE ENTIRE RISK OF DOING SO OR FAILING TO DO SO.

In no event will Tyco Electronics or its contractors, directors, officers, employees, affiliates or distributors be liable for any direct, indirect, special, incidental or consequential damages (including but not limited to, damages for lost business, lost profits, business interruptions and loss of information) arising from your use of, or your inability to use the CAD models or any accompanying written materials, even if Tyco Electronics has been advised of the possibility of such damages. In no event will Tyco Electronics' liability to you for any cause whatsoever, and regardless of the form of action, exceed $500.

No oral or written information of advice given by Tyco Electronics or its distributors, agents or employees will operate to create any warranty or guarantee or vary any provision or information herein, and you may not rely on any such information or advice. Tyco Electronics reserves the right to change any portion of this data at any time without notice.

Do you agree to the terms & conditions?

I Agree | I Disagree

None Available

List all Documents

Additional Information:

Product Line Information

Additional Product Images:

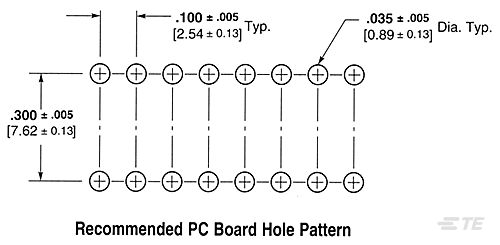

Recommended PC Board Hole Pattern

Related Products:

Tooling

Product Features (Please use the Product Drawing for all design activity)
Product Type Features: Product Type = Shunt Shunt Type = DIP PCB Mount Style = Through Hole Product Series = 7600 Series Electrical Characteristics: Contact - Rated Current (A) = 2 Insulation Resistance MΩ = >=10,000MΩ @ 100VDC Dielectric Withstanding Voltage (V) = 500 Capacitance (pF) = 2 Termination Features: Solder Tail Contact Plating = Tin-Lead Body Features: Number of Positions = 9 Centerline (mm [in]) = 2.54 [0.100] Centerline, Matrix (mm [in]) = 2.54 x 7.62 [.100 x .300]	Contact Features: Auto-Insertable = No Contact Base Material = Brass Housing Features: Housing Color = Black Housing Material = Polyester GF UL Flammability Rating = UL 94V-0 Industry Standards: RoHS/ELV Compliance = ELV compliant Lead Free Solder Processes = Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C RoHS/ELV Compliance History = Always was ELV compliant Environmental: Operating Temperature (°C) = -55 – +105 Other: Brand = AMP Comment = Programming Hand Tool Part No. 435862-1

Product Features (Please use the Product Drawing for all design activity)

Product Type Features:

Product Type = Shunt
Shunt Type = DIP
PCB Mount Style = Through Hole
Product Series = 7600 Series

Electrical Characteristics:

Contact - Rated Current (A) = 2
Insulation Resistance MΩ = >=10,000MΩ @ 100VDC
Dielectric Withstanding Voltage (V) = 500
Capacitance (pF) = 2

Termination Features:

Solder Tail Contact Plating = Tin-Lead

Body Features:

Number of Positions = 9
Centerline (mm [in]) = 2.54 [0.100]
Centerline, Matrix (mm [in]) = 2.54 x 7.62 [.100 x .300]

Contact Features:

Auto-Insertable = No
Contact Base Material = Brass

Housing Features:

Housing Color = Black
Housing Material = Polyester GF
UL Flammability Rating = UL 94V-0

Industry Standards:

RoHS/ELV Compliance = ELV compliant
Lead Free Solder Processes = Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C
RoHS/ELV Compliance History = Always was ELV compliant

Environmental:

Operating Temperature (°C) = -55 – +105

Other:

Brand = AMP
Comment = Programming Hand Tool Part No. 435862-1
