2-435097-1 Product Details

No Image Available

2-435097-1

TE Internal Number: 2-435097-1

Active

View 3D PDF

Rotary Switches

Always EU RoHS/ELV Compliant (Statement of Compliance)

Product Highlights:

10 Positions
Angle of Throw = 36.00 c
Actuator Style = Bar-type Knob
Code Type = Single Pole
Straight Mount Angle

View all Features

Quick Links

Add to My Part List

Request Sample

Find Similar Products

Buy Product

Documentation & Additional Information

Product Drawings:

ROTARY SWITCH ASSY 10 POSN, 6000 SERIES DECIMAL (PDF, English)

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

Low Profile Rotary Switches (6000 Series) (PDF, English)

CAD Files: (CAD Format & Compression Information)

Please carefully read the disclaimer before using any of this data. Your use of this data constitutes your acceptance of the terms and conditions set forth below. If you do not agree to those terms and conditions, please click on the I Disagree link.

This information has been provided to you free of charge for your use but remains the sole property of Tyco Electronics Corporation. While Tyco Electronics has used reasonable efforts to ensure its accuracy, Tyco Electronics does not guarantee that it is error-free, nor makes any other representation, warranty or guarantee that the information is completely accurate or up-to-date. In many cases, the CAD data has been simplified to remove proprietary detail while maintaining critical interface geometric detail for use by customers. Tyco Electronics expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.

Tyco Electronics will in no case be liable for your use, or the results of your use, of the CAD models or any accompanying written materials. IT IS YOUR RESPONSIBILITY TO VERIFY THE RESULTS OF YOUR USE OF THIS INFORMATION IN YOUR OWN PARTICULAR ENGINEERING AND PRODUCT ENVIRONMENT AND YOU ASSUME THE ENTIRE RISK OF DOING SO OR FAILING TO DO SO.

In no event will Tyco Electronics or its contractors, directors, officers, employees, affiliates or distributors be liable for any direct, indirect, special, incidental or consequential damages (including but not limited to, damages for lost business, lost profits, business interruptions and loss of information) arising from your use of, or your inability to use the CAD models or any accompanying written materials, even if Tyco Electronics has been advised of the possibility of such damages. In no event will Tyco Electronics' liability to you for any cause whatsoever, and regardless of the form of action, exceed $500.

No oral or written information of advice given by Tyco Electronics or its distributors, agents or employees will operate to create any warranty or guarantee or vary any provision or information herein, and you may not rely on any such information or advice. Tyco Electronics reserves the right to change any portion of this data at any time without notice.

Do you agree to the terms & conditions?

I Agree | I Disagree

2D Drawing (DXF, Version U)
3D Model (IGES, Version U)
3D Model (STEP, Version U)

List all Documents

Additional Information:

Product Line Information

Additional Product Images:

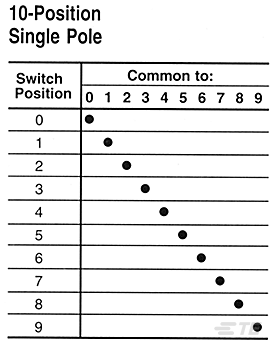

Truth Table

Related Products:

Tooling

Product Features (Please use the Product Drawing for all design activity)
Product Type Features: Angle of Throw (c) = 36.00 Actuator Style = Bar-type Knob Code Type = Single Pole Mount Angle = Straight Product Series = 6000 Series Termination Features: Solder Tail Contact Plating = Tin over Nickel Body Features: Number of Positions = 10	Contact Features: Contact Base Material = Brass Housing Features: Housing Material = Thermoplastic - GF Industry Standards: RoHS/ELV Compliance = RoHS compliant, ELV compliant Lead Free Solder Processes = Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C RoHS/ELV Compliance History = Always was RoHS compliant Other: Brand = Alcoswitch

Product Features (Please use the Product Drawing for all design activity)

Product Type Features:

Angle of Throw (c) = 36.00
Actuator Style = Bar-type Knob
Code Type = Single Pole
Mount Angle = Straight
Product Series = 6000 Series

Termination Features:

Solder Tail Contact Plating = Tin over Nickel

Body Features:

Number of Positions = 10

Contact Features:

Contact Base Material = Brass

Housing Features:

Housing Material = Thermoplastic - GF

Industry Standards:

RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C
RoHS/ELV Compliance History = Always was RoHS compliant

Other:

Brand = Alcoswitch
