D-SCE

D-SCE

D-SCE markers are used to identify wires and cables where exposure to organic fluids, especially oils, is required.

D-SCE markers are used to identify wires and cables where exposure to organic fluids, especially oils, is required. D-SCE markers are designed to operate in elevated temperatures for extended periods of time, making them ideal in Aerospace, Rail and MArine industries. D-SCE markers are suitable for use in environments with temperatures of -75oC to +135oC (-67oF to +275oF), and will provide strain relief, insulation and protection from machanical abuse.

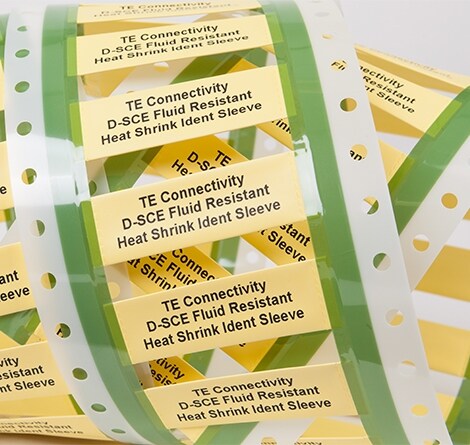

Supplied in a "ladder format", sleeves are held horizontally between two polyester strips and offers ease of printing and kitting. D-SCE markers come standard with side scoring for ease of removal after printed.

Temperature Rating

Operating Temperature range -75oC to 135oC (-103oF to 275oF)

Specifications and Approvals
  • NF F 00 608 type H
  • EN45545-2 R23 HL1
  • EN45545-2 R24 HL3
  • NFPA130
  • SAE-AMS-DTL-23053/6
  • MIL-STD-202 Method 215
Recommended Hardware and Software

Printer: T200-IDENT, TE3112, TE3124, T6112DS

Ribbon: TMS-RJS-RIBBON-4DSCE (optimal), 1966-RIBBONN (Superior)

Software: WinTotal v6
