Unsealed Power Connection Solution

Unsealed Power Connection Solution

TE’s One Position 90° Unsealed Connectors Using PCON 12 Terminals is a unique power connection solution suitable for a variety of applications across the ICT market. It offers a one-position, unsealed power connection with positive and negative markings on each connector. Its 90° terminal orientation makes it ideal for establishing power connections in extremely cramped in-cabin spaces.

Product Features:

Benefits of One Position 90° Unsealed Connectors Using PCON 12 Terminals

Secure Solution

  • Made out of flame-retardant UL 94 V-0 material (tested to LV-214 specification)
  • Dual side-actuated snap-in locks provide an audible “click” for enhanced security



Great for Tight Spaces

  • 90° terminal orientation and dual housing slots allows for easier connection and removal
  • 3 color codings – red (+), violet (+) and black (-) – available which reduces improper mating
  • The only one-position, unsealed power connector available to the TE ICT portfolio today



Cost Efficient

  • A simple, cost-efficient solution that meets customers’ high-power needs

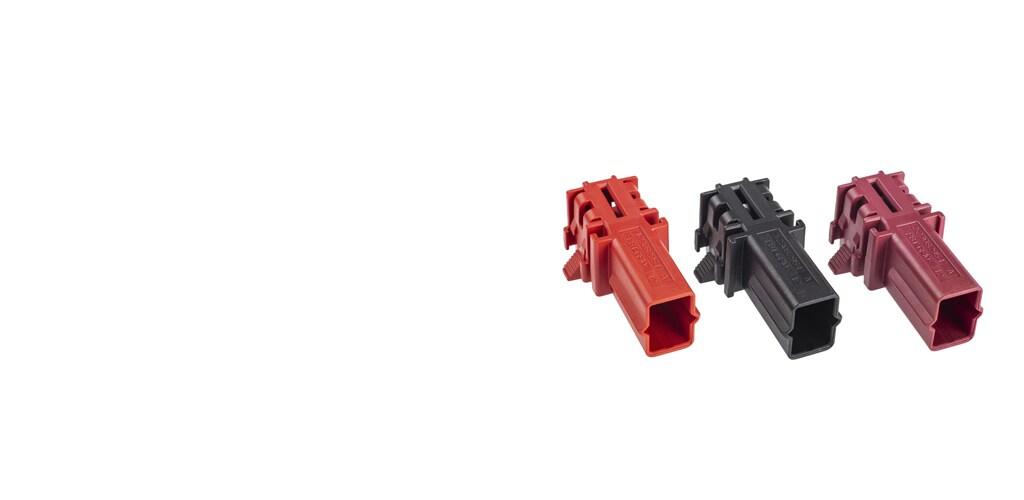

Three color codings are available to reduce improper mating.
A – Red, B – Violet, C – Black
PCON 12 One Position 90 degree Arrangements

Frequently Asked Questions

Q.  Are there interface drawings available?

A. Yes, the drawing number is 208-18000.



Q. How many codes are available?

A. 3 Codings (2 positives Code A & B / 1 Negative Code C)
