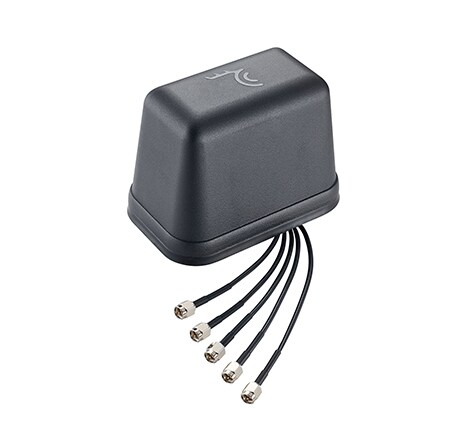

HIRSCHMANN MOBILITY Cellular/GNSS Swap-Body Antenna

M2M and Telematics Systems

Powerful M2M and telematics antennas as well as telematics solutions for seamless asset tracking.

TE Connectivity’s HIRSCHMANN MOBILITY product portfolio features M2M and telematics antennas as well as telematics solutions for the asset tracking. We offer M2M markets and the transport & logistics industry powerful and rugged systems for the exchange of mobile data. Our portfolio of M2M & telematics antennas include a wide range of services in different designs. Detailed information about our antenna portfolio is available in our catalogue.

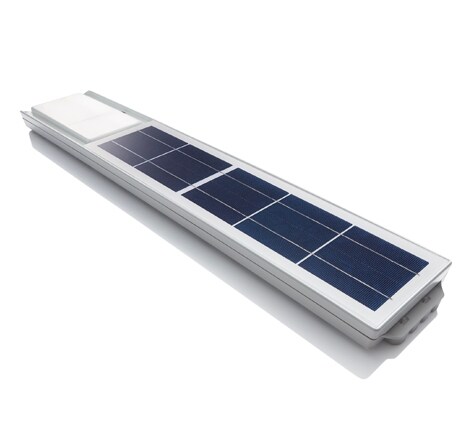

The HIRSCHMANN MOBILITY asset tracking solutions  allow the seamless tracking of containers and swap bodies as well as the consistent monitoring of the freight along the entire supply chain from loading at the warehouse right through the last mile along the route. These solutions fill in digital gaps in information between service providers, fleet management, shipment, cold-chain tracking and many more freight traffic interfaces.

???
Key Features
  • Over 7 years service lifetime
  • Smart power algorithm and energy harvesting
  • Hardware-based geo-fencing areas (up to 1000)
  • Motion, tamper and device temperature sensor
  • Bluetooth Low Energy interface
  • Data logging in case of network unavailability
  • Firmware-Over-The-Air (FOTA) update
  • Device independent data access via API
Optional Features
  • 4G LTE (e.g. CAT 1) communication
  • Bracket mount
  • External sensors via BLE interface:
    Door open/close, temperature, humidity,
    lighting, CO2, pairing etc.
  • Precision GNSS; Real-Time-Kinematics (RTK)
  • eSIM with remote subscription management
  • Permanent battery (7 cells = HS 3170)
  • Customizable logo on request
Benefits
  • Sustainable through energy harvesting
  • Data transmission: data collection in the device and data transmission in defined intervals
  • Data security: Data encryption and optional carrier VPN tunnel
  • Very exact positioning possible (< 0.5 m with RTK option)
  • Process optimization due to better supply-chain-visibility
  • Incident detection by shock-thresholds and alarms
  • Enabling increase of asset utilization
  • Analysis of rides and tours
  • Monitoring of toll payments
  • Reduction of service and down-time
  • Monitoring of driving and rest periods of drivers
  • 2G and 3G (optional 4G) for encrypted communication with backend
  • Bluetooth 5.0 (BLE with long-range capability)
  • Interface for external wireless accessories
