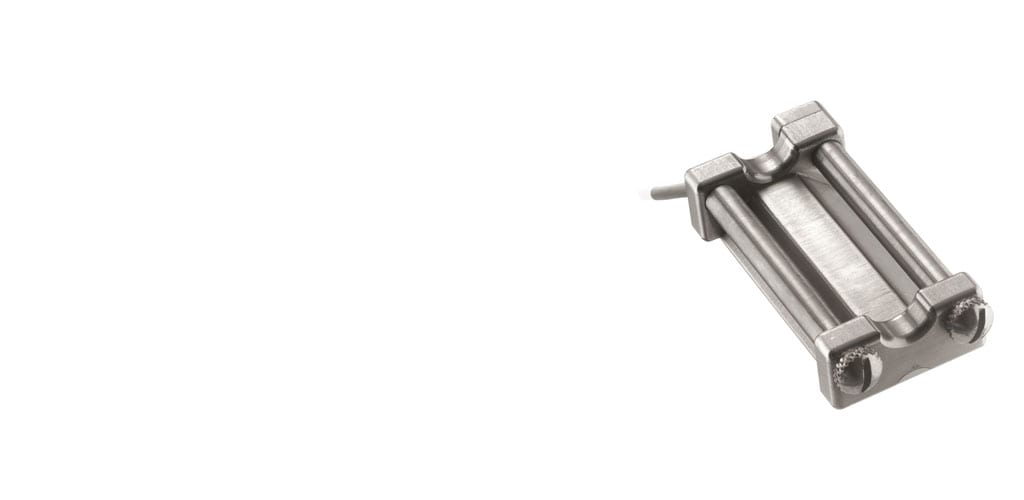

The EL20 seat belt load cell sensor provides a super low mass titanium structure to minimize F=MA errors during the crash event.
el20 seat belt load cell sensor

All exterior surfaces are smoothed to prevent snagging on dummy or air bag materials; smoothed exterior profiles protect your expensive crash test dummy from damage while reducing drag and frictional error.  The EL20-S458 is offered with optional ultra low mass slotted titanium axles and robust armored cable exit from the device. The user-replaceable cable ensures that even if your cabling is damaged, replacement cables can be rapidly wired and your test facility remains in full operation at all times. The low noise Wheatstone bridge consists of metal foil strain gages which provide full scale outputs of typically 2 mV/V of excitation. The EL20-S458 is also available with internal linearization (Option B) to provide +/- 0.5% FS maximum non-linearity. Option D provides linearization and high level output of 0.5 to 4.5 V. The EL20-S458 can be configured with a variety of options to fine tune the instrument to your application: select from several standard compensated temperature ranges, slotted or knurled axles, input voltages, lead lengths or specify unique combinations of these options. The EL20-S458 belt tension load cell can be fine-tuned to meet your crash test or military test needs.


  • Super low mass titanium design
  • Ultra low mass slotted titanium axles available
  • Low noise
  • Optional linearized high level output


  • Automotive crash test
  • Military payload delivery
  • Sport and military parachute tether loads
  • Automatic reserve chute deployment systems
orange bar

Other Auto Safety Sensors



Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Force Load Cell Sensor Type  Automotive Load Cells

Electrical Characteristics

  • Full Scale Range (Newton) 0 – 25000, 0 – 5000

  • Full Scale Range (lbf) 0 – 1000, 0 – 5000

  • Force Load Cell Supply Voltage (VDC) 10

Signal Characteristics

  • Output Signal  1.5 mV/V, 4 V

Usage Conditions

  • Operating Temperature Range  -40 – 120 °C [ -40 – 248 °F ]


  • Force Direction  Tension

  • Protection Index  IP50

  • Force Load Cell Accuracy (% of FS) ±.5

  • Zero Shift in CTR (%FS/°C) ±1/50

  • Sensitivity Shift (%FS/°C) ±1/50

Reference Number

  • TE Internal Number CAT-FLS0038
