1376387-1 Rectangular Power Connectors  1
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Selectively Loaded No
  • Number of Positions 6
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 6
  • Number of Rows 2
  • Row-to-Row Spacing .244
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 1
  • Contact Base Material Copper Alloy
  • Termination Method to PC Board Through Hole - Press-Fit
  • Termination Post/Tail Length 3.5
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Post/Kinked Legs
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) .063
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating GWT 750°C (Without Flame)
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
3-1376387-4 Rectangular Power Connectors  1
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Selectively Loaded No
  • Number of Positions 6
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 6
  • Number of Rows 2
  • Row-to-Row Spacing .244
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 2
  • Contact Base Material Copper Alloy
  • Underplate Material Thickness 1.27
  • Contact Termination Area Plating Finish Matte
  • Termination Method to PC Board Through Hole - Press-Fit
  • Termination Post/Tail Length 3.05
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Post/Kinked Legs
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Yellow
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) 1.57
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating GWT 750°C (Without Flame)
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
1376383-5 Rectangular Power Connectors  1
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Pin
  • Selectively Loaded No
  • Number of Positions 3
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 3
  • Number of Rows 1
  • Keying A
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 1
  • Contact Base Material Copper Alloy
  • Termination Method to PC Board Through Hole - Press-Fit
  • Termination Post/Tail Length 3.5
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Post/Kinked Legs
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) .063
  • Operating Temperature Range -40 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating GWT 750°C (Without Flame)
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
2-1376387-3 Rectangular Power Connectors
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Selectively Loaded No
  • Number of Positions 6
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 6
  • Number of Rows 2
  • Row-to-Row Spacing .244
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 1
  • Contact Base Material Copper Alloy
  • Termination Method to PC Board Through Hole - Press-Fit
  • Termination Post/Tail Length 3.5
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Post/Kinked Legs
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Blue
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) .063
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating GWT 750°C (Without Flame)
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
1-1376386-2 Rectangular Power Connectors  1
  • Product Type Connector
  • Connector System Wire-to-Board
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Number of Positions 4
  • Number of Power Positions 4
  • Number of Signal Positions 0
  • Number of Rows 2
  • Row-to-Row Spacing 6.2
  • Operating Voltage 300
  • Centerline (Pitch) 5
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Packaging Method Bag
  • Packaging Quantity 100
6-1376383-2 Rectangular Power Connectors  1
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Pin
  • Selectively Loaded No
  • Number of Positions 3
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 3
  • Number of Rows 1
  • Keying B
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 3.81 – 8.89
  • Contact Base Material Copper Alloy
  • Contact Termination Area Plating Finish Matte
  • Termination Method to PC Board Through Hole - Press-Fit
  • Termination Post/Tail Length 3.56
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Posts
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Red
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) 1.6
  • Operating Temperature Range -40 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating Standard Part - Not Glow Wire
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
1-1376393-2 Rectangular Power Connectors  1
  • Product Type Housing
  • Housing Type Plug
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Wire & Cable
  • Contact Type Receptacle
  • Number of Positions 6
  • Number of Rows 2
  • Row-to-Row Spacing .244
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Base Material Copper Alloy
  • Panel Mount Feature Without
  • Strain Relief Without
  • Mating Alignment With
  • Mating Alignment Type Keyed
  • Mating Retention Type Latch
  • PCB Mount Retention Without
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Red
  • Housing Material Nylon 6/6 GF
  • Length 20
  • Height 15.8
  • Width 16.2
  • Accepts Wire Insulation Diameter Range 1.7 – 3.1
  • Operating Temperature Range -40 – 105
  • Sealed Condition Not Sealed
  • Glow Wire Rating Standard Part - Not Glow Wire
  • CSA File Number LR 7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 500
  • For Use With Receptacle Housing
1376386-1 Rectangular Power Connectors  1
  • Product Type Connector
  • Connector System Wire-to-Board
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Number of Positions 4
  • Number of Signal Positions 0
  • Number of Rows 2
  • Row-to-Row Spacing 6.2
  • Operating Voltage 300
  • Centerline (Pitch) 5
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Packaging Method Bag
  • Packaging Quantity 100
1-1376389-2 Rectangular Power Connectors  1
  • Product Type Housing
  • Housing Type Plug
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Wire & Cable
  • Contact Type Socket
  • Number of Positions 3
  • Number of Rows 1
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Base Material Copper Alloy
  • Panel Mount Feature Without
  • Strain Relief Without
  • Mating Alignment With
  • Mating Alignment Type Keyed
  • Mating Retention Type Latch
  • PCB Mount Retention Without
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Red
  • Housing Material Nylon 6/6 GF
  • Length 20
  • Height 9.6
  • Width 16.2
  • Accepts Wire Insulation Diameter Range 1.7 – 3.1
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Glow Wire Rating Standard Part - Not Glow Wire
  • CSA File Number LR 7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 500
  • For Use With Receptacle Housing
6-1376387-2 Rectangular Power Connectors  1
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Selectively Loaded No
  • Number of Positions 6
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 6
  • Number of Rows 2
  • Row-to-Row Spacing .244
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 3.81 – 8.89
  • Contact Base Material Copper Alloy
  • Contact Termination Area Plating Finish Matte
  • Termination Method to PC Board Through Hole - Solder
  • Termination Post/Tail Length 3.56
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Posts
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Red
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) 1.6
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating GWT 750°C (Without Flame)
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
Overview

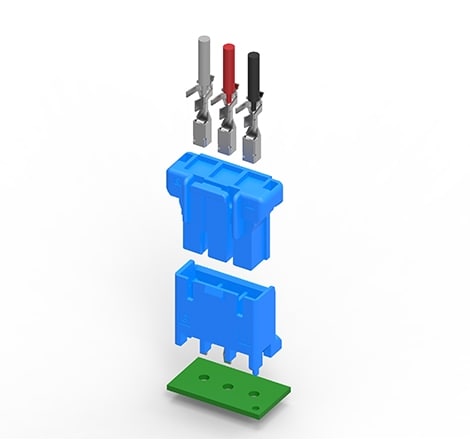

AMP 5mm power key connectors.

Deliver Power to the Board

Built to optimize contact seating and proper mating to the PCB header, our 5mm power key connector is designed to release bubbles created by the process of potting (PC board coating). It uses housing lances to prevent tangling of wired contacts.

AMP 5mm power key connectors provide wire-to-board (WTB) connections consisting of plug housings for wire and compact PCB header assemblies with a 20.7mm mated height and double lock plates as Terminal Position Assistance (TPA) devices. Power key connectors are based on a 5mm [.197] centerline pitch and are rated for 300VAC at up to 10A. These connectors accept wire sizes of 16 to 26 AWG [1.419- .121 mm²] and are available in 2, 3, 4, 6 positions in single row and 4, 6 positions for dual row. The connector is designed to release bubbles created by the process of potting (PC board coating). Color housings, red, blue, natural, or yellow, help to identify connections. Additionally, four different types of physical keying mechanism, one for each color, increase assembly efficiency of blind mating when you are unable to see the connectors. This combination of color keying and physical keying help prevent mismating.

Making Life Easier

  • R-shaped design figure eases working conditions
  • Easier contact insertions based on clear clicking sound
  • Simpler stock level control with part numbers reduced

5mm

Centerline pitch

-30°C

Operating temperature range minimum

105°C

Operating temperature range maximum

5.0 mm Power Key Connectors are for power circuits of home appliances, especially targeting gas appliances.
5.0 mm Power Key Connectors (Wire-to-Board),
Catalog

Features

5mm Power Key Connectors
  • 5mm centerline pitch
  • WTB with PCB header
  • 4 colors: Natural, Yellow, Blue and Red
  • Audible sound and TPA provide complete loading of contacts
  • Lanceless contacts
  • Locking levers surrounded by walls, protects levers and prevents tangling of wires
  • Higher mating height and connector
  • UL recognized and CSA certified
  • Glow Wire material

Applications

5mm Power Key Connectors
  • Gas appliances
  • Laundry machines
  • Household appliances
  • HVAC systems
  • Power supplies
  • Fan modules
  • Lighting
  • Industrial controls

AMP is a trademark.

AMP 5mm power key connectors.

Deliver Power to the Board

Built to optimize contact seating and proper mating to the PCB header, our 5mm power key connector is designed to release bubbles created by the process of potting (PC board coating). It uses housing lances to prevent tangling of wired contacts.

AMP 5mm power key connectors provide wire-to-board (WTB) connections consisting of plug housings for wire and compact PCB header assemblies with a 20.7mm mated height and double lock plates as Terminal Position Assistance (TPA) devices. Power key connectors are based on a 5mm [.197] centerline pitch and are rated for 300VAC at up to 10A. These connectors accept wire sizes of 16 to 26 AWG [1.419- .121 mm²] and are available in 2, 3, 4, 6 positions in single row and 4, 6 positions for dual row. The connector is designed to release bubbles created by the process of potting (PC board coating). Color housings, red, blue, natural, or yellow, help to identify connections. Additionally, four different types of physical keying mechanism, one for each color, increase assembly efficiency of blind mating when you are unable to see the connectors. This combination of color keying and physical keying help prevent mismating.

Making Life Easier

  • R-shaped design figure eases working conditions
  • Easier contact insertions based on clear clicking sound
  • Simpler stock level control with part numbers reduced

5mm

Centerline pitch

-30°C

Operating temperature range minimum

105°C

Operating temperature range maximum

5.0 mm Power Key Connectors are for power circuits of home appliances, especially targeting gas appliances.
5.0 mm Power Key Connectors (Wire-to-Board),
Catalog

Features

5mm Power Key Connectors
  • 5mm centerline pitch
  • WTB with PCB header
  • 4 colors: Natural, Yellow, Blue and Red
  • Audible sound and TPA provide complete loading of contacts
  • Lanceless contacts
  • Locking levers surrounded by walls, protects levers and prevents tangling of wires
  • Higher mating height and connector
  • UL recognized and CSA certified
  • Glow Wire material

Applications

5mm Power Key Connectors
  • Gas appliances
  • Laundry machines
  • Household appliances
  • HVAC systems
  • Power supplies
  • Fan modules
  • Lighting
  • Industrial controls

AMP is a trademark.

1376387-1 Rectangular Power Connectors  1
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Selectively Loaded No
  • Number of Positions 6
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 6
  • Number of Rows 2
  • Row-to-Row Spacing .244
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 1
  • Contact Base Material Copper Alloy
  • Termination Method to PC Board Through Hole - Press-Fit
  • Termination Post/Tail Length 3.5
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Post/Kinked Legs
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) .063
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating GWT 750°C (Without Flame)
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
3-1376387-4 Rectangular Power Connectors  1
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Selectively Loaded No
  • Number of Positions 6
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 6
  • Number of Rows 2
  • Row-to-Row Spacing .244
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 2
  • Contact Base Material Copper Alloy
  • Underplate Material Thickness 1.27
  • Contact Termination Area Plating Finish Matte
  • Termination Method to PC Board Through Hole - Press-Fit
  • Termination Post/Tail Length 3.05
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Post/Kinked Legs
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Yellow
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) 1.57
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating GWT 750°C (Without Flame)
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
1376383-5 Rectangular Power Connectors  1
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Pin
  • Selectively Loaded No
  • Number of Positions 3
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 3
  • Number of Rows 1
  • Keying A
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 1
  • Contact Base Material Copper Alloy
  • Termination Method to PC Board Through Hole - Press-Fit
  • Termination Post/Tail Length 3.5
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Post/Kinked Legs
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) .063
  • Operating Temperature Range -40 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating GWT 750°C (Without Flame)
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
2-1376387-3 Rectangular Power Connectors
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Selectively Loaded No
  • Number of Positions 6
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 6
  • Number of Rows 2
  • Row-to-Row Spacing .244
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 1
  • Contact Base Material Copper Alloy
  • Termination Method to PC Board Through Hole - Press-Fit
  • Termination Post/Tail Length 3.5
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Post/Kinked Legs
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Blue
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) .063
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating GWT 750°C (Without Flame)
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
1-1376386-2 Rectangular Power Connectors  1
  • Product Type Connector
  • Connector System Wire-to-Board
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Number of Positions 4
  • Number of Power Positions 4
  • Number of Signal Positions 0
  • Number of Rows 2
  • Row-to-Row Spacing 6.2
  • Operating Voltage 300
  • Centerline (Pitch) 5
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Packaging Method Bag
  • Packaging Quantity 100
6-1376383-2 Rectangular Power Connectors  1
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Pin
  • Selectively Loaded No
  • Number of Positions 3
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 3
  • Number of Rows 1
  • Keying B
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 3.81 – 8.89
  • Contact Base Material Copper Alloy
  • Contact Termination Area Plating Finish Matte
  • Termination Method to PC Board Through Hole - Press-Fit
  • Termination Post/Tail Length 3.56
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Posts
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Red
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) 1.6
  • Operating Temperature Range -40 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating Standard Part - Not Glow Wire
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
1-1376393-2 Rectangular Power Connectors  1
  • Product Type Housing
  • Housing Type Plug
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Wire & Cable
  • Contact Type Receptacle
  • Number of Positions 6
  • Number of Rows 2
  • Row-to-Row Spacing .244
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Base Material Copper Alloy
  • Panel Mount Feature Without
  • Strain Relief Without
  • Mating Alignment With
  • Mating Alignment Type Keyed
  • Mating Retention Type Latch
  • PCB Mount Retention Without
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Red
  • Housing Material Nylon 6/6 GF
  • Length 20
  • Height 15.8
  • Width 16.2
  • Accepts Wire Insulation Diameter Range 1.7 – 3.1
  • Operating Temperature Range -40 – 105
  • Sealed Condition Not Sealed
  • Glow Wire Rating Standard Part - Not Glow Wire
  • CSA File Number LR 7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 500
  • For Use With Receptacle Housing
1376386-1 Rectangular Power Connectors  1
  • Product Type Connector
  • Connector System Wire-to-Board
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Number of Positions 4
  • Number of Signal Positions 0
  • Number of Rows 2
  • Row-to-Row Spacing 6.2
  • Operating Voltage 300
  • Centerline (Pitch) 5
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Packaging Method Bag
  • Packaging Quantity 100
1-1376389-2 Rectangular Power Connectors  1
  • Product Type Housing
  • Housing Type Plug
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Wire & Cable
  • Contact Type Socket
  • Number of Positions 3
  • Number of Rows 1
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Base Material Copper Alloy
  • Panel Mount Feature Without
  • Strain Relief Without
  • Mating Alignment With
  • Mating Alignment Type Keyed
  • Mating Retention Type Latch
  • PCB Mount Retention Without
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Red
  • Housing Material Nylon 6/6 GF
  • Length 20
  • Height 9.6
  • Width 16.2
  • Accepts Wire Insulation Diameter Range 1.7 – 3.1
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Glow Wire Rating Standard Part - Not Glow Wire
  • CSA File Number LR 7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 500
  • For Use With Receptacle Housing
6-1376387-2 Rectangular Power Connectors  1
  • Header Type Shrouded
  • Product Type Header
  • Housing Type Receptacle
  • Connector System Wire-to-Board
  • Connector & Contact Terminates To Printed Circuit Board
  • Contact Type Tab
  • Selectively Loaded No
  • Number of Positions 6
  • PCB Mounting Orientation Vertical
  • Number of Power Positions 6
  • Number of Rows 2
  • Row-to-Row Spacing .244
  • Contact Layout Inline
  • Operating Voltage 300
  • Contact Current Rating (Max) 10
  • Contact Retention Without
  • Contact Termination Area Plating Material Tin
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Thickness 39.36
  • Contact Termination Area Plating Thickness 3.81 – 8.89
  • Contact Base Material Copper Alloy
  • Contact Termination Area Plating Finish Matte
  • Termination Method to PC Board Through Hole - Solder
  • Termination Post/Tail Length 3.56
  • PCB Mount Alignment Without
  • Mating Alignment Without
  • PCB Mount Retention Type Mounting Posts
  • Mating Retention Type Latch
  • PCB Mount Retention With
  • Mating Retention With
  • Centerline (Pitch) 5
  • UL Flammability Rating UL 94V-0
  • Housing Color Red
  • Housing Material Nylon 6/6 GF
  • Length 16.6
  • Mating Post Length 6.3
  • Height 14.1
  • Width 14.1
  • PCB Thickness (Recommended) 1.6
  • Operating Temperature Range -30 – 105
  • Sealed Condition Not Sealed
  • Circuit Application Power
  • Glow Wire Rating GWT 750°C (Without Flame)
  • CSA File Number LR7189
  • UL Rating Recognized
  • Agency/Standard CSA
  • Agency/Standard Number E28476
  • Packaging Method Bag
  • Packaging Quantity 100
  • For Use With Plug Housing
