Connectors for USCAR30 Standards

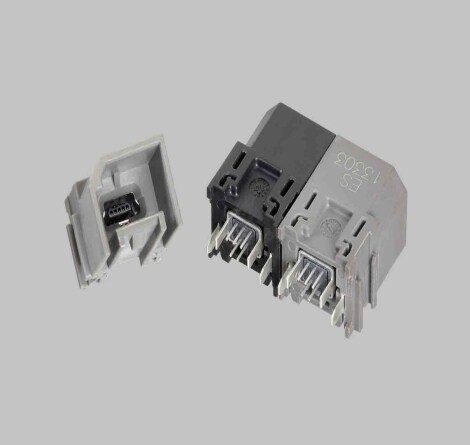

Connectors for USCAR30 Standards

High-speed connectivity drives your infotainment. TE's connectors for USCAR30 standards are designed for enhanced high-speed data transmission for vehicle infotainment systems.

Life in the fast lane. TE's connectors for USCAR30 standards improve high-speed data transmission for infotainment applications, including displays, modules and USB connections. The connectors have the ability to bundle with up to 3 headers, creating less component placement during assembly and fewer PCB footprint areas. The high-speed connectors are compatible with industry accepted assemblies and mating plugs are easy to distinguish based on their coloring. The connectors are qualified to USB 2.0 requirements and operate at a temperature range of -40°C /+85°C (+105°C optional). The system supports USB as well as LVDS data rates and is compatible with the robust automotive environment.

Applications

  • Displays
  • Gateway modules
  • USB connections
  • Rear seat display
  • Rear seat entertainment

Features

  • Ability to bundle up to 3 headers
  • Less component placement during assembly
  • Smaller PCB footprint area
  • Can be reflow soldered up to 260°C
  • No additional soldering process required
  • Mini B is protected from damage during mating and unmating
  • Compatible with industry accepted assemblies
  • Vehicle routing flexibility for aggressive packaging environments
  • Mating plugs are easy to distinguish based on coloring

-40°C

Qualified to standard USB 2.0 requirements.

+85°C

Temp. range of -40°C /+85°C (+105°C optional).

Mechanical

  • Vibration Class V1 per USCAR-2
  • Temperature Class 1(Class 2 with separate cable) per USCAR-2
  • Sealing Class S1 per USCAR-2
  • Ergonomic Class 2 per USCAR-25
  • Power wire range from AWG 28 to AWG 20
  • Signal wire range from AWG 28 to AWG 26

Electrical

  • Impedance: 90 Ω ± 15%
  • Operating current: 0,5 A
  • Operating voltage: 5 V
  • Maximum LLCR: 50 mΩ
  • Allowed voltage drop: 250 mV

Standards and Specifications

  • USCAR-30 / USCAR-2
  • USB 2.0 (Mini B addendum)
  • GMW3191 (only extracts)
  • TE product specification: 108-94286
  • TE application specification: 114-94128
