Hydraulic Crimp Tooling Solutions

Hydraulic Crimp Tooling Solutions

TE Connectivity’s line of quality tooling includes industry standard 10,000 psi [68,950 kPa] and TE legacy 8,200 psi [56,540 kPa] hydraulic tool systems. The basic hydraulic tool system requires a pump, hose (multiple lengths are available with all configurations), crimp head, and crimp die.

The basic hydraulic tool system requires a pump, hose (multiple lengths are available with all configurations), crimp head, and crimp die.  There is a TE hydraulic pump to meet the demands of any crimping application.

For fixed crimping locations, you can choose between a 110V or 220V Electric Hydraulic Pump (with optional remote hand control), or manual foot and hand hydraulic pumps.

For maximum portability, 10,000 psi hand-held pistol grip crimp tools with rechargeable battery are an effective solution. Or, to power a 10,000 psi crimp head at any location, order a portable battery hydraulic unit.



33

tons max. crimp force with shank dies

14

tons max. crimp force with U-dies

Hydraulic Powered Crimp Tooling

10,000 psi Crimp Force

[ 68,950 kPa ]

• Industry standard 10,000 psi hydraulic system pumps and crimp heads

• Electric & manual hydraulic pumps for crimping at fixed locations

• 10,000 psi crimp heads compatible with shank dies available for wire sizes requiring a crimp force up to 33 tons

• 10,000 psi crimp heads compatible with U-dies for wire sizes requiring a crimp force up to 14 tons

• U-die crimp head stroke options of 1” and 1.5”

• Hand-held pistol grip tools with rechargeable battery for U-dies

• Portable battery operated hydraulic pump for 10,000 psi crimp heads

• Integrated crimp head/die combinations for crimping #8-2 AWG SOLISTRAND terminals



For a 10,000 psi hydraulic system, there are three medium duty and one heavy duty U-die crimp heads available. U-die crimp heads are available in two types, with 1 in [25 mm] and 1.5 in [38 mm] strokes, respectively.



An integrated head/die for crimping #8 to #2 SOLISTRAND terminals is available. There are also manual hand held hydraulic tools available for both U and shank die sets.



For maximum portability, 10,000 psi hand-held pistol grip crimp tools with rechargeable battery are an effective solution. Or, to power a 10,000 psi crimp head at any location, order a portable battery hydraulic unit.



Note: 10,000 psi hydraulic pumps are not compatible with 8,200 psi crimp heads. 8,200 psi hydraulic pumps are not compatible with 10,000 crimp heads.

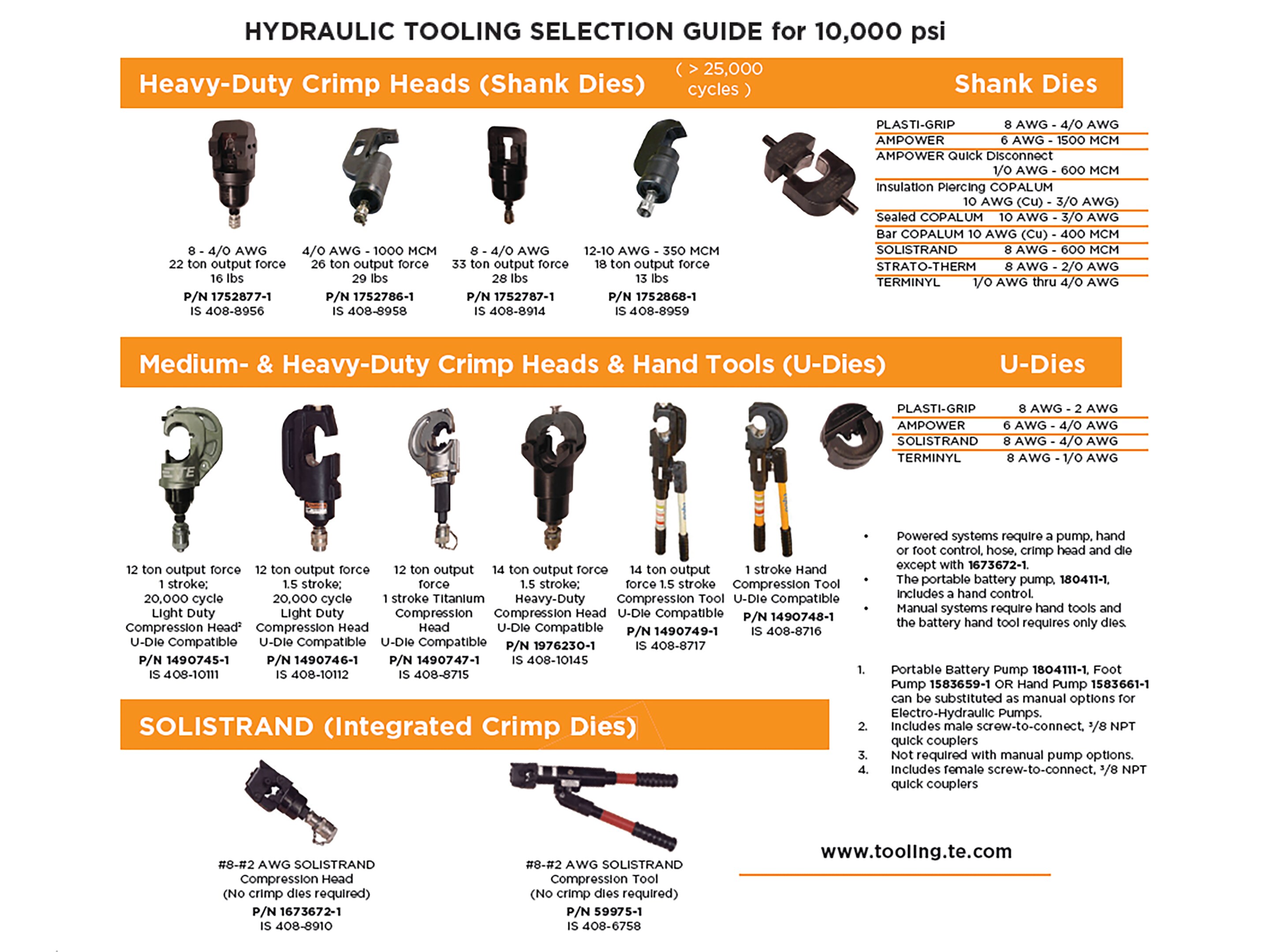

hydraulic u die and shank die 10,000 psi

8,200 psi Crimp Force

[ 56,540 kPa ]

• TE legacy 8,200 psi hydraulic system pumps and crimp heads

• Electric & manual hydraulic pumps for crimping at fixed locations

• 8,200 psi crimp heads compatible with shank dies available for wire sizes requiring a crimp force up to 33 tons

• U-die crimp head stroke options of 1” and 1.5”

• Hand-held pistol grip tools with rechargeable battery for U-dies

• Integrated crimp head/die combinations for crimping #8-2 AWG SOLISTRAND terminals



For an 8,200 psi hydraulic system, there are eight crimp heads available. These crimp heads

accept shank dies. The crimp heads are available for wire sizes requiring up to 33 tons of crimp force.



For both hydraulic systems, an integrated head/die for crimping #8 to #2 SOLISTRAND terminals is available. There are also manual hand held hydraulic tools available for both U and shank die sets.



Note: 10,000 psi hydraulic pumps are not compatible with 8,200 psi crimp heads. 8,200 psi hydraulic pumps are not compatible with 10,000 crimp heads.

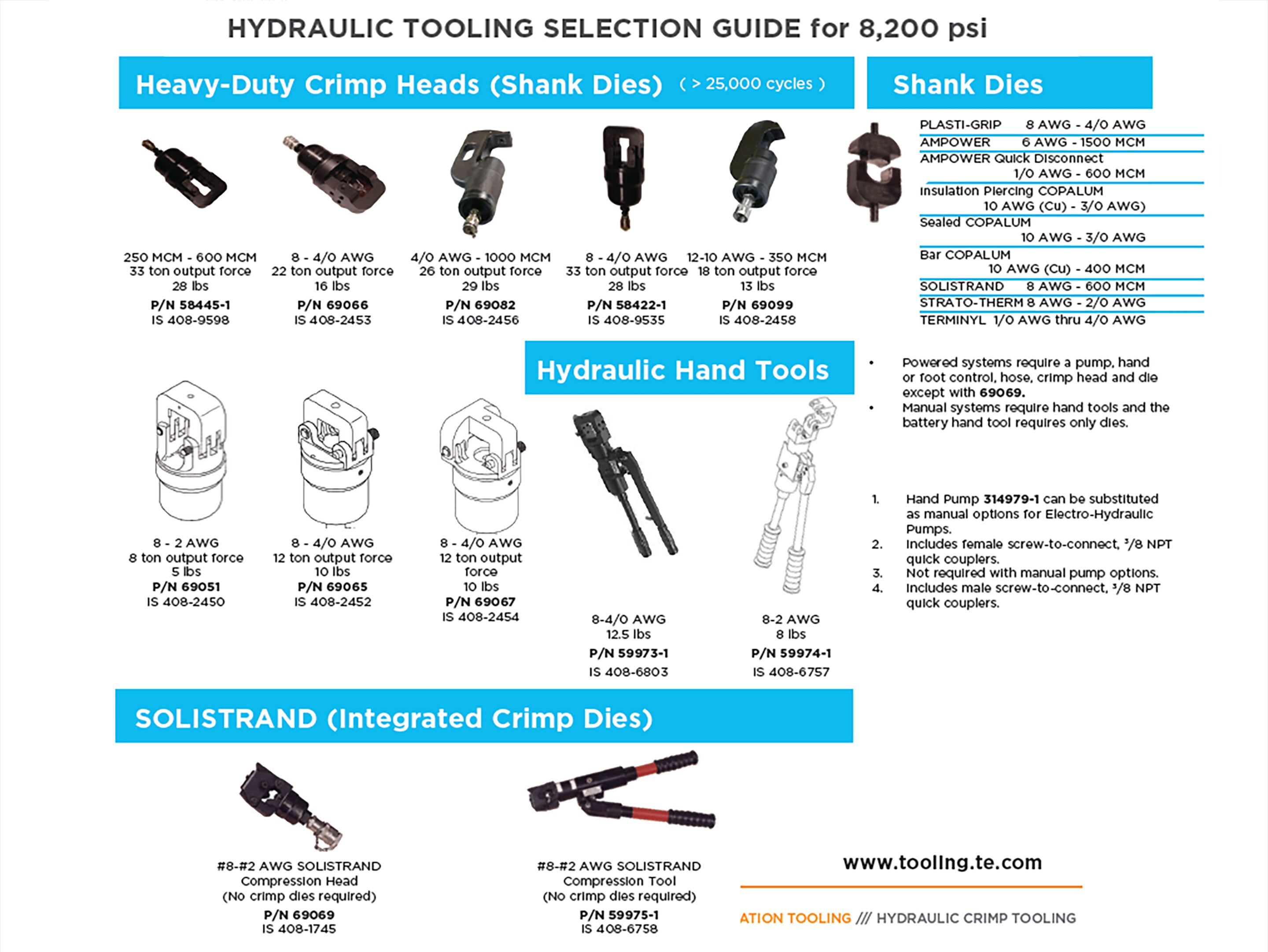

hydraulic shank die and u die 82,000 psi
