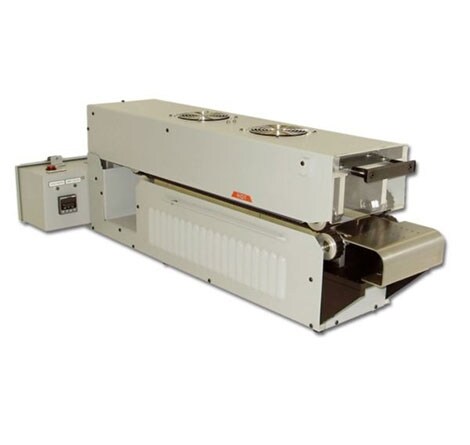

Model 16B Belt Heater
The Model 16B heater is our smallest tabletop conveyor-type processor. It provides a controlled process for heat-shrinkable tubing products up to 19mm [0.75"] in diameter and 90mm [3.5"] in length.
With double-sided timing belts on the top and bottom of the processing chamber, this belt heater draws the assemblies through a thermally controlled infrared heat zone. It then draws the assemblies through a fan-cooled cooling zone before depositing them into the unloading bin. The infrared energy source is well-suited to efficient processing of either single-wall or adhesive-lined tubing. Heat output can be controlled to accommodate a wide variety of products and substrates. Our versatile portfolio of equipment for heat shrink tubing enables you to process the heat-shrinkable tubing products in an easy, efficient, and cost-effective manner. Developed in close collaboration with customers for general industry use, this equipment provides optimal heating temperatures, performance, and control. For example, it is suitable for use in a wide range of automotive applications – from sealing and protecting electrical splices to providing mechanical protection for fluid management systems in harsh environments.
Watch a demonstration of the Model 16B Belt Heater. The Model 16B Belt Heater is our smallest tabletop conveyor-type processor providing a controlled process for a wide variety of heat shrinkable tubing products.
Diameter and Length
- Tubing diameter (max) - up to 19 mm [0.75 in]
- Tubing length (max) - up to 90 mm [3.5 in]
Bench Top Design, Controlled Process
- Closed-loop speed and temperature control
- Continuous controlled process
- Adaptable for different applications
- Bench top design
- Heater operation and over temperature alarm lights
- RAYCHEM heat shrink tubing
- Single-wall heat shrink tubing
- Adhesive-lined heat shrink tubing
