Products (257)
1-1971817-4 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 4
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 12.6
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 225
3-1971817-4 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 4
  • Number of Rows 1
  • Position Keyed B,C,D
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Mating Alignment Type Keyed
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 12.6
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 225
1-1971818-1 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 11
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Tail Length 2.9
  • Length 30.1
  • Height 15.5
  • Operating Temperature Range -40 – 125
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 90
1-1971817-0 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 10
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 27.6
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 105
1-1971817-3 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 3
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 10.1
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 270
1-1971817-6 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 6
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 17.6
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 165
1-1971817-7 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 7
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 20.1
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 135
1-1971817-8 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 8
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 22.6
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 120
1-1971837-3 Wire-to-Board Headers & Receptacles
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 3
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Mating Area Plating Material Silver
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Silver
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 10.1
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 270
1-1971921-3 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 3
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • Contact Layout Inline
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • PCB Mount Alignment With
  • Mating Retention With
  • PCB Mount Retention Without
  • PCB Mount Alignment Type Locating Posts
  • Mating Alignment With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Mating Alignment Type Keyed
  • Centerline (Pitch) 5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 10.1
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Loose Piece
  • Packaging Quantity 270
Overview

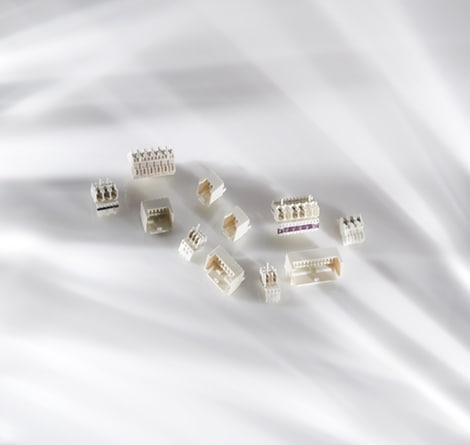

RAST 2.5 Tab Headers

RAST 2.5 Tab Headers

PCB Connectors that meets RAST 2.5 Standard

PCB connectors that meet RAST 2.5 standard with vertical through hole technology, available with tin or silver plating, external or internal locking.  TE’s PCB connectors that meet RAST standard come with a broad range of options and comply with most industrial and appliances safety standards, including UL94-V0, IEC 60335-1 (GWT 750°C), as well as certificates of conformity by UL, VDE and CQC. These product additions offer a more optimized product portfolio and more flexible solutions, and are particularly ideal for wire-to-board connections and control-units of major appliances and other applications. Both models also offer choices of tin or silver plating, several different colors and various configurations of keying for customization needs to save cost. The 2.5 mm-pitch PCB connectors that meet RAST 2.5 standard are available in 3 to15 positions, 1 footprint layout and external and internal locking types.

Key Features

  • Designed to the RAST 2.5 Standard
  • Tin / Silver plating
  • 3-15 positions
  • Available in multiple colors
  • Internal and external locking
  • UL/VDE/CQC approval
  • Meets UL 94 V0 & GWT 750°C w/o flame
  • Fully loaded and selectively loaded options

Applications

  • Front-loading washing machine
  • Dishwasher
  • Microwave oven
  • Refrigerator
RAST 2.5 Tab Headers

RAST 2.5 Tab Headers

PCB Connectors that meets RAST 2.5 Standard

PCB connectors that meet RAST 2.5 standard with vertical through hole technology, available with tin or silver plating, external or internal locking.  TE’s PCB connectors that meet RAST standard come with a broad range of options and comply with most industrial and appliances safety standards, including UL94-V0, IEC 60335-1 (GWT 750°C), as well as certificates of conformity by UL, VDE and CQC. These product additions offer a more optimized product portfolio and more flexible solutions, and are particularly ideal for wire-to-board connections and control-units of major appliances and other applications. Both models also offer choices of tin or silver plating, several different colors and various configurations of keying for customization needs to save cost. The 2.5 mm-pitch PCB connectors that meet RAST 2.5 standard are available in 3 to15 positions, 1 footprint layout and external and internal locking types.

Key Features

  • Designed to the RAST 2.5 Standard
  • Tin / Silver plating
  • 3-15 positions
  • Available in multiple colors
  • Internal and external locking
  • UL/VDE/CQC approval
  • Meets UL 94 V0 & GWT 750°C w/o flame
  • Fully loaded and selectively loaded options

Applications

  • Front-loading washing machine
  • Dishwasher
  • Microwave oven
  • Refrigerator
1-1971817-4 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 4
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 12.6
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 225
3-1971817-4 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 4
  • Number of Rows 1
  • Position Keyed B,C,D
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Mating Alignment Type Keyed
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 12.6
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 225
1-1971818-1 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 11
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Tail Length 2.9
  • Length 30.1
  • Height 15.5
  • Operating Temperature Range -40 – 125
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 90
1-1971817-0 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 10
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 27.6
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 105
1-1971817-3 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 3
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 10.1
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 270
1-1971817-6 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 6
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 17.6
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 165
1-1971817-7 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 7
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 20.1
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 135
1-1971817-8 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 8
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 22.6
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 120
1-1971837-3 Wire-to-Board Headers & Receptacles
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 3
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Mating Area Plating Material Silver
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • PCB Contact Termination Area Plating Material Finish Matte
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Silver
  • PCB Mounting Style Through Hole
  • Mating Retention With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Centerline (Pitch) 2.5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 10.1
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Carton
  • Packaging Quantity 270
1-1971921-3 Wire-to-Board Headers & Receptacles  1
RAST
  • Connector Assembly Type PCB Mount Header
  • Connector System Wire-to-Board
  • Header Type Shrouded
  • Sealable No
  • Connector & Contact Terminates To Printed Circuit Board
  • Row-to-Row Spacing 3.75
  • Product Type Connector
  • Connector Type Connector Assembly
  • PCB Mount Orientation Vertical
  • Number of Positions 3
  • Number of Rows 1
  • Backwall/Post Interruptions Without
  • Preloaded Yes
  • Operating Voltage 250
  • Contact Base Material Copper Alloy
  • Contact Shape Square
  • Contact Mating Area Plating Material Tin
  • Contact Mating Area Plating Material Finish Tin
  • Contact Type Tab
  • Contact Current Rating (Max) 6
  • Contact Style Straight
  • PCB Contact Termination Area Plating Thickness 3.8
  • Contact Layout Inline
  • Contact Transmits (Typical) Signal (Data)
  • PCB Contact Termination Area Plating Material Tin
  • PCB Mounting Style Through Hole
  • PCB Mount Alignment With
  • Mating Retention With
  • PCB Mount Retention Without
  • PCB Mount Alignment Type Locating Posts
  • Mating Alignment With
  • Mating Retention Type Latch
  • Contact Retention Without
  • Mating Alignment Type Keyed
  • Centerline (Pitch) 5
  • Housing Color Natural
  • Housing Material Nylon
  • Height 15.5
  • Tail Length 2.9
  • Length 10.1
  • Operating Temperature Range -40 – 120
  • For Use With Connector/Cable Assembly
  • UL Flammability Rating UL 94V-0
  • Packaging Method Loose Piece
  • Packaging Quantity 270
