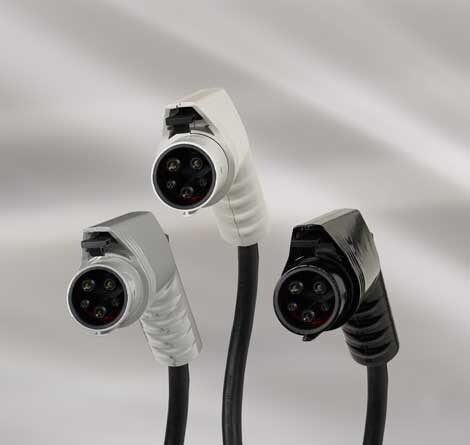

DiBO EV Cable Assemblies for Type 1 connections with ergonomic design for secure connections and maximum mating cycles

TE Connectivity redesigned it's EV Charging Cable Assemblies for Type 1 with an ergonomical design handle to fit security enclosures.  The EV charging cable assemblies offer high mating cycles, magnetically operated solid state switches versus a mechanical switch allowing for an increased life expectency and TE Madision Cable high flex cable for maximum flex life. Contact assemblies are sealed with a liquid silicon rubber to prevent against corrosion and moisture inside the connector body. Designed with the end user in mind, materials provide a crush-resistant connectdor body meeting outdoor classification F1 (UL) with resistance to common automotive fluids. Product meets the SAE J1772 specifications, is UL Recognized per UL 2251 and RoHS compliant.

Features

  • Improved housing design
  • Housing seal for each contact
  • TPA contact retention
  • Integrated cable clamp, exceeds SAE J1772
  • Internal cable strain relief
  • Latch, inlet lock capable
  • Materials are resistant to UV (F1)

Benefits

  • Individual contact seals prevent moisture and potential corrosion of the crimping zone
  • Increased lifetime with magnetically operated solid-state switch
  • Latch, Inlet lock capable wide enough to meet the SAE spec for inlet locking
  • TE Madison Cable high flex cable designed to provide maximum flex life

Standards and Specifications

  • SAE 1772 Compliant
  • UL Recognized Per UL 2251
  • RoHS Compliant

Materials

  • Contacts: Brass (500 Mpa Stress)
  • Housing: UL 94V-0 rated thermoplastic
  • Materials are rated UV exporsure performance SAE and are resistant to common automotive fluids
  • 3 + 2 positions for 1-Phase charging

Electrical Specifications

  • 32 A, 600 Volts

Mechanical Specifications

  • Housing seal for each contact (Liquid Silicon Rubber)
  • TPA Contact Retention
  • 10,000 mating cycles
  • 3 color options (white, black, and gray)
  • Customized colors (min. volume required)

Environmental

  • IP protection when plugged in: IP44
  • IP protection when un-plugged: IP66

Cable Information

  • 10 AWG, operating temperature 105° C
